Automatic Drilling Machine for Stainless Steel with Oil Pressure

Product Description

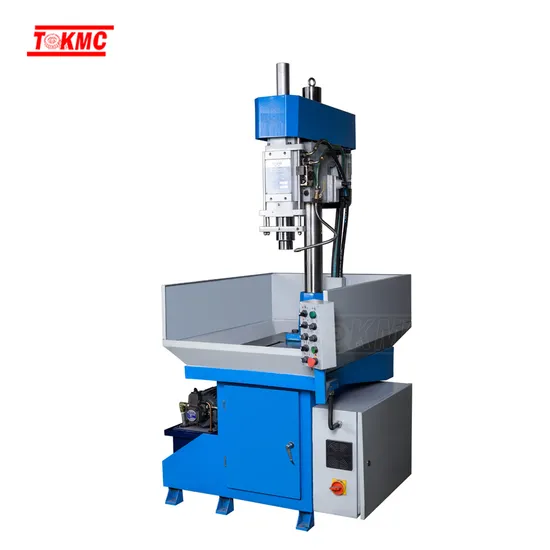

Auto drilling machine for stainless steel with oil pressure

Model	OD-35
Max.Drilling capacity	35mm
Diameter of column	95mm
Spindle travel	140mm
Distance spindle axis to column line	282.5mm
Max.distance spindle nose to table	/
Max.distance spindle nose to base	700mm
Spindle taper	MT4 or ER40
Spindle speeds range	Customer specified
Work pressure	20-35kgf/
Dismension of base	690 x 500 mm
Over height	1165mm
Main motor	2.2KW
Coolant motor	40W
G.W/N.W	630/600kg
packing dimension	152 x 112 x 230cm

Feature :
-Spindle system:the spindle head is driven by oil pressure,which helps to smooth the feeding,the current contorl valve,which is very easy to handle,may help to adjust the feeding rate.Various -spindle heads and tapping heads are available upon request.
-Oil hydraulic system:due to the vane pump with wariable capacity,it's with low noise an low heat,and runs smoothly.the high current electromagnetic valve ensures its stable and smooth running
-Electrical system:the main electric elements are telemecanique(a french brand) elements,made per international uniform standard,its compatibility and exchangeability are very high,the PLC is applied to the multi-spindle system,with which it is of low failure,easy maintenance and changeability
-Various drilling heads and tapping heads are available upon request
Various air clamps,oil pressure clamps,air cylinders and oil cylinders are available upon request
The spindle speed is adjustable and specific designs for air and oil pressure clamps ar available upon actual request

---
