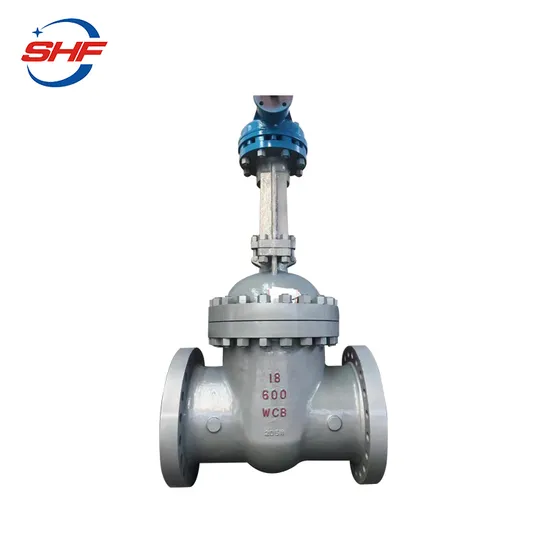

API600 Industrial Worm Gear Operated Flange OS and Y Wedge A216 Wcb Gate Valve with Prices

US$850.00 1 Piece (MOQ)

Basic Info.

Model NO.

Z341H

Type

Straight-through

Material

Wcb, Wc6, CF8, CF8m, CF3, CF3m;4A, 5A

Connection Form

Flanged, Welded, Threaded

Pressure

150lb-2500lb;Pn10-Pn630

Actuator

Gear Operation

Seal Surface

Wedge Gate Valve

Thread Position of Valve Rod

Outside Gate Valve

Usage

Flow Control

Standard

API 600, API 6D, Amse 16.34; BS1414, DIN3352

Stem Structure

Outside Screw and Yoke (OS&Y)

Sealing Material

13cr, SS304, SS316, Stl, Monel, Bronze, etc

Seat

Replaceable Seat

Wedge

Solid Wedge or Flexible Wedge

Valve Bonnet

Bolted Bonnet, Welded Bonnet, Psb

Pre-Temp. Rating

ASME B16.34

Special

Nace Mr-0175

Valve Test Standard

API 598

Company Certificate

API6d/CE/ISO9001/ISO14001

Valve Test

100% Quantity Tested Before Delivery

Test Certificate

En1024 3.1 Certificate, Provide Rt, Mt, PT, Ut

Painting

Silver Grey, Blue, White, etc

Our Parterner

Pdvsa, Bp, Sinopec Group, Hitachi etc

Supplier

Factory Direct

Valve Guarantee

18 Months

Transport Package

Plywood Wooden Case

Specification

1/2"-48"; Class 150-2500LB

Trademark

SHF & OEM

Origin

Jingshu, China

HS Code

8481804090

Production Capacity

5000000

Packaging & Delivery

Package Size

120.00cm * 110.00cm * 120.00cm

Package Gross Weight

308.000kg

Product Description

Construction is as follows

Name	API 600 GATE VALVE
Size	1/2"~48"; DN15~DN1200
Normal pressure	Class 150/300/600/900/1500/2500; PN16/PN40/PN64/PN100/PN160/PN250
Design standard	API 600, API 6D,AMSE 16.34; BS1414,DIN3352, EN10434
Marked	MSS SP-25
End flange	ANSI B 16.5,ASME B16.47; EN1092,DIN2543~DIN2547,AS2129
Face to Face	ANSI B 16.10,API 6D; DIN3202,EN558-1,EN12982,ISO 5752
Test standard	API598,API 6D; DIN3230, EN12266, ISO 5208
Suitable temperature	-29~425°C
Medium	Fresh water, sewage, sea water, air, vapor, food, medicine, oils, alkalis, salt etc.
Acidic environment	NACE MR0175
Operation	Handwheel Operated,Gear Operated, Electrical Actuated

Structure

- Full Port or Standard Port

- Bolted Bonnet / Pressure Sealed Bonnet / Welded Bonnet

- Outside Screw and Yoke(OS&Y)

-Clockwise closing direction

- Solid or Flexible Wedge Gate

- Renewable Seat

- Threaded or welded seat ring

- Backseat

- Design:API 600, API 6D,DIN,JIS,ANSI,BS,GB

- Butt Weld Ends to ASME B16.25; DIN 3239,EN12627

- Flanged Ends to ASME B16.5;EN1092

- Body material: Cast or Forged Carbon Steel, Stainless Steel, Duplex Steel

Main Part & Materials

Part Names	Part Materials
Body	WCB	LCB	WC6	CF8	CF8M	CF3	CF3M	CE8MN/CD4McN
Bonnet	WCB	LCB	WC6	CF8	CF8M	CF3	CF3M	CE8MN/CD4McN
Yoke	WCB	LCB	WC6	CF8	CF8M	CF3	CF3M	CE8MN/CD4McN
Wedge	WCB	LCB	WC6	CF8	CF8M	CF3	CF3M	CE8MN/CD4McN
Stem	F6a	F304	F6a	F304	F316	F304L	F316L	CE8MN/CD4McN
Gland	F6a	F304	F6a	F304	F316	F304L	F316L	A182 F51/F53
Seat/Seat Ring	A105+STL	SS304	F11+STL	SS304	SS316	SS304L	SS316L	CE8MN/CD4McN
Packing	Graphite/PTFE
Bonnet Gasket	SS304+Graphite/SS316+Graphite
Bolts/Nuts	B7/2H	L7/4	B16/4	B8/8	B8M/8M	B8/8	B8M/8M	B8M/8M
Suitable Medium	W.O.G etc.			HNO3, CH3OOH etc.				Urea etc.
Suitable Temperature	-29~425 °C	-46~340 °C	-29~538 °C	-196~427 °C	-196~427 °C	-196~427 °C	-196~427 °C	-29~315 °C

Product Size
Product display
Company Introduction
FAQ Q:Why choose us ? A: we are a manufacturer, we have manufactured valve for over 20 years . B. We have our own casting foundary in a large scale Q. what is your payment term? A: T/T , L/C or other acceptable payment. Q:Can we print our logo on your products? A: yes, we offer OEM/ODM service, we support the customized logo, size, package,etc. Q: what is your main market? A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe Q: Can I get samples from your factory? A: Yes, Samples can be provided. Q: If products have some quality problem, how would you deal with? A: We will responsible for all the quality problems. Q:How about your capacity? A:We have 300staffs,own 50 CNC machines,and five persons in charge of quality inspection and 5 engineers. Our 6 casting block workshops
can both ensure on time delivery and quality that last.
