| US$2,200.00-6,500.00 | 1 Piece (MOQ) |

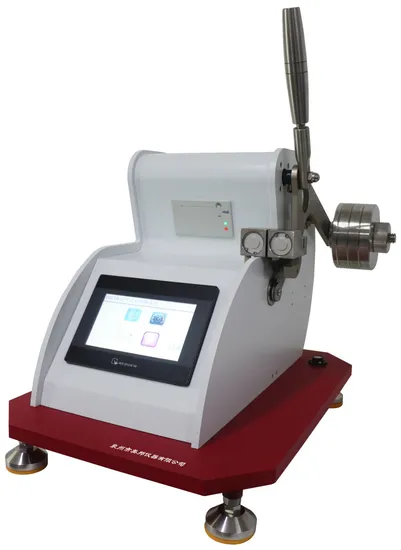

| Digital Fabric Tear Tester | |||||
| Model | YG033A | YG033B | YG033E | MB033G | |
| Picture | |||||
| Application | This instruments is designed for tearing resistance of textile, non-woven fabric, paper, paper board, thin film, ventilation tape, metal sheet material and etc. | ||||
| Standards | GB/T 3917.1, ASTM D 1424,DIN 53862,ISO 13937-1,ISO 4674-2,ISO 9290 GB/T11999, ASTM D1922, ISO6383-2, JIS K7128-2 GB/T455, APPITA P400, ASTM D689, BS 4468,, DIN 53128, EN 21974,ISO 1974, JIS P8116, PAPTAC D9, SCAN P11, SNV 198482, TAPPI T414, UNI 644 | ||||
| Feature | Manipulation | LCD display | Color touch screen | Color touch screen | Color touch screen |
| Test unit | N,gf,cN,kgf,mNlbf | ||||
| Sample fixture | Manual | Pneumatic | pneumatic | Pneumatic | |
| Pendulum release | Manual | Automatic | Automatic | Automatic | |
| Communication method | Professional computer analysis software that can store data on a computer | ||||
| Specimen notch | Manual | Pneumatic | Pneumatic | Pneumatic | |
| Correction function | - | - | Pendulum friction damping automatic correction function | Pendulum friction damping automatic correction function | |
| Change range | Manual | Manual | Manual | automatic | |
| Automatic reset of pendulum | N | N | N | Y | |
| Specification | Standard weight | 16N,32N,64N | 16N,32N,64N | 16N,32N,48,64N,80N,96N,112N,128N | 16N,32N,64N,128N,196N,256N,300N |
| Test accuracy | ≤±1%F·S | ≤±0.2%F·S | ≤±0.2%F·S | ≤±0.2%F·S | |
| Tear length | 43mm | ||||
| Incision length | 20±0.2mm | ||||
| Sample size | 100×63mm | ||||
| Air pump | N | Air pump required | |||
| Power | AC220V 50Hz 20W | AC220V 50Hz 100W | AC220V 50Hz 100W | AC220V 50Hz 200W | |
