manufacturer of 11mm Fiberglass duct rodder/ Fiberglass Rodding Cane

Product Description

Product Description
Product Description
manufacturer of 11mm Fiberglass duct rodder/ Fiberglass Rodding Cane
Fiberglass duct rodder also called fiber snake duct rodder, is an auxiliary tool applied in construction wiring, electric wiring
and pipeline dredge, its surface is hard and smooth, so it can get through different kinds of pipes and channels very easily. It is widely used for the cables works or cleaning in cable pipe or channels.
Portable type Duct Rodder without Wheels
Rod Dia.: 4.5mm, 6mm, 8mm. Portable type, small and lighter, can be fit in any car.

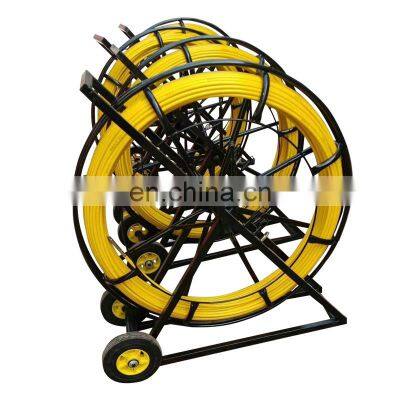

Fiberglass Duct Rodder with Wheels
Rod Dia.: 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm., Fiberglass duct rodder with durable wheels, which is more stable and
move convenient & quick.
Specification

Specification of Fiberglass duct rodder
Size	Rod diameter (mm)	φ4  φ4.5  φ6  φ7  φ8  φ9  φ10  φ11  φ12  φ13  φ14  φ15  φ16  φ18
		Rod Length (m)	10-500m
		Frame size (cm)	48*44*16; 64*50*17; 98*90*40; 100*111*45; 122*118*45;
Material	Fiberglass rod inner	Extruded by fiber glass and high strength resin at high temperature
		Fiber glass rod outer	High Density polyethylene coating
		Metal Frame	Steel with high-temperature sprayed plastic or hot dip galvanized
Physical Property	Fiber glass content	75-80%
		Density	> 1.9gr/cm3
		Working environment	-40° C to +80° C
		Minimum Pulling strength	4000N +/-5%
		Consistency of rod	137gr/m
		Flexural Modulus	> 46.500Mpa
		Elongation at break	2.5-3%
		Min Bending Radius	388mm

Details Images
Product Features
* Brand New and high quality
* Ideal tool for pulling guide rope in the pipeline
* Made of fiberglass material, non-conductive,rust and corrosion resistance,superior pulling strength
* Solid tubular steel reel with adjustable hand brake
* Hand-held bracket, easy carry /move, it very portable
* Welded with high-quality steel, sturdy and durable, with good compression resistance capacity * Perfect for using in telecom,
electrical, wall and floor conduit, walker duct and utility installation
