Grfp (Glassfiber Reinforced Plastic) Solid Polywood Panel for Interior Wall

Product Description

1. Product Introduction
Basic Information:

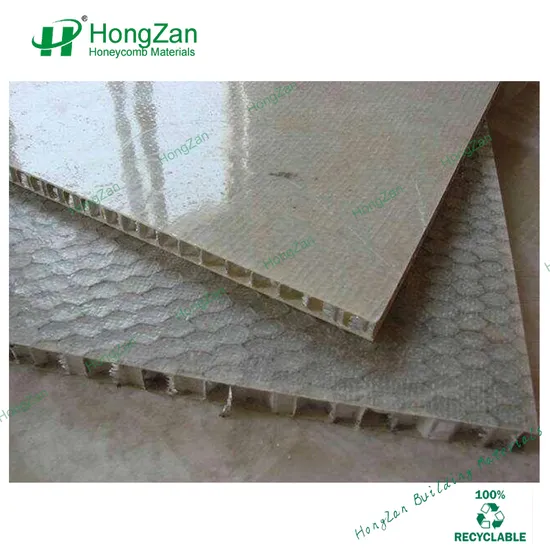

Fiber Reinforced Polymer/Plastic (FRP / GRP) composite material is a high performance material which is made of fiber and matrix materials (resin) and mixed with certain proportion. The structure of FRP Honeycomb Panel is FRP / GRP sheet as outer surface, PP plastic honeycomb panel / aluminum honeycomb core / PU foam / plywood as core.
Specification:

Fiberglass Type	Woven FRP or Machine-made FRP
Coposited Material	PP core, aluminum honeycomb core, plywood, XPS, PU foam, etc.
Thickness of Fiberglass sheet	0.8-3.0mm
Total thickness	13-102mm
Dimension	width: less than 3 meters, length: less than 16.5 meters
Color	RAL color, Pantone color, or Customized

Technical Data:
The technical data of Bright Surface FRP Plywood Panel and FRP Plastic Honeycomb Panel are as below.

* Bright Surface FRP Plywood Panel for Rigid Body
No.	Item		Data
1	Static strength Mpa≥	Along wood grain	90
		Cross wood grain	80
2	Elastic Modulus Mpa≥	Along wood grain	7000
		Cross wood grain	6000
3	Barcol hardness ≥		40
4	Impact strength KJ/m2		75
5	Edgewise compressive strength Mpa≥		24
6	Flatwise tension strength Kpa≥		1300

No.	Thickness of Panel (mm)	Weight (kg/m2)
1	15	12
2	18	14
3	21	16

*Bright Surface FRP Plastic Honeycomb Panel for Rigid Body
No.	Item		Data
1	Static strength Mpa≥		18
2	Elastic Modulus Mpa≥		1500
3	Barcol hardness ≥m2		40
4	Impact strength KJ/m2		50
5	Edgewise compressive strength Mpa≥		10
6	Flatwise tension strength Kpa≥		450
7	Flatwise compression strength Mpa≥		1.5

No.	Thickness of Panel (mm)	Weight (kg/m2)
1	15	7.5
2	18	8
3	21	8.5

Advantages:
For FRP Sandwich Panel / FRP with plastic core
1. High strength but HALF the weight of conventional FRP/GRP plywood sandwich panel
2.Outstanding and smooth appearance, aesthetically pleasing and ideal for sign writing
3. Remarkably easy to maintain and keep clean, quick to assemble
4. Will remain "white" year after year
5. UV and corrosion resistant
6. Long life
-------------
For FRP / GRP plywood sandwich panel
1. Bright and clean appearance
2. UV resistant - no yellowing after long term service
3. High strength and superior water resistance
4. Easily cleanable
5. Damage resistant and easy to repair
6. Easy to assemble
7. Corrosion resistant
8. Very long life
9. Excellent for application of signage and graphics
2. Application
FRP / GRP composite panels are widely used in rigid truck bodies, different kinds of medium and high-grade vans, stage show trucks, wing bodies, semi-trailers and other specialized vehicles etc.
1. Dry freight truck bodies
2. Prefabricated houses
3. Exterior walls of commercial buildings
4. Indoor swimming pool buildings
5. Toilets, shower partitions, etc.
3. Package Details
Hongzan will use standard export packages--wooden crate which will largely protect the products well during land/sea/air/train transportation. Customized package requirements are available.
4. Cerfiticates
Hongzan has obtained international recognized certificates and test reports for fiberglass honeycomb panel related to Fire rate, sound insulation, and so on, E.G.:
1), ISO 9001:2008;
2), A class fire rate by Lloyd's ( Marine Association) ;
3), BS 476 ,475 by TUV PSD Singapore;
4), EN13501-1 by ITS;
5), ASTM by ITS.
5. Contact Details
Victoria
Sales Representative of Foshan Hongzan Building Materials Co., Ltd

---
