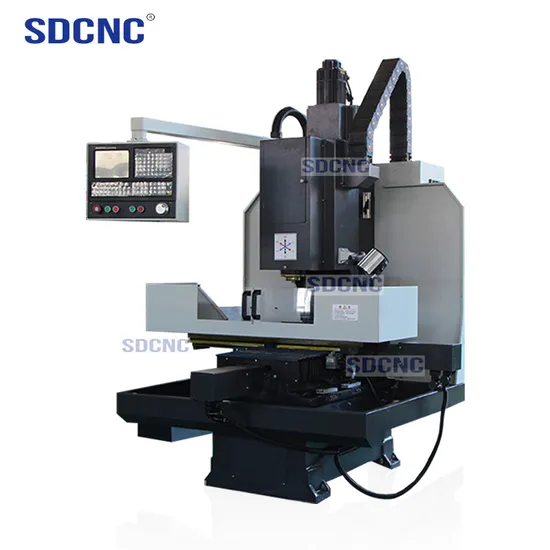

Xk7125 CNC Vertical Automated Milling Machine with Siemens Controller

Product Description

The vertical machining center can be applied to many fields such as mechanical processing and mould
manufacturing, can adapt from roughing to finishing processing requirements, has the characteristics of high
precision, high efficiency, is widely used in aerospace, mould, automobile, internal combustion engines, textile
machinery, chemical machinery processing, oil, electronics and other industries.
Product Parameters

Specification	Unit	XK7125A
Worktable size	mm	1270*254
T-slot	mm	3/16/65
Three axis travel (X/Y/Z)	mm	700*380*450
The distance from spindle nose to worktable	mm	60-510
Z axis torque	N.m	7
X axis torque	N.m	6
Y axis torque	N.m	6
Spindle taper		ISO40
X axis fast feeding	M/min	6
Y axis fast feeding	M/min	6
Z axis fast feeding	M/min	0.4
Stroke of spindle quill	mm	127
Spindle feeding automatical	Mm/rev	0-400
Spindle speed range	R/min	65-4500(16 steps speeds )
Positioning accuracy	mm	0.02
Repeat positioning accuracy	mm	0.01
Main motor	Hp	3(2.2 KW )
Machine size	mm	2000*900*2350
Machine net weight	Kg	1700

Standard Accessories:
1.Draw bar
2.Tool box and tools
3. Woeking lamp
4.Elector lubricating pump
5.Hung up control panel
6.Cooling system
7.Oil collecting plate
8.Plastic splashing guard

Optional Accessories:
1.Air draw bar
2.Machine vise
3.Universal clamping kits

---
