Automatic Disposable Bed Sheet Making Machine

Product Description

Product Description

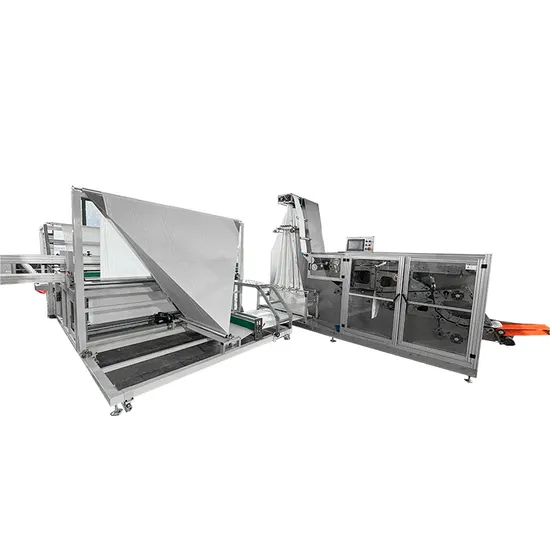

Disposable quilt non woven cover making machine
This machine we have a group machine ,disposable travel bedding set machine,including pillowcase cover+quilt cover+ disposable sheet.
Quilt cover machine running process: 2 rolls of raw material unwinding → longitudinal ultrasonic edge sealing on both sides (one side leaves a gap unsealed)→ transverse ultrasonic edge sealing → cutting and binding → longitudinal folding in half → longitudinal W-shape folding → transverse cutting → transverse folding in half for three consecutive times → finished product transportation. Product Parameters

Product size	100~230CM(width)×80-250CM(length)
Raw material	Fabric diameter≤80cm
Speed	16~20pcs/min
Installed power	About 15KW (Not including the ultrasonic)
Material tube	3 inch
Input power	380V;50Hz
Input air source	0.6mpa-0.8mpa.
Machine size	11×5×2.8
Row material size	Diameter φ:≤800mm Width≤2500mm

Detailed Photos

---
