Different Capacity Machine Making Gypsum Sheet Gypsum Sheets Machine

Product Description

Output	2million -30million sqm/year (based on thickness 9.5mm)
Fuel	coal; natural gas; diesel; heavy oil, etc
Technology	hot ai; heat transfer oil/thermal oil
Width	1200mm,1220mm
Thickness	6mm to 22mm
Length	1500mm-300mm
Raw material	Natural gypusm powder ,phosphorus gypsum powder,Desulfurized gypsum powde

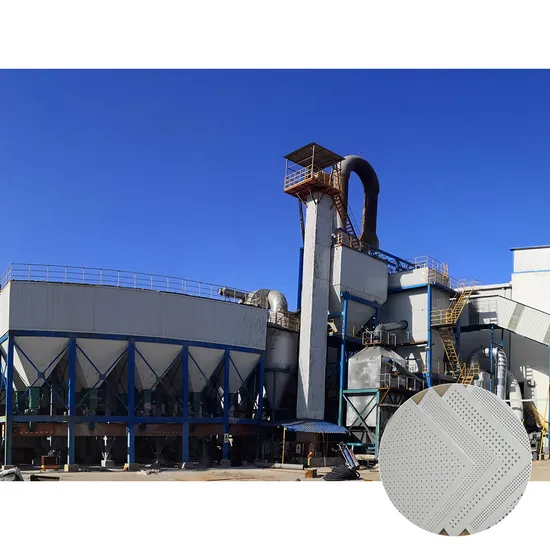

Factory view
Raw material request

Raw materials	Item	Specification
Calcined gypsum powder	Fineness	0.2mm,<10% 0.2mm,Remnant<10%
	Initial set time	3.5-5.5 3.5-5.5 minutes
	Final set time	7.5-10.5 7.5-10.5 minutes
	Crystal water	4.5%-5%
	Half-water gypsum powder	>65%
	(2) Bending strength (2 hours)	1.8 Mpa
Paper	Weight	190-220g/
	Thickness	0.36-0.4mm
	Air permeability	0.85-1.6μm/pas
	(Cobb) Water absorption( Cobb )	15-30g/
	Tensile strength	12.5 KN/m,3.5 KN/m Portrait 12.5 KN/m, transverse 3.5 KN/m
	Transverse expansion and contraction	<2%
	Moisture	10%±2
Denaturized starch	Content of the starch	>70%
	Moisture	11%-13%
	PH	6.5-7.5
	Protein	<0.3%
	20ºC-40ºC Solubility in 20ºC-40ºC water	73%-78%
Foaming agent	Condensate	>30%
	Ligarine	<3%
	Inorganic salts	>2.5%
	PH	7-9
water Water	PH	6.5-7.5

Machinery introduce Dosing System
Application :used to dose and mix suitable of raw material to get the gypsum powder slurry.
Feature :
1.About raw material feeding system , we can equip for you wet raw material feeding and dry raw material feeding system to meet your demind .
2.About the mixer : we used the dawel pin type ,which is similar to German technology
Paper supply system
Application :Supply paper to the gypsum board
Composition:The paper roll lifting machine, uncoiling device, pneumatic paper receiving machine, paper storing machine, paper pulling machine, paper guiding machine, scoring machine and automatic correction machine. Forming and solidification system
Application :to form the semi-gypsum board from gypsum powder slurry , we have special design on the forming belt which can guarantee the board is very straight .
Automatic cutting system
Application: automatic cut the solidified gypsum board to setted size ,Dual servo cutting machine , more accurate ,and reduce board waste.
Transit System
Application:used to horizontally transport the cutted board to the distributor, other unqualified board will be send out of the production line
Distribution System
Application :used to transport wet gypsum board to each layer of the drying machine with the control of PLC Drying system
Application :Used to dry the forming board .For big capacity ,we adopt the hot air circulation, drying room temperature is uniform, the board has high strength and is not fragile. This part we can design according to client requirement

Labor requirements

System	Workers needed
Dosing.mixing material system	2/ 1workers/shift
PLC control	1/ 1workers/shift
Forming system	1/ 1 worker/shift
#2 #1Horizontal conveying system	1/ 1 worker/shift
Drying system	1/ 1 worker/shift
Boiler heating system	2/ 1 worker/shift
Substitute person	1 1 worker
\ Monitor\ forklift	2/ 2 worker/shift
Package	3-5 3-5 worker
Total	13-15/ 13-15workers/shift

If you have any questiones, Mary here service for you.

---
