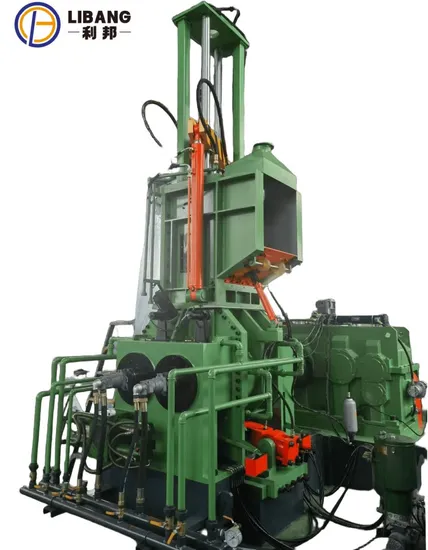

80L Rubber Mixing Banbury Machine / Rubber Banbury Mixer China Manufacturer

Product Description

Product Description
Hydraulic Kneading/Kneader Mixer Machine, Rubber Material Banbury Mixing machine 1-1. Basic introduction of Rubber banbury mixer, Banbury kneader mixing machine with automatic banbury feeding system1-2. Features of Hydraulic kneading/kneader mixer machine, Rubber material kneader mixing machine1. Rubber Banbury Mixing Machine rotor is coated with hard chromium alloy, quenching treatment and polished
2. Mixing chamber consists of W-shape body welded with high quality steel plates and two pieces of side plates. The chamber, rotors and piston ram are all jacketed structure for the ingoing of steam, oil and water for heating and cooling to suit the various requirement for the process of mixing and plastication.
3.Rubber Kneader mixer Machine Motor, reducer adopts hardened tooth surface gear, which has very low noise and can save 20% electricity or power and has a long service life - 20 years.
4. PLC control system adopts Siemens or Omron. Electric parts adopt China top Brand or Siemens brand customized.
5. Hydraulic pressure tilting mechanism with the advantage of fast discharging materials and 140 tilt angle.
6. Chamber is well-sealed by the arc-shaped-plate-groove labyrinth type structure and the shaft end of rotor adopts contact type non-lubricating with spring tightening structure.
7. Temperature is controlled and adjustable by electric control system.
8. Pneumatic system can protect the motor from being damaged due to the overloading of chamber.
9. All of our machines are one-three years warranty. We provide best after-sale service like on line training, technical assistance, commissioning and annual maintenance.
Product Parameters

Model	X(S)M -50	X(S)M -80	X(S)M -90	X(S)M -110	XM -160	XM -250	XM- 270
Total volume Shearing rotor	50 2-wings	80 2-wings	90 2-wings	110 2-wings	147 4-wings	253 2-wings	250 4-wings
Working volume	37.5	60	67.5	82.5	110	140	188
Speed of rear rotor(r/min)	40	40	40	40	4-40	20(F rotor)	4-40 (6-60)
Speed ratio of rotors	1:1.15	1:1.15	1:1.15	1:1.15	1:1.16	1:1.16	1:1.17 or 1:1
Pressure of compressed air (MPa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Consumption of compressed air(m3/h)	80	100	100	230	300	120	hydraulic piston
Pressure of cooling water(MPa)	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4	0.3-0.4
Consumption of cooling water(m3/h)	15	25	25	35	45	23	100
Driving motor power	90(110)	220	220	250 (280)	500	250	1250 (1500)
Overall size(L*W*H) mm	5560 *2510 *3200	5800 *2560 *4200	5800 *2560 *4200	6620 *2850 *4400	8000 *3300 *5260	7100 *3905 *4953	8700 *4320 *6160
Around weight	14 tons	22 tons	22 tons	26 tons	36 tons	35 tons	50 tons

It consists of a "W" shape body and two side boards made of high quality steel plates by means of extrusion forming and welding, which are jacked to take the flow of cooling water or steam. It is plated with hard chrome on its internal walls.Thermal Resistance:There is a plug-in thermal resistance in middle section of the bottom of the chamber to be connected to electrical system to inspect and display the temperate.Rotors:It is designed to the hollow blades of Banbury type. The hollows are connected with axial hole of rotor shaft used as cooling or heating passage. The top edges of blades and the end faces of ~ rotor shaft are surface welded with cobalt-base hard alloy and grinding, then plating with hard chrome and polishing.Cooling/heating system:A common piping system is adopted for either cooling or heating material in mixing operation. Through the system cooling water or steam is fed in three ways to the cavities of the rotors blades, the mixing chamber and the top ram.Tilting mechanism:It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear, etc...It is able to actuate the mixing chamber tilting by 140° Around the front rotors.Dust sealing device:At the joint between the top of the mixing chamber and the cantilevered arm of the machine frame, the dust sealing assemblies with curved slotted partings are used obtaining an excellent and reliable sealing purpose.The end face of the rotor is sealed by end contact sealing with nor oil-lubrication and is seals well and is wear-resistant and durable.Main driving system:The part is made up with main motor, reducer, connecting gears. It realizes odd-speed rotation of the rotors with running face one other.Pneumatic control system:Pneumatic control system is controlled by XG order. The bi-directional air cylinder makes the ram up or down. In case the over load occurs in the mixing chamber, the top ram can be raised automatically or manually if necessary, so as to protect motor from overload.Electric control system:Imported PLC device and electric control components which are all imported products or imported technology products are adopted in the electric control system as to raise control reliability.
Customers Feeback
More Products
Our Main Products:
Rubber mixing equipment: Bale cutter, Kneader, Bucket elevator, Mixing mill Rubber vulcanizing machine: Four-column press, Frame press, Tire & tube press,etc Automatic & Semi-automatic waste tire recycling machine Rubber calender machine: 3 roll & 4 roll calender Rubber extruding machine: cold feed extruder & hot feed extruder Reclaimed rubber production line: Dynamic devulcanizer, Cracker mill, Rubber refiner,et
Company Profile Qingdao Libang Industry Products Co.,Ltd is a professional provider of rubber machine.
Our products mainly include kneader, banbury mixer, mixing mill, refiner, calender, extruder, batch off cooler, plate curing press, microwave curing machine, cracker mill, skiving machine, extruder, tire reclaimed rubber machines, butyl reclaimed rubber machines, EPDM reclaimed rubber machines, rubber powder machines, and so on. We enjoy good reputation with reasonable price, best quality and good delivery. And we sincerely welcome clients from home and abroad to establish long and steady business relations and develop domestic and international market jointly on the base of equality and mutual benefit.
Packaging & Shipping
FAQ Q: Are you manufacturer or trade company?A: We are really 100% manufacturer.Q: How many year's experience does your company have?A: More than 20 years of concentration, we mastered several key technologies.Q: What product can you supply?A: Rubber press machine, Vacuum molding press machine, Injection Molding machine, Rubber mixer machine, calender machine, extruder machine and rubber product equipment solvtions.Q: What are the operating modes of the machine?A: With manual and semi-automatic operation mode.Q: What control system does the machine use?A: We use PLC as the core of control system, we ususlly usee Omron PLC.Q: How long is the warranty of your machinery?A: Our warranty is one year.Q: How long is the delivery time?A: Usually we need 40-60 days , if ther id inventory , we can finish the modification within one month, but it may take longer if ther are special requiements.

---
