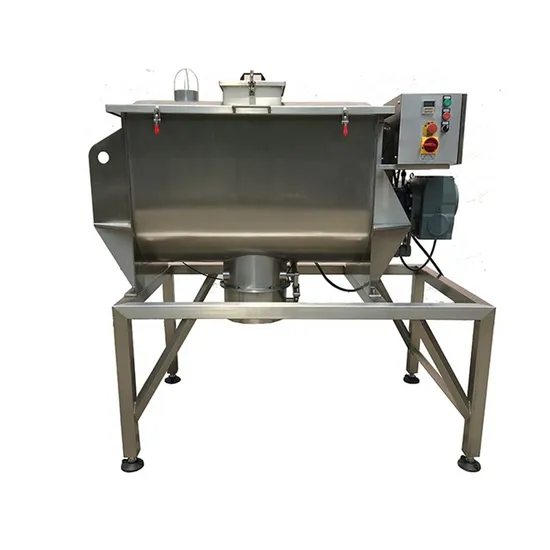

Liquid Spray Double Ribbon Powder Mixing Machine

Product Description

Liquid spray double ribbon powder mixing machine
Paddle Blender, Paddle Mixer, Granule Blender , Granule Mixer
onion Tiger Nut powder paddle mixer
Betel kola Soap nut powder paddle mixer /ribbion mixer
Natron powder Garam tea powder Paddle mixer
Coco currie Pepper Powder paddle mixer
ash powder corn starch paddle mixer

Indroduce
TDW non gravity mixer is called double-shaft paddle mixer too, it is widely applied in mixing powder and powder, granule and granule, granule and powder and a bit liquid. It is used for food, chemical, pesticide, feeding stuff and battery etc. It is high precision mixing equipment and adapts to mix different sizes of materials with different specific gravity, different proportioning . The mixing effect is very good for which ratio reaches 1:1000~10000 or more. After adding crushing device, the mixer could partially break granular materials
Feature
1 High active :Rotate reversely and throw materials to different angles,mixing time 1-3min
2 High uniformity:Compact design and rotated shafts be filled with hopper, mixing uniformity up to 99%
3 Low residue:Only 2-5mm gap between shafts and wall, open-type discharging hole
4 Zero leakage: Patent design and ensure the rotating axle & discharing hole w/o leakage
5 Full clean:Full weld and polishing process for mixing hopper, w/o any fastening piece like screw,nut.
6 Nice profile: the whole machine is made by 100% stainless steel to make its profile elegant except bearing seat

Model	TDW-300	TDW-500	TDW-1000	TDW-1500	TDW-2000	TDL-3000
Effective Volume	300L	500L	1000L	1500L	2000L	3000L
Fully Volume	420	650	1350	2000	2600	3800
Loading factor	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Turning Speed	53rpm	53rpm	45rpm	45rpm	39rpm	39rpm
Total Weight	660kg	900kg	1380kg	1850kg	2350kg	2900kg
Total Power	5.5kw	7.5kw	11kw	15kw	18.5kw	22kw
Length(L)	1750	1880	2250	2470	2550	2800
Width(W)	1150	1180	1470	1660	1780	1980
Height(H)	1280	1350	1600	1800	1860	1980
Radius(R)	277	307	377	450	485	534
Power Supply	3P AC208-415V 50/60Hz
