TBTWDW-300JC ASTM EUTM Tensile Tester Computer Control Electronic Universal Testing Machine

US$25,000.00

1 Set

US$3,900.00

2+ Sets

Basic Info.

Model NO.

TBTWDW-50JC

Maxcapacity

<1000KN

Accuracy Grade

Load Way

Electronic Load

Loading Method

Dynamic Load

Display

Digital

Control

Computer Control

Weight

100-500Kg

Power Source

AC220V

Oil Cylinder Position

Under

Accuracy

Grade 1

Relative Error

≤±1.0%

Resolution

0.5‰ of Max. Capacity

Platen Safety Device

Digital Spacing Safety Device

Overloading Security

Over 10% of Max. Capacity (100kn), The Machine Wil

Printer

A4 Monochrome Laser Printer

Frequency Converter

Yaskawa Frequency Converter

Transport Package

Standard Export Packing

Origin

Nanjing, China

HS Code

90158790

Product Description

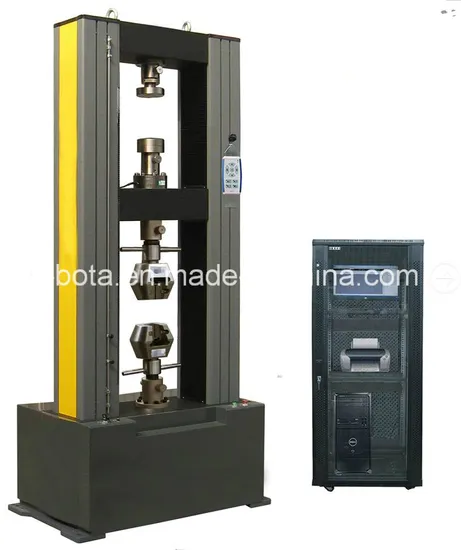

Computer Control Electronic Universal Testing Machine
Model:TBTWDW-300JC
1. Application & Features Mainly used to perform tension, compression, bending and other mechanical property indexes for metallic, nonmetallic and composites; Adopting precise auto control and data acquisition system to realize fully digital adjustment for data acquisition and control process; Used to test max. load, tensile strength, compression strength, elongation and other technical indexes; After test, all these indexes can be automatically calculated according to test parameters before test through computer and display test results. All test parameters can be both inquired and printed. Features with remote control box to adjust moving speed of the cross beam, flexibly; with function of automatic return to the original position, intelligent, high efficient, quick; with protective functions of limit position protection and over voltage, over current protection, reliable, safe; with powerful test database, in which test data can be saved, inquired and called; with many control modes of constant rate control to load, stress, deformation, strain, stroke, elongation, low cycle and self-programming control; switching function among many test curves: stress-strain, load-deformation, load-displacement, load-time, deformation-time, displacement-time, load-strain. With functions of partial enlargement, superposition and comparison. If equipped with other accessories, it can perform tensile, compression, bending, torsion and other mechanical property tests; Main machine Using door frame structure, baking finish shell, with nice appearance; limit position protection function over current protection function safe emergency stop function 2. Technical Specification

No.	Items	Technical Specification
1	Max. Test force	300KN
2	Load class	Class 0.5
3	Measuring range of load	0.4%-100%
4	Relative error of indicating value	Within ±1.0%
5	Load resolution	1/±300000F.S (with unchanged resolution during the whole test)
6	Measuring range of deformation	0.2%-100%
7	Adjusting range of load rate	0.005%-5%FS/S
8	Control precision of load rate	Within ±1%
9	Adjusting range of deformation rate	0.005-5%FS/S
10	Control precision of deformation rate	Within ±1%
11	Adjusting range of displacement rate	0.001-600mm/min
12	Control precision of displacement rate	Within ±0.2% of the set value
13	Stroke of cross head(without grips)	1200mm
14	Effective test span	610mm
16	Control mode	Computer control
17	Power supply	380V, 50Hz
18	Power	5.0kW
19	Dimension (LWH)	10507502450mm
20	Weight	Approx.1600kg

3. Main Configuration

No.	Content	Qty.
1	Load frame Aluminium alloy cover with streamline design High intensity testing machine structure and crosshead, high stiffness to assure accuracy	1set
2	AC Servo speed adjusting motor and driver Estun	1set
3	Load Cell Capacity: 300 KN Brand: American Celtron	1pc.
4	Wedge tensile test attachment Wedge gripper Jaws for round specimen:Ф9-14mm, Ф14-20mm Jaws for flat specimen: 7-14mm, 14-21mm	1set 1set 1set
5	Compression test attachment Round pressure platen: Diameter Ф150mm	1set
6	Test software	1set
7	Attached tools	1set

Detailed Photos
