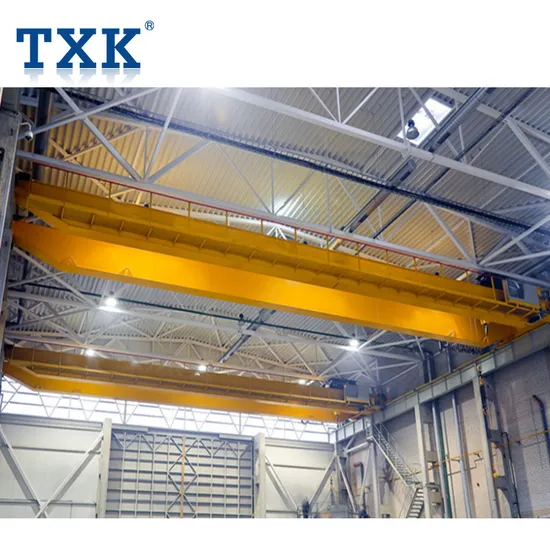

10-32 Ton Lifting Equipment Double Beam Overhead Bridge Crane

Product Description

Product Description LD-A type electric single-beam overhead crane is a monorail travelling crane with CD1 and MD1 electric hoist. It can be used in machine manufaturing, assemble and install and storehouse. The capacity is 1-20T, span is 7.5m-22.5m, working condition temperature is -20~40. It is made of electric hoist, metal structure bridge, crane travelling mechanism and electrical control system. This production has ground control, cab control and radio control to facilitate the consumer. Cab have two types, they are end and side door type and open&closed type.
Product Parameters
The girder is U-shaped channel which be made of steel plate, then welded into box-shaped with I-beam. The crossbeam is also U-shaped channel, then welded into box-shaped crossbeam. The primary-side beam use the split-type structure, jonted by bolt, which is convenient for transportation and installation. The up, down and lateral movement of this machine is achieved by the electric hoist suspended from the girder.

Travelling mechanism	Travelling Speed		m/min	20; 30/45; 75					20; 30/45; 75						20; 30/45; 75						20; 30/45; 75						20; 30/45; 75
	Reduction Ratio			58.39, 39.38/26.36, 15.61					58.39, 39.38/26.36, 15.61						58.39, 39.38/26.36, 15.61						58.39, 39.38/26.36, 15.61						58.39, 39.38/26.36, 15.61
	Motor	Model		ZDY21-4/ZDR12-4					ZDY21~4/ZDR12~4						ZDY21~4/ZDR12~4						ZDY21~4/ZDR12~4						ZDY21~4/ZDR12~4
		N Power	Kw	0.8/1.5					0.8/1.5						0.8/1.5						0.8/1.5						0.8/1.5
		Rotation speed	r/min	1380					1380						1380						1380						1380
Lifting mechanism	Electric hoist model			CD1		MD1			CD1			MD1			CD1			MD1			CD1			MD1			CD1			MD1
	Lifting Speed		m/min	8		8/0.8			8			8/0.8			8			8/0.8			8			8/0.8			7			7/0.7
	Lifting height		m	6: 9: 12: 18: 24: 30					6: 9: 12: 18: 24: 30						6: 9: 12: 18: 24: 30						6: 9: 12: 18: 24: 30						6: 9: 12: 18: 24: 30
	Travelling Speed		m/min	20; 30					20; 30						20; 30						20; 30						20; 30
	Motor model			Conical squirrel-cage rotor motor					Conical squirrel-cage rotor motor						Conical squirrel-cage rotor motor						Conical squirrel-cage rotor motor						Conical squirrel-cage rotor motor
Group classification				A3-A5					A3-A5						A3-A5						A3-A5						A3-A5
Power supply				3phase; 50Hz; 380V					3phase; 50Hz; 380V						3phase; 50Hz; 380V						3phase; 50Hz; 380V						3phase; 50Hz; 380V
Wheel diameter			mm	Φ 270					Φ 270						Φ 270						Φ 270						Φ 270
Recommended rail				P18, 24, 38, 43					P18, 24, 38, 43						P18, 24, 38, 43						P18, 24, 38, 43						P18, 24, 38, 43
Span			m	7.5~12	12~14	15~17	19.5	22.5	7.5~11	11~12	12~14	14~17	19.5	22.5	7.5~11	11~12	12~14	14~17	19.5	22.5	7.5~11	11~12	12~14	14~17	19.5	22.5	7.5~11	11~12	12~14	14~17	19.5	22.5
Max. Wheel load	Floor Control		KN	8.8~10.1	10.1~10.7	10.7~11.7	13	14.3	13.8~15.2	15.2~15.6	15.6~16.3	16.3~17.6	19.3	21.2	19.3~20.8	20.8~21.3	21.3~22.1	22.1~23.6	25.8	28.4	29.9~31.9	31.9~32.6	32.6~33.7	33.7~35.4	38.2	40.5	50.0~54.3	54.3~55.4	55.4~57.2	57.2~59.5	62.4	66.7
	Cab. Control			12.7~14.0	14.0~14.6	14.6~15.6	16.9	18.2	17.7~19.1	19.1~19.5	19.5~20.2	20.2~21.6	23.2	25.1	23.2~24.7	24.7~25.2	25.2~26.1	26.1~27.5	29.7	32.4	33.8~35.8	35.8~36.6	36.6~37.6	37.6~39.3	42.1	44.4	53.1~57.5	57.5~58.6	58.6~60.4	60.4~62.7	65.9	70.7
Total weight	Floor Control		t	1.51~1.91	1.91~2.16	2.16~2.54	2.95	3.56	1.60~19.1	1.91~2.08	2.08~2.33	2.33~2.83	3.47	4.19	1.75~2.12	2.12~2.28	2.28~2.55	2.55~3.09	3.92	4.95	2.04~2.47	2.47~2.68	2.68~3.00	3.00~3.57	4.64	5.49	3.00~3.62	3.62~3.87	3.87~4.40	4.40~5.11	6.04	7.71
	Cab. Control			1.91~2.31	2.31~2.56	2.56~2.94	3.53	3.96	2.00~2.31	2.31~2.48	2.48~2.73	2.73~3.23	3.87	4.59	2.15~2.52	2.52~2.68	2.68~2.95	2.95~3.49	4.32	5.35	2.44~2.87	2.87~3.08	3.08~3.40	3.40~3.97	5.04	5.89	3.40~4.02	4.02~4.27	4.27~4.80	4.80~5.51	6.45	8.13
Basic Size	h1		mm	555		600	700	800	500	600		700	900		650	700		800	1000	1000	700	800		900	1100	1200	900	1000		1100	1175	1300
	B			2512	3012		3512		2512		3012		3512		2512		3012		3512		2512		3012		3512		2512		3012		3512
	W			2000	2500		3000		2000		2500		3000		2000		2500		3000		2000		2500		3000		2000		2500		3000
	h			796			796		871.5				871.5		818.5				818.5		841.5				841.5		1230				1230
	l2			1274			1274		1292.5				1292.5		1441				1291		1460				1310		1830				1830
	h			810	860		870		1000 1050 1060						1150		1170		1185	1210	1380	1400		1415	1440	1485	1525	1545		1555	1555
	H1			490			580	680	490 580				760	820	530	580	660		845	920	580	660		745	920	975	772	852		942	1017	1142

Detailed Photos
Company Profile
TXK was founded in 1997 with 1.5 million USD registered fund in the very beginning and grow up as a leading manufacturer of electric chainhoist, manual chain hoist, electric wire rope hoist and various lifting and material handling equipments with more than 15 years experience andhard work.
Our factory cover an area of 66000 square meters, the biggest workshop in the electric hoist industry in China.
We provide quality, safe and stable products to meet the highest industrial standards. We are ISO9001: 2008 and TUV certified manufacturer, our products are CE, GS, SGS certified, serving all spheres of industry in the world.
Our products are widely used in industry and manufacturing industry and other special purpose, such as mold, wind power, logistics, railway,shipbuilding, bridge construction, factory assembly line, mechanical maintenance platform etc.
The company establishes a global marketing network with exportation to Germany, Norway, Poland, United States, Canada, Mexico, Peru,Brazil, Argentina, Egypt, Saudi Arabia, South Africa, India, Indonesia, Malaysia and total more than 50 countries and regions. Certifications
Our Advantages
Why Choose Us 1.Longest history and longevity - TXK is one of the oldest established electric chain hoist manufacturers in China,with almost 20 years.
2.Largest factory and production capability - TXK factory is the biggest factory covering more than 56,000 square meters territory.
3.Widest products and servuce providing - TXK can provide widest products itema include electric & manual lifting equipments.
4.Richest experience in world business - TXK has more than 10 years experience on international trade business.
5.Fastest lead times - TXK factory is equipped with most efficient producing line which handled by skillful workers.
6.Fullest certifications - TXK factory and products are well certified by CE,GS,TUV,ISO,SGS,etc.
7.Highest reputation - TXK products are well sold in more than 50 countries. Partners with Us Main Products Our Main Products
TXK manufactures and markets a wide range of hoists and overhead cranes for use in a variety of industries around the world.From our 250kg. capacity Series 602 mini ratchet lever hoist that can fit in your lunch box to our 60-ton, high-capacity electricwire rope models, we have the right hoist for your application. We carry an extensive line of powered hoists, including electricand pneumatic chain and wire rope hoists. We also offer a full line of manual hoists, both hand chain and lever tools. Although many hoists are standard "off the shelf" units, we can modify most hoists to meet your exact requirements.We provide complete solutions to lift your business operations to newer heights. FAQ
1:What is the MOQ:
MOQ can be one set

2,How about the payment?
We accept the T/T and LC at sight

3.What is the sample policy?
We could send the 1 set sample to your test before place the order

4.What is the lead time for your goods?
Normally is the 10-15days after confirm the order

5,What should I provide if i want to order the products?
The more information you provide, the accurate solution we can prepare for you!
A-Capacity?
B-Lifting height?
C-what is lifting material? How about working environment?
D- Power supply and control voltage?

---
