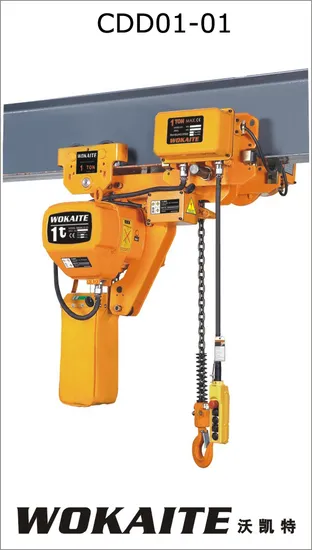

1t Low Headroom and Super-Low Lifting Loop Chain Electric Hoist

Product Description

Product Description:
WOKAITE Electric Chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system. WOKAITE 0.5-10t Low Headroom Electric Chain Hoist Limited switch
The limited swtich device is installed.In order to prohibit the chain from exceeding for safety.
Phase sequency relay
It is one of the control relay.Phase sequence automatically identifying the protective relay.Protect the low headroom electric hoist for power supply phase sequence after the reversal and cause equipment damage.
Chain
G80 ultra heat-treatable alloy steel chain.It can be safety used in severe environment.Such as rain,sea water and chemicals.
Hook
It is hot forging,high strength.Lower hook can be rotated 360.Lower hook is made up of forged steel hook with a heavy-duty hook latch.The material and heat treatment technology is very mature in hook applications.
Chain wheel
It can be ensure that the chain does not fall off&don't move,use more secure.We should checking the lifting chain before using.Ensure the hook is not reversed.
Chain bag
Canvas chain bag is standard configuration,steel bag is available for long chain.
Remote control
Waterproof,light,durable.

Model	SSDHL
	0.5-01L	01-01L	1.5-1.0L	02-01L	02-02L	2.5-01L	03-01L	03-02L	05-02L	7.5-03L	10-04L
Capacity(t)	0.5t	1t	1.5t	2t		2.5t	3t		5t	7.5t	10t
Lifting speed(m/min)	7.2	6.6	8.8	6.6	3.3	5.4	5.4	4.4	2.7	1.8	2.7
Motor power(Kw)	0.8	1.5	3	3	1.5	3	3	3	3	3	3
Rotation speed(r/min)	1440r/min
Insulation grade	F
Power supply	3-phase 380V 50Hz
Control voltage	24V/36V/48V
No.of chain	1	1	1	1	2	1	1	2	2	3	4
Sepc.of load chain	Φ6.3	Φ7.1	Φ10.0	Φ10.0	Φ7.1	Φ11.2	Φ11.2	Φ10.0	Φ11.2	Φ11.2	Φ11.2
I Beam(mm)	58-153	58-153	82-178	82-178	82-178	100-178	100-178	100-178	100-178	150-220	150-220

Dimensional Drawing:

Model	H	A	B	W	U
SSDHL0.5-01L	440	460	230	585	400
SSDHL01-01L	480	520	260	630	445
SSDHL1.5-01L	570	615	295	720	505
SSDHL02-01L	570	615	295	720	505
SSDHL02-02L	565	520	260	665	445
SSDHL2.5-01L	640	615	295	775	529
SSDHL03-01L	640	615	295	775	526
SSDHL03-02L	685	615	295	750	503
SSDHL05-02L	740	615	295	825	541
SSDHL7.5-03L	890	615	295	1020	730
SSDHL10-04L	850	615	295	996	700

---
