Ideal Material Cut Into Any Shape Non-Toxic Silicone Thermal Pad For Medical Devices

Product Details

Product Description

Product Description
Ideal Material Cut Into Any Shape Non-Toxic Silicone Thermal Pad For Medical Devices
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Product introduction

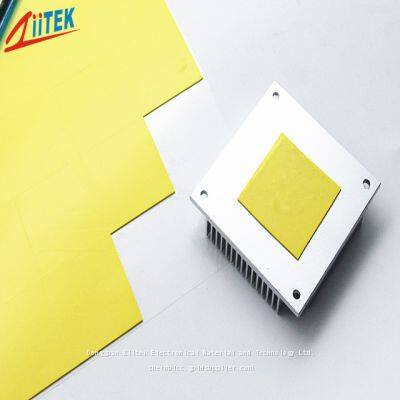

The TIF™400 Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -45℃~200℃ and meet the requirement of UL94V0.
Feature
> Good thermal conductive 2.0W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Moldability for complex parts
> Outstanding thermal performance
> High tack surface reduces contact resistance
Applications
> Power supply
> Heat pipe thermal solutions
> Memory Modules
> Mass storage devices
> Automotive electronics
> Set top boxes
> Audio and video components
> IT infrastructure
> GPS navigation and other portable devices
> Medical Devices

Typical Properties of TIF™480 Series
Color	Yellow	Visual
Construction &Compostion	Ceramic filled silicone elastomer
Thinkness range	0.020"(0.50mm~0.200"(5.0mm)	ASTM D374
Hardness	45 Shore 00	ASTM 2240
Specific Gravity	2.65 g/cc	ASTM D297
Continuos Use Temp	-45-200℃
Dielectric BreakdownVoltage @ 1.0mm,AC(v)	≥5500	ASTM D149
Dielectric Constant @MHz	4.7	ASTM D150
Volume Resistivity（Ohm-cm)	≥5.3X10¹² Ohm-meter	ASTM D257
Thermal conductivity	2.0 W/m-K	ASTM D5470
Fire rating	94 V-0	UL E331100
Application	Medical Devices
Place of Origin	Guandong,China
Cetification	ROHS,UL
Sample	Samlpe valiable
Size	Customized size

Products Thickness:
0.020 inch to 0.200 inch(0.5mm to 5.0mm)
Products Size:
8"*16"(203mm*406mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
Contact us：
Mor information, please contact us: sales26@ziitek.com

---
