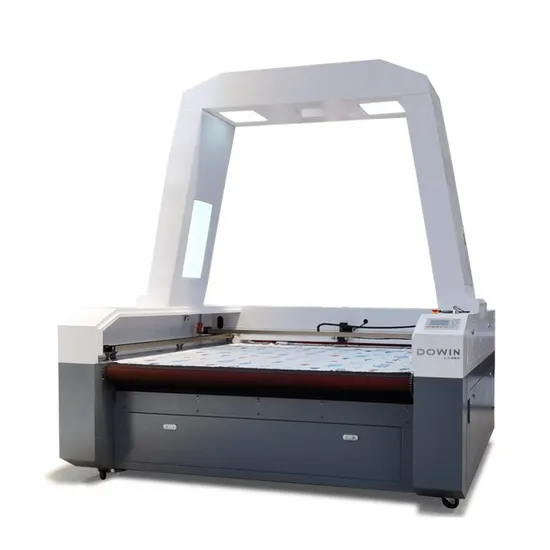

Fabric Roll Cutting Machine 1814 1610 1825 Garment Cutting Machine Price Laser Cutting Machine

Product Description

Fabric Roll Cutting Machine 1814 1610 1825 Garment Cutting Machine Price Laser Cutting Machine
Main Feature:
1) The effective cutting area is 1800mm*1000mm, 1600mm*1000mm
The machine can cut any pattern of fabrics in the cutting area, the cutting edge is smooth, the edge is automatically sealed, and the edge is not loose.
2) The conveyor belt table ensures smooth cutting of the fabric.
3) The software controls the cutting to maximize the utilization of the fabric.
4) Users can establish a database on the connected computer to realize instant data call. No cardboard required and avoid paying for paper and editing room.
5) Optional automatic feeding and receiving system with automatic deviation correction device to achieve precise feeding and cutting.
Specification:

Model	DW-1610/1814
Processing area	1600*1000mm/1800*1400mm
Auto feed cutting table	yes
Cutting Speed	0-18000mm/min
Camera	Canon
Laser tube power	80W/100W/130W/150W
Laser wave length	10.6um
Minimum shaping character	Chinese character 2mm/ letter 1mm
Resetting positioning accuracy	±0.01mm
Voltage	Ac220v±10%,50HZ/60HZ
Graphic Format Supported	BMP,HPGL (PLT), DXF, G-CODE, DST,AutoCAD, CorelDraw, CAD CAM, AI, Photoshop
software supported	Coreldraw,AutoCAD,Photoshop.llustrator etc
lens	reflect lens(3pcs)+import focus lens(1pcs)
guide Rail	high quality mould rails
Driver Type	leadshine stepmotor
cooling sytem	S&A CW-5200
software	TROCEN
Opearate System	Win98/Win2000/WinXP/Win 7/vista
Pass through doors	Allow to cut extremely long materials
Optional	One head/Dual heads same steps/Dual X rails

Fabric Roll Cutting Machine 1814 1610 1825 Garment Cutting Machine Price Laser Cutting Machine
Detailed Images:
1. The laser head
A professional high-flexible laser head, moves very fast, which can help to achieve high speed and high precision.
2.Laser tube
80W/100W/130W/150W laser tube, which can be selected according to customer's needs, and can be used to cut non-metallic materials such as fabric, textile, garment.
3.Control system
Professional control system, all these data can be set on the digital panel.
4.CCD Camera
The CCD camera greatly improves the cutting efficiency. During the working process, it can automatically import pictures into the computer through the vision system for cutting work.
5. Automatic feeding table
Automatic feeding table, specially designed for single items such as cloth, cloth, towels, leather, jeans, knitwear, embroidery, etc., very practical. Widely used in clothing industry.
The 1814/1610 laser cloth cutting machine is equipped with a professional automatic feeding device, and the automatic feeding table with a roller device is professionally used for cloth and fabric cut. Put the 'material on the table, with the automatic feeding shaft, to avoid wrinkling.
6. Guide rail
High-quality mold guide rail, faster moving speed, higher running accuracy, more obvious advantages in long-term cutting work
7. industry chiller CW5200
Industry chiller CW5200, effectively reduce the temperature and ensure the normal operation of the machine
Applicable Industries:
Application industry:
Mainly used in clothing industry, fabric processing industry and curtain and sofa manufacturing industry, used for precise camera positioning and cutting of non-metal special-shaped patterns in many industries such as printing, clothing, leather, cloth toys, etc.
Application range:
Suitable for trademarks, printing, embroidered back stamps, rubber stamps, silk-screened trademarks, jacquard webbing fabrics, leather material cutting.
Sample
Packaging & Delivery:
Packaging Details: Wooden Box Packing
Port: Shanghai/Qingdao
Lead Time:

Quantity(Sets)	1-10	>10
Est.Time(days)	12	To be negotiated

We will choose the most suitable packaging and shipping method for you according to your needs for this laser cutting and engraving machine.
1.* Outer packing: Standard sea export plywood box.
*Inner packaging: elastic film and plastic film for moisture protection.
2. Support various transportation methods such as sea transportation and land transportation
3. We can pack according to your requirements.
About us:
Dowin technology Co., Ltd. is an industrial and trade integrated manufacturer of all kinds of laser equipment, such as laser
cutting machine, laser engraving machine, laser marking machine, laser welding machine.
We are committed to providing customers with high quality products and excellent service in the field of laser engraving and cutting, products have obtained CE certification.
After years of innovation and development, Dowinlaser's products are sold in more than 100 countries and regions in North America, Western Europe, South Asia, South America, the Middle East and so on.
We will uphold the spirit of innovation, and continue to develop new products, new technology, to provide customers with betterproducts.
We sincerely hope to cooperate with customers from all over the world.
Our Service:
1.Pre-Sales Service:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
2.After-Sales Service:
*Within 7 days since your local customs clearance:if the machine has any problems,we will change it free.
*Exceed 7 days since your local customs clearance but within warranty period if the machine parts have any problems,we can change the old machine parts to new ones free,but you should pay all the shipping cost.
*Exceed three years warranty period if the machine parts have any problems,we can offer new machine parts with cost price and you also should pay all the shipping cost.
*We offer 24 hours technical support by call,email.
*Our technician can give you remote guide online(Skype/MSN/What's app/Tel/Etc) if you have any question.
*Machine has been adjusted before delivery,operation disk is included in the delivery.If there is any other questions, pls kindly tell me.
*We have manual instruction and CD (Guiding Videos) for software Installation,operation and machine's using and maintenance.
FAQ:
Q1: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or other contact ways.
Q3: This model is not suitable for me, do you have more models available?
Yes, we can offer multiple models.
1814/1610 and other models of machines, and provide customized services at the same time
Q4:What's the guarantee, in case the machine breaks down?
The machine has three year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to client s feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q5:How about the documents after shipment? And how long is the delivery time?
After shipment, we'll send all original documents to you by email or by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
For standard machines, it would be 5-10days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
Q6:How's the payment?
Telegraphic Transfer(T/T) to our official company bank account or Western Union(WU) or via ****** trade insurance order payment.
Q7:Do You Arrange Shipment For The Machines?
Yes, For EXW price, It is costly to pick up machine from our factory ,we could send machines to any Chinese sea port warehouse by add some domestic shipping cost.
For FOB or CIF price, we will arrange shipment for you.
Q8:If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".

---
