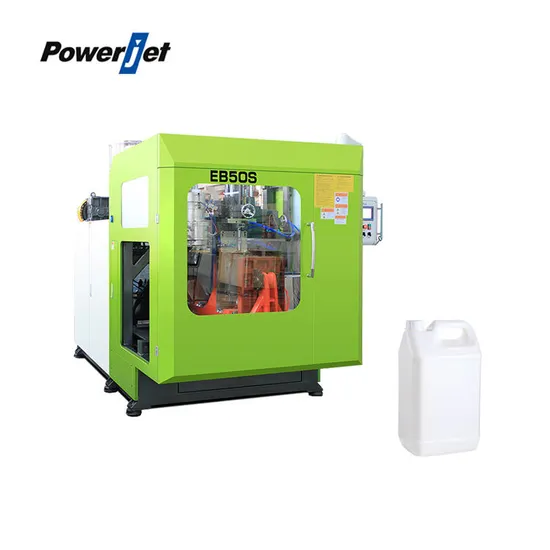

Fully Automatic Making HDPE Plastic Bottle Blowing Molding Machine Price

Product Description

Products Description
FEATURES:
1:Toggle balance clamping structure, with platen opening & clamping and mold platen movement by linear guide, to achieve low friction and high speed.
2:Based on the Finite Element Analysis design, and platen, toggle and platen frame made in high intensity nodular cast iron.
3:High speed mold clamping oil cylinder with differential speed function, and high speed mold moving cylinder with special anti-shock cushion valve structure.
4:Specially designed to screw with high L/D ratio insures good plasticizing and stable extrusion; high precision and no part line die head guarantees customers' top quality requirement.
5:Multi-screw & multi-die head can be adopted to improve the quality of the product and lower down the cost of material.
6:Multiple-way PID controlled temperature heating is precise and stable.


Product Paramenters

MODEL	UNIT	EB30S65S	EB50S75S-plus	EB70S75S-plus EB70SW75S-plus	EB120SW85S	EB180S90S	EB300S100S
Max.Product	L	4	10	10	12	20	30
Clamping Force	kN	65/85	140	160	240	260	300
Max.Mold Size(WxH)	mm	400x355	480x430	580x420	730x450	600x500	850x780
				480x460
Screw Diameter	mm	Φ65	Φ75	Φ75	Φ85	Φ90	Φ100
Screw L/D Ratio	L/D	25	24	24	24	25	24
Screw Rotary Speed	RPM	65	65	65	60	60	60
Extrusion Weight(HDPE)	kg	55	80	80	120	150	180
Extrusion Motor Power	kW	15	22	22	30	37	55
Pump Motor Power	kW	7.5	11	11	22	22	22
Heating Capacity	kW	17	19	19	21	27	35
Operation Pressure	Mpa	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8	0.6~0.8
Air Consumption	m³/min	1.0	2.0	2.0	3.0	3.0	4.0
Cooling Water Consumption(25ºC)	L/min	40	70	70	200	200	300
Machine Dimension (LxWxH)	mm	3800x2220x2400	4400x2120x2400	4450x2460x2700	4800x2500x2900	5200x2600x3100	6000x2800x3600
Machine Weight	kg	3300	5000	5500	7000	8500	10000

Company Profile
POWERJET PLASTIC MACHINERY CO., LTD. was founded in 2000, the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong Province, occupying an area of 130,000 square meters.POWERJET is a high and new technology enterprise of R&D, manufacturing, sales, after-sales service of injection molding machine and extrusion blow molding machine.

In a production area of more than 50,000 square meters, we have an automated production line and an active staff. Lean organizational structure, efficient operation and ultra-modern machinery and equipment to ensure the production efficiency and flexibility, allows us to ensure quality and the fastest production cycle at the same time, at very competitive prices. Annual production capacity has reach to 4000-5000 injection sets of.


FAQ
Q1: Are you a factory or trading company?
A1: We are a factory.
Q2:Do you offer guarantee for the products?
A2: Yes, we offer 1 years warranty to our products.
Q3: Where is your factory located?
A3:POWERJET PLASTIC MACHINERY co., LTD. the headquarter is located in Foshan high tech Industrial Park, Sanshui, Foshan in Guangdong ProvinceWe are warmly welcome you to visit us.

---
