UV Laser Marking Machine for Glass Printing Mirror Stainless Steel Color Mark Crystal Gold Engraving

Product Description

The mark on the surface of the product is not only a pattern to indicate the brand or production date, but also can raise your product to a higher level and instantly become high-end.

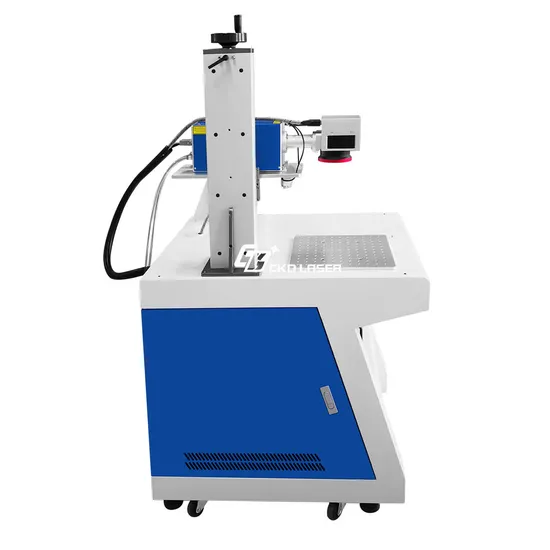

CKD-ULMA V22.05 is a short 355nm wavelength solid laser machine, it makes all kinds of material has higher lights absorption rates, cold marks, engraves or cuts materials. The marking effect is smoothly, beautiful black color without ink, and keep permanent on special material without harm, even on some very hard laser-able material by normal laser machines. You don't need to separately use different lasers to mark different materials, one set is enough.
Samples show -1:
Deeply white clean cave on ceramic, total black accurate draw on ceramic without any ink, smoothly mark on plastic, environmentally healthy logo printed on rubber, un-wipeable and permanent keep stamps on kinds of materials.
Samples show -2:
Clearly mark characters on glass and acrylic, accurately mark kinds of figure on plastic.
Samples show -3:
Quickly peeling painting surface to make the light through, fast clean or wipe the surface layer. For examples: light transmission buttons on automobile parts, a mouse that shines with inner light's color, a transparent window on lip-glazed bottle to show how many liquids left and so on.
Samples show: Series numbers, bar codes, QR codes marked on medical apparatus and instruments, seal belts, circuit board ect.
CKD-ULMA V22.05 is a water-cooling UV laser marking machine, with a powerful constant temperature chiller, which helps expand the service life.
It has excellent characteristics: short wavelength, short pulse, excellent beam quality, high precision, peak power. Compared with green laser, red fiber laser and CO2 laser, it has a smaller thermal effect and no burning smell.
CKD LASER keeps this type two outside res dots for easily focus. When the 2 outside red dots overlap with the inner purpose laser dot, it is right-focus and the energy is stronger than off-focus. CKD-ULMA V22.05 keeps all the operation buttons on one side, which makes the operation more convenient.
CKD-ULMA V22.05 can match kinds of rotaries for cylinder marking. Recommend combined style rotary of CKD-R80-CUP, or 80mm rotary of CKD-R80-H1 for shorter cylinder.
CKD-ULMA V22.05 use powerful and newest laser marking software EzCad2 or EzCad3, which make your future extend functions possible, and fast actions to improve your work efficiency.
The whole design is compact and does not take up unnecessary space.
CONFIGURATIONS:

Type	Laser source	Marking scope (optional)	Application	Computer
CKD-UMLA-3	3W, UV	100*100mm	Mark	With
CKD-UMLA-5	5W, UV	100*100mm	Mark / deeply engrave
		150*150mm	Mark
CKD-UMLA-10	10W, UV	100*100mm	Mark / deeply engrave / cut
		150*150mm	Mark / deeply engrave
		200*200mm	Mark
CKD-UMLA-15	15W, UV	100*100mm	Mark / deeply engrave / cut
		150*150mm	Mark / deeply engrave
		200*200mm	Mark
CKD-UMLA-20	20W, UV	100*100mm	Mark / deeply engrave / cut
		150*150mm	Mark / deeply engrave / cut
		200*200mm	Mark

Marking software (optional)	Plane mark	Rotary mark	3D relief	Hook face mark	Cut
EzCad 2	√	√			√
EzCad 3	√	√	√	√	√ easier

---
