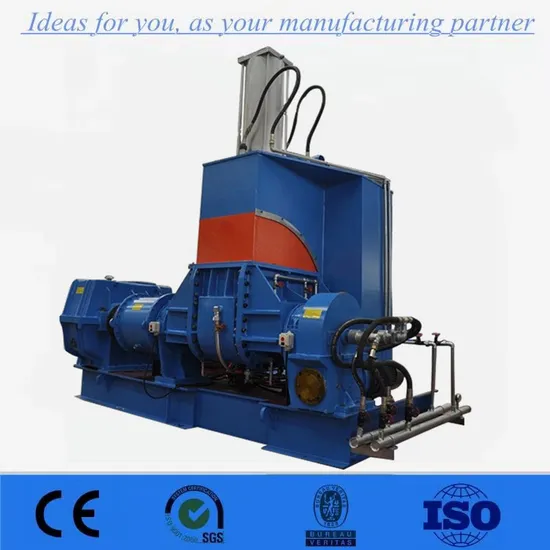

50L Banbury Kneader Mixer Internal Banbury Mixer for Rubber and Plastic Processing

Product Description

Plastic Kneader Machine Lab Rubber Internal Mixer Lab Internal Mixer is applicable to rubber, plastic and chemical industry. And most suitable kneading application: EVA., rubber, TPR, sole, rubber roller, hoses, belts, sponges, vibration insulator, elastic cord, sealing materials, tire, tapes, master batches, pigment, ink, electric rubber parts, chemical industry compounds
Lab Kneader Machine Features:
1. Rubber or plastic stock can be plasticized or mixed in a closed and pressurized space with the temperature controlled
2. Optimization of the parameters such as the helical angle of rotor wings and the wing overlap length brings about even distribution of the stock.
3. The rotor wings are built up by welding with the abrasion-proof carbide alloy to resist abrasion and corrosion.
4. All the parts of rubber kneader machine in contact with stock are of the jacket design.
5. Stock is fed through the rear door of the framework (or another port) and discharged by the mixing chamber tilting forward by 140°
Lab Kneader Machine is with pneumatic ram
Mixing chamber tilting type: hydraulic or motor drive
Gearbox reducer : finished gearbox reducer from qualified and famous brand
Rotor : two-wing/blade or four-wing/blade rotor
Rotor surface : plated with hard chrome , and plolished treatment without any stick for rubber material
Rotor shafts ends sealing : good , no leakage
PLC control : Omron brand or as requested by customer
Electrical control cabinet : good sealing
Lab Kneader Machine dust collector : available by requirement
Lab Kneader Machine model available : 3L,5L,10L,20L,25L,35L,55L,75L,110L,150L,200
Product Parameters

Model	X(S)N-5	X(S)N-10	X(S)N-20	X(S)N-35	X(S)N-55	X(S)N-75	X(S)N-95	X(S)N-110	X(S)N-150
Mixing Capacity(L)	5	10	20	35	55	75	95	110	150
Actuating Motor(KW)	7.5	15	37	55	55/75	90/110	132	160/200	220
Tipping Motor(KW)	0.75	1.1	1.5	2.2	3.7	4.0	5.5	5.5	5.5
Turnover Angle	110	110	110	140	140	140	140	140	140
Air compressor(KW)	1.5	3.0	3.0	5.5	7.5	11.0	15.0	15.0	15.0
Suction Cleaner	HLL-10	HLL-10	HLL-10	HLL-10	HLL-10	HLL-10	HLL-10	HLL-10	HLL-10
Water Cooling(Rubber Refining)Mpa	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4	0.2-0.4
Steam Heating(plastic Refining)	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8
Electrical Heating(plastic refining)KW	4	7	9	12	15	18	24	24	28
Weight(kg)	1200	2000	3000	5000	7800	9000	11500	13000	19500
Dimension(L*W*H)cm	180*120*220	200*123*150	230*170*255	280*215*295	330*230*335	360*260*330	375*270*335	400*290*350	420*330*390

Detailed Photos
Lab Internal Mixer Equipment application and operation requirements
Main application: this machine is mainly used for plasticating and mixing of polymers or natural rubber, synthetic rubber, reclaimed rubber, other polymers and etc.
Operation requirements
A. running environment: altitude<1000m,
temperature: 5ºC-40ºC, max. relative humidity 95%
B. Cooling water pressure: 0.3-0.4Mpa
Cooling water temperature: <25ºC±3ºC
C. Compressed air pressure: 6-0.8Mpa
Compressed air consumption: ≥1m³/min Packaging & Shipping


CUSTOMER SITE

Company Profile
Qingdao Evertech Industry Co., Ltd. is a professional pressure vessel designer, manufacturer and exporter. We have manufacturing licenses for ASME U, ASME U2,NB,PED, D1, D2 and A2 pressure vessels. Composed of more than 20 senior experts and professional engineers, the research and development team, with more than 20 years of professional experience, is committed to product design, development and program optimization, and can provide high-quality solutions according to users' requirements in different operating conditions. Company has cover an area of 70000 manufacturing base and 15000 modern manufacturing plants, can provide customers both at home and abroad with composite autoclave, high pressure autoclave, high pressure reactor, AAC autoclave, deaerator, pouring tank pressure vessel products such as more than 800 sets, pressure vessel head more than 20000 sets high quality products and services, won widespread praise.
FAQ
Q1:Why choose Us?
1.More than 20 years history of EVERTECH MACHINE factory.
6-8 years foreign sales experience staff, more efficiency and professional.
Engineers oversea service more than 20 countries .
2.ISO:9001,CE,BV certification approval
3.Service timely, Promise to give solution within 12 hours,Guarantee customer trouble free.
4.Short delivery date, No delay. Accept urgent order for prompt shipment.
Q2:What about Lab Internal Mixer delivery date?
It will be according to the quantity of machines. Normally machines will be shipment within 20-30 days after get deposit, No delay.
Accept urgent order for prompt shipment.

Q3:What's the Lab Internal Mixer warranty statement?
EVERTECH MACHINE warrants all the products manufactured by EVERTECH MACHINE to free from defects in material and workmanship Under normal use of a period of 12 months or 36months after the date of the original purchase price if repair or replacement is not possible of practical, EVERTECH MACHINE warranty covers ONLY the product itself.
EVERTECH MACHINE will assume no liability for labor costs, installation costs, or other losses.
Your warranty rights will be honored
Only when the product has been installed and used properly as deemed by EVERTECH MACHINE,EVERTECH MACHINE will not repair products damaged by improper use or faulty installation.
Q4:What about EVERTECH oversea service ?
EVERTECH will arrange oversea setting up and training works if customer need .
Customer should pay for accommodation , tickets and salary .
Meanwhile EVERTECH has branches in different areas like north America , Southeast Asia , Brazil etc , etc .

---
