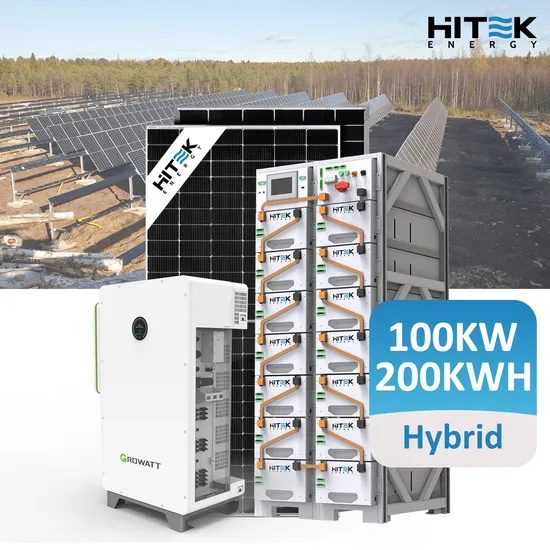

30kw 50kw 50 kVA 100 Kw 100kVA off Grid Hybrid Solar System All in One Stop Solution Hitek Industrial 100kw Solar Panel System with Lithium Battery

Product Description

Product Description
Warranty
How It Works
HiTek hybrid solar system is a renewable energy system that is grid-tied and includes battery storage. The system uses solar panels to produce energy during the day, while the batteries store excess energy for use later at night when there is no sunlight.
Hybrid solar systems have both on-grid and off-grid capabilities, allowing you to continue running on solar power even if the grid goes dark.
Configuration Details

	Model. No.	HT30KW-HY	HT50KW-HY	HT100KW-HY	HT150KW-HY	HT250KW-HY	HT500KW-HY
System Parameter	AC Rated Power	30KW	50KW	100KW	150KW	250KW	500KW
	Grid Voltage	380/400VAC
	Rated grid frequency	50/60HZ
	Max. Output (KVA)	33	55	110	165	275	550
Solar Panel	Quantity	68PCS	102PCS	204OCS	289PCS	510PCS	1020PCS
	Model	HT560M-72
	Power in total	38.08KW	57.1KW	114.24KW	161.84KW	285.6KW	571.2KW
Hybrid Inverter	Quantity	1PC	1PC	1PC	1PC	1PC	1PC
	Model	HTMPS30	HTMPS50	HTMPS100	HTMPS150	HTMPS250	HTMPS500
	Rated current (A)	43A	72A	144A	216A	361A	722A
	Rated Power (KW)	30KW	50KW	100KW	150KW	250KW	500KW
	MPPT Voltage	250-850VDC
Lithium Battery	Quantity	8PCS	7PCS	14PCS	22PCS	33PCS	66PCS
	Model	HT48100	HT48100	HT48280	HT48280	HT48280	HT48280
	Nominal Voltage (Vdc)	51.2	51.2	51.2	51.2	51.2	51.2V
	Nominal Capacity (AH)	100	280	280	280	280	280
	Voltage Range (Vdc)	44.8-57.6V
	Battery Bank Capacity	40.96KWH	100.352KWH	200.704KWH	315.392KWH	473.088KWH	946.176KWH
BOS	Battery Combiner Box	0 set	0 set	1 set	1 set	1 set	1 set
	PV Combiner Box	1 set	1 set	1 set	1 set	1 set	1 set
	PV Cable 4MM2	400m	600m	1200m	1700m	3000m	6000m
	MC4 Connectors	16 paris	24 pairs	48 pairs	68 pairs	120 pairs	240 pairs
	EMS	BR3000 (Optional)	BR3000 (Optional)	BR3000 (Optional)	BR3000 (Optional)	BR3000 (Optional)	BR3000 (Optional)
	ATS	ATS-30 (Optional)	ATS-50 (Optional)	ATS-100 (Optional)	ATS-150 (Optional)	ATS-250 (Optional)	ATS-500 (Optional)
	Container	/	/	10ft (Optional)	10ft (Optional)	20ft (Optional)	20ft (Optional)
General Data	Operation Temperature Range	-35~50ºC(>40ºC derating)
	Operation Humidity Range	0~95% (no condensation)
	Maximum Operation Altitude	2000m

HiTek Hybrid solar system is a great option for homeowners who are not only looking to go solar to lower their electricity bill, but to ensure your property is powered during a power outage.
System Components
Mono Solar Panel
Model: HT560M-72
Peak Power Watt: 560Wp
Open Circuit Voltage (Voc/V): 49.84V
Short Circuit Current (Isc./A): 14.14A
Voltage at Maximum Power (Vmp./V): 41.08V
Current at Maximum Power (Imp./A): 13.64A
Dimensions: 2279*1134*35mm
Weight: 28.0±3% kgAll-in-one Solar Hybrid Inverter
Programmable working mode
Touchscreen LCD
Seamless Transfer
Dry Contact Output
Scalable Design ( Can get paralleled 4 Units)Online Monitoring System
Open Station Supports one-click
Installation and registration Problem
Support one-click dispatch and navigation
Safe operation, traceable logs, etc.
Support full lifecycle data storage to ensure
data security and reliabilitySolar Battery Packs
Rack mounted
Deep Cycle long lifespan
High discharge performance
Easy installation and Maintenance-free
AGM/GEL/LiFePO4 Lithium Ion Battery Type
2V/12V/48V/High Voltage Battery
More than 6000 times, up to 90% DOD
Wide suitability of ambient temperature rangeDC & AC Disconnect Switch
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A, 20ADC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage: 600VDC /1000VDC (TUV)
Rated Current: 55A, 70A
Colors: Black For STD, Red Optional.
Lifetime: ≤25 YearsPV MOUNTING SYSTEM
MOUNTING RAIL & RAIL SPLICE KIT: AI60O5 & SUS304 BOLT
MID&END CLAMPS: 30, 35, 40MM
L FOOT ASPHALT SHINGLE MOUNT & HANGER BOLTOPTIONAL
CABLE CLIPS &TIE OPTIONAL
GROUND CLIPS & LUGS OPTIONAL
Complete Technical Support
Packaging & Shipping
HiTEK Project Case
Company ProfileHITEK ENERGY gets founded in 2018. As superior photovoltaic manufacturer, HITEK ENERGY's dedicated to providing sustainable and renewable energy solutions to strengthen homes, businesses and factories.
We provide tailored solar energy solutions for backup, residential, and commercial needs, catering to your unique power requirements.
At HITEK ENERGY, your satisfaction is our top priority. We use ONLY Reliable Approved Equipment.
Helping you save money on your electric bill is our responsibility. We take seriously.
We understand that you need more than just a solar system manufacturer, you need a brand that you can partner with for life.Let's work together for a better, brighter and greener future.
Our Advantages
How to Get My System?

---
