Fluoropolymer Kel-F PCTFE Rod and PCTFE Seals Manufactuer

Product Description

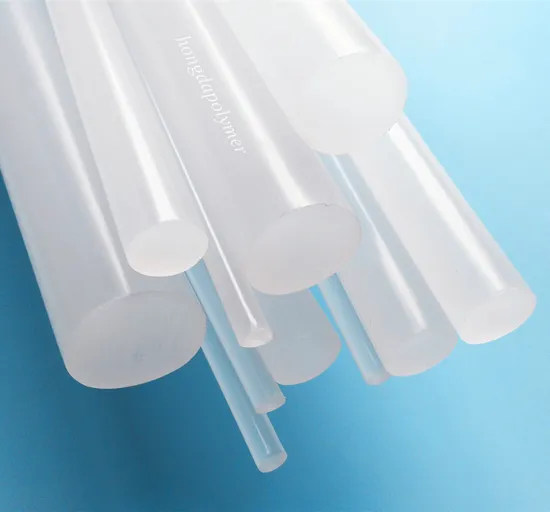

PCTFE ROD, PCTFE sheet and PCTFE Hollow bar
Polychlorotrifluoroethylene (PCTFE) is a thermoplastic chlorofluoropolymer with the molecular formula (CF2CClF)n, where n is the number of monomer units in the polymer molecule. It is similar to polytetrafluoroethene (PTFE), except that it is a homopolymer of the monomer chlorotrifluoroethylene (CTFE) instead of tetrafluoroethene. It has the lowest water vapor transmission rate of any plastic.
PCTFE has high tensile strength and good thermal characteristics. It is nonflammable and the heat resistance is up to 175 °C. It has a low coefficient of thermal expansion. The glass transition temperature (Tg) is around 45 °C. PCTFE has one of the highest limiting oxygen index (LOI) It has good chemical resistance. It also exhibits properties like zero moisture absorption and non wetting.
PCTFE is resistant to the attack by most chemicals and oxidizing agents, a property exhibited due to the presence of high fluorine content. However, it swells slightly in halocarbon compounds, ethers, esters and aromatic compounds.PCTFE is resistant to oxidation because it does not have any hydrogen atoms.
Main PCTFE products we offer: PCTFE Rod, PCTFE Sheet, PCTFE tube and PCTFE seal& PCTFE seat as per drawing.
PCTFE properties
. excellent low temperature resistant
. Good mechanical property
. Low coefficient of liner expansion
.Good dimensional stability
. Good penetration function
Product application
PCTFE is widely used for seals in the condition of low temperature with high pressure(gas, liquid nitrogen, liquid oxygen ect) ,semiconductor, chemical, pharmaceutical,aerospace and other relevant sealing area.

PCTFE ROD SIZELIST

Diameter (unit: mm)	length 1 (unit: mm)	length 2 (unit: mm)
3.0	/	1000
4.0	/	1000
5.0	/	1000
6.0	200	1000
7.0	200	1000
8.0	200	1000
10.0	200	1000
12.0	200	1000
13.0	200	1000
15.0	200	1000
16.0	200	1000
18.0	200	1000
20.0	200	1000
22.0	200	1000
25.0	200	1000
30.0	100~500	1000
35.0	100~500	1000
40.0	100~500	1000
45.0	100~500	1000
50.0	100~500	1000
…

Other products available
Company introduction:
Hongda was founded in 1999 and it is a professional manufaturer of high-performance plastics in the form of semi-finished products and finished parts.The products sell well throughout the country and exported to more than 20 countries&areas, which are widely used in chemical industry,semiconductor, gas&oil, pump&valve, water treatment...

---
