Finished Cocoa Grease Water Cycle Heating Insulated Tank Volume 5000L

Product Description

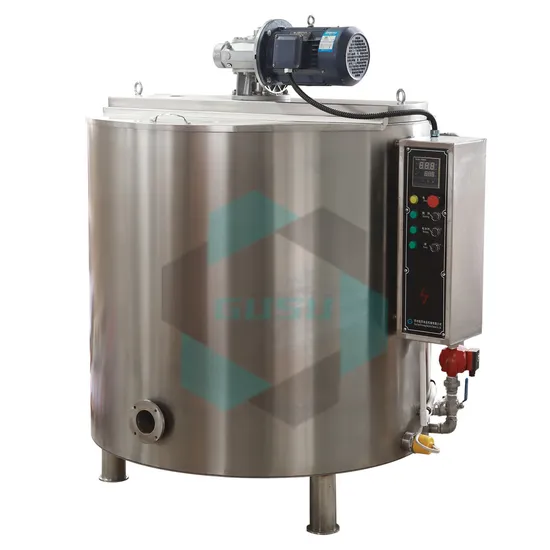

Chocolate Storage Tank
Product Description
Chocolate tanks are a crucial step in chocolate production - between the tempering and final molding phase. If you want delicately molded chocolates, the chocolate must be kept at the correct consistency and temperature. A highly advanced chocolate tank is the only way to achieve such results and exactly why you should choose GUSU as your machine suppliers.
From 100L to 5,000L and higher in the standard range of vertical tanks. Larger capacity vertical and horizontal tanks can be built to suit your specific need. These fully China made storage tanks are used to store finished liquid masses like chocolate, at a required temperature and are continuously moved by means of the stirrer in one direction. A heavy duty stirrer guarantees a continuous agitation of the mass. Water temperature in the jacket is controlled by means of a thermostat control which is governed by the setting on the control panel.
GUSU chocolate Storage tank comes in a sleek stainless steel design. Its thick shell makes it highly durable and built to last years on your production line.
Technical Parameters

Model	Volume(L)	Motor Power(KW)	N.W.(kg)	Overall Size(mm)
BGW100	100	0.75	120	φ600*900
BWG200	200	0.75	155	φ700*1220
BWG300	300	0.75	210	φ940*1000
BWG500	500	0.75	260	φ988*1520
BWG1000	1000	1.5	470	φ1220*1620
BWG2000	2000	3	950	φ1530*1620
BWG3000	3000	4	1300	φ1800*1620
BWG5000	5000	5.5/7.5	3000	φ1930*2720

RAQ
1 How to Order
1. Customer send us an inquiry.
2. Confirm machine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better
2 About after-sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .
3 About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.
4 About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation

---
