HDPE Plastic Film Blowing Extrusion Machine

Product Description

Product Description

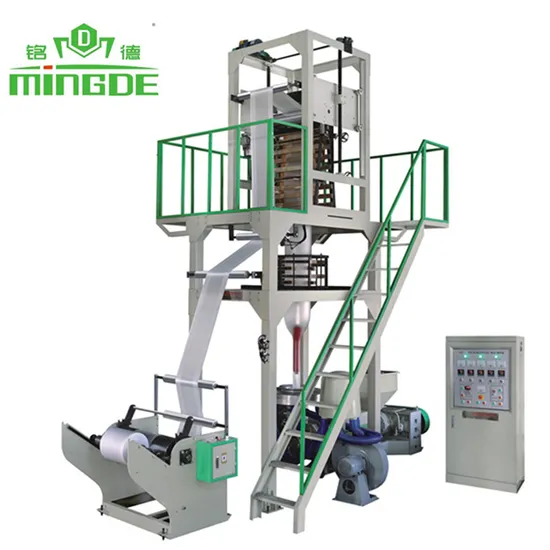

Plastic bag blowing extruder
Model number: MD-H (Plastic bag blowing extruder)
Film layer of polyethylene film extruder: One layer
Product of polyethylene film extruder: HDPE film
Application of polyethylene film extruder:
- T-shirt bags - Garbage bags
- Furniture cover films - Laundry bags
Material of polyethylene film extruder:
- Recycled material - LDPE/LLDPE blend
- HDPE with CaCO3 - Biodegradable or virgin raw material

Model	MD-H45/50	MD-H55	MD-H60	MD-H65
Suitable Material	HDPE
Max Film Width(mm)	600	800	1000	1200
Film Thickness(mm)	HD:0.008-0.08
Max Extrusion Output HD	30/40kg/hr	50kg/hr	60kg/hr	80kg/hr
Extrusion unit
Gear Box	133/146	173	173	200
Screw Diameter(mm)	φ45/50	φ55	φ60	φ65
Screw L/D Ratio	28:1	28:1	28:1	28:1
Screw's Material	38 CRMOALA
Barrel's Material	38 CRMOALA
Barrel's Cooling Fan	200W×2	200W×2	200W×2	200W×2
Thermo Control (zone)	3	3	3	4
Driving Motor (kw)	7.5/11	18.5	22	30
Extrusion Die
Die Size (mm)	HD:φ60/80	HD:φ80/100	HD:φ100/120	HD:φ120/φ150
Screen Changer	Standard manual
Thermo Control (zone)	2	2	2	2
Air Ring (mm)	φ620	φ620	φ620	φ760
Cooling Blower (kw)	1.5	2.2	2.2	3
Center Steady Stick	1 PCS
Take-UP Unit
Roller Width (mm)	φ138×650	φ138×850	φ138×1100	φ138×1300
Embossing Roller Width	550mm	750mm	1000mm	1200mm
Take-UP Motor (kw)	0.75	1.1	1.1	1.5
Take-UP Speed(M/min)	10-60	10-60	10-60	10-60
Height adjustable type	700mm
Winding Unit
Type OF Winder	Surface Friction Single Winder
Roller Width (mm)	700	900	1100	1300
Winding Motor (N.M)	6	10	10	16
Winding Speed(M/min)	10-60	10-60	10-60	10-60
Voltage	380V, 50HZ, 3PHASE
Cover Dimensions (m)	4.5×2.0×4.3	4.5×2.2×4.5	5×2.5×4.8	5.5×2.8×5.2

Detailed Photos
Certifications
Packaging & Shipping
Company Profile
Our Advantages
After Sales Service
Our company will provide you the good after services. We can help you solve the problem through video, email, phone, 24 hours hot line. If needed, we can also let our engineer go to your country to solve the problem. We hope all the customers will be satisfied with our machines and services.
FAQ
1.Trade company or manufacture?
we are a manufacture of plastic machinery such as: film blowing machine, printing machine ,bag making machine and recycling machine.
2.How to visit our factory?
Some lines you can choose. First, you can come to guangzhou air port, then by air to wenzhou air port, call us we can go whenzhou air port to pick up you.
Second, you can to shanghai, then from shanghai air port to whenzhou air port or by the fast train Ruian station then we go air port or train station to pick up you.
3.What about the warranty?
All our machine have one year warranty. if the machine parts broken because the quality problem, we can provide the spares for you by free.
4.What about the traning?
We welcome you learn the machine use in our factory. before the machine finished you can come to our factory , we can arrange the enginner teach you the simple operation.
we also can send engineer to your factory ,teach your workers how to run the machine. but you need pay all the fees including: round tickets , food and living.
5.About the machine shipping?
Normal our machine send to customers by sea, port to port almost used. like FOB, CIF.
6.About the machine packing?
Our machine normal use the plastic packing. if you need wooden case packing and require fumigation, before order you need tell us so we arrange for you.

---
