heavy duty double column machining center GMC2960 for metalworking

Product Description

Product Description

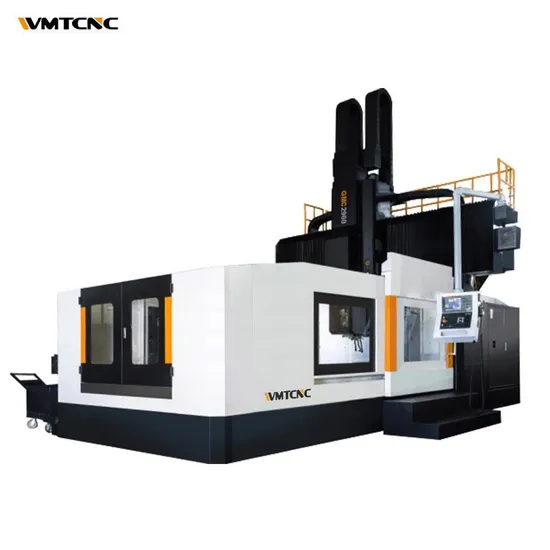

Double Column Machining Center GMC2960 Features:
1. High performance cost ratio;
2. Energy consumption decrease by 20%, high stability;
3. Easy to operate, programme and maintenance.

Specification	GMC2960
Worktable
Worktable size (L×W)	6000×2500mm
T-slots size (N×W×D)	11-28×200mm
Travel
X/Y/Z axis travel	6200/2900/1000mm
Capacity
Distance from spindle nose to worktable surface	220-1220mm
Distance between two columns	3050mm
Spindle
Spindle taper	BT50
Spindle power	22/26kw
Max. spindle speed	6000rpm
Spindle torque	560N·m
Feed
Rapid feed speed (X/Y/Z)	10/10/10m/min
Ball screw (diameter+lead)
X/Y/Z axis ball screw	8020/6320/5016
X/Y/Z guideway type	X/Y:roller linear guideways, Z:box guideway
Tool magazine
Tool magazine capacity	24T
Max. length of tool	350mm
Tool change time (T-T)	3s
Positioning accuracy (GB standard)
Positioning accuracy(X/Y/Z)	0.045mm
Re-positioning accuracy(X/Y/Z)	0.03mm
Machine dimension
L×W×H	16000×7200×5700mm
Machine weight
Max. loading of worktable	24t
N.W	50t

STANDARD ACCESSORIES
1. FANUC CNC system.
2. Main driving system(include spindle, main motor etc.
3. Three axis servo drive system( servo motor, linear guide, ball screw etc).
4. Main parts(include base, worktable, column etc).
5. CNC control system( includes operation box, electric cabinet, manual pulse generator).
6. Cutting liquid system( Includes water pump and water tank ).
7. Automatic chip conveyor.
8. Outsides semi-protection shield.
9. Oil cooler and etc.
Detailed Images
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.

---
