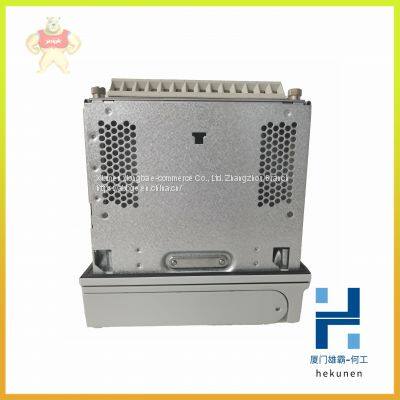

REF615E-E HBFAABAANAA4BNA11E ABB Safety protection controller
REF615E-E HBFAABAANAA4BNA11E ABB Safety protection controller
Our Email: 2235954483@qq.com
contact number:13313705507
contacts：HE
REF615 integrates the function of controlling the circuit breaker through the front panel human-machine interface or remote operation
Function. In addition to the circuit breaker control, the device has two control modules for
Electric control and position indication of disconnector or circuit breaker handcart. In addition, install
There is also a control module for the electric control of an earthing switch and its position
Set indication.
To control any primary equipment, the device requires two physical inputs and two
Physical output. According to different standard configurations selected by the device, the redundant input and
The quantity will also vary. In addition, some standard configurations are optional
To increase the available input and output volume.
If the available input / output volume of the selected standard configuration is insufficient, if possible, you can
Improve the configuration to release some input or output originally used for other purposes, or
Connect an external input or output module, such as rio600, to the device. External I
/The input / output quantity of the O module can be used as the action time requirement in the application
Too strict switching signal. After integration, the input and output reserved in the device
The amount is released.
For the output of the device selected to control the primary equipment, it shall be applicable
Conduct careful review, such as making capacity and interrupting capacity. If for a set
If the requirements of standby control circuit cannot be met, external auxiliary equipment shall be considered
Set.
The optional large LCD screen of the local human-machine interface of the device can display a single line diagram
(SLD) capable of displaying position indication of relevant primary equipment. Available with pcm600
The interlocking scheme required by the system shall be configured by the signal matrix or application configuration function of.
According to the standard configuration, the device can also provide synchronous detection function to ensure split operation
The voltage, frequency and phase angle on both sides of the grid meet the requirements of safe grid connection during grid connection
Pieces.
>>
