Automatic Road Construction Crash Barrier Making Machinery Highway Guardrail Automatic Cold Roll Forming Machine

Product Description

Product Description

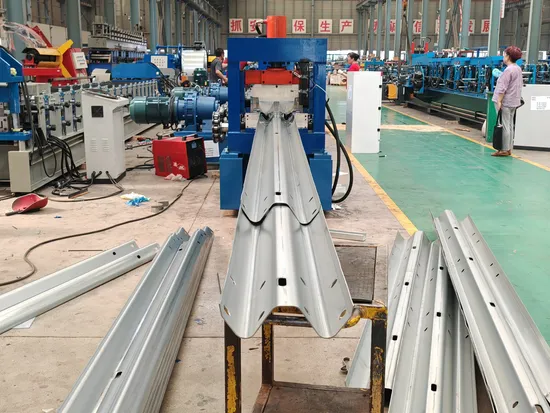

ZKRFM galvanized steel highway guardrail cold bending roll forming machine
A highway guardrail cold bending roll forming machine is a specialized equipment used to produce guardrails for highways and roads. It uses a cold bending process to shape metal coils into the required profile of the guardrail. The machine consists of rollers and press molds that gradually bend the metal, creating a uniform and durable guardrail with high precision. This efficient and automated process ensures the production of high-quality guardrails, meeting safety standards and specifications for road infrastructure. The machine offers a cost-effective and reliable solution for manufacturing guardrails in large quantities to support transportation infrastructure projects.
Basic Info.

item	value
Applicable Industries	Building Material Shops, Manufacturing Plant
Showroom Location	None
Condition	New
Type	Highway Guardrail Roll Forming Machine
Tile Type	Steel
Use	WALL
Production Capacity	12-18 m/min
Place of Origin	Boutou,China
Brand Name	ZK
Voltage	380v
Dimension(L*W*H)	10*1.0*1.7 m
Weight	5000kg
Warranty	1.5 years
Key Selling Points	High Safety Level
Rolling thinckness	0.3-0.7m
Feeding width	715m
Machinery Test Report	Provided
Video outgoing-inspection	Provided
Marketing Type	New Product 2024
Warranty of core components	1.5 years
Core Components	Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC

Detailed Photos




Product Parameters

Strip Parameters
Width:	712mm
Thickness:	0.3-0.7mm
Inside Diameter:	φ430~590mm
Outside Diameter:	≤φ1300mm
Weight:	5T
Texture of Steel coil	G550
Uncoiler
Inside Diameter:	430-590mm
Outside Diameter:	1300mm
Main Molding Machine
Sheet Roller Forming Part:	Used for rolling and bending strip steel gradually in a certain order.
The Total Weight of the Machine:	4.5T
Total Length of Machine:	5.3m x 0.8m x1.2m (Length*width* height)
Molding Pass:	12 Archways; Sets of Spindle Roll Forming; Gears and Archway Structures
Main Driving Mode:	Servomotor : 7.5KW
High production speed:	High Speed: 12-18m/min
Rollers:	Imported material, DC53.CNC center machining,HRC58-62°, accurate grinding
Main Shaft:	40Cr After conditioning processing, accurate grinding
Frame and Roof Mold Stamping:	8 Stations(Pipeline hole, web hole, small edge cut, fixing hole, chamfering, web retrenchment, shearing, stud bolt hole).
Injet Printer:	Double nozzles, both sides of the high waist spray, spray content can be set.
Hydraulic power:	7.5KW
Blade material:	Tungsten steel (imported)
Programmable Logic Controller
Voltage:	380V, 3 Phase 50Hz
Control mode:	19 Inch Touch Computer + 1 electrical control cabinet

Main Products
Our main products include: Roll Forming machine, Glazed Tile Forming Machine, Roof Panel, Wall Panel Molding Machine, C/Z Steel Machine, JCH Roll Forming Machine, Floor Deck Roll Forming Machine, Rolling Shutter Door Forming Machine, Double Color Steel Tile Forming Machine, Shearing Plate and Bending Machine, Composite Plate Production line, other auxiliary equipments, Shaped Tile Pressing Machine and other series products, facing all over the world. Our company's products beautiful and magnificent in appearance, the structure is light and reasonable, tile category variety. Therefore, our products are widely praised by the color steel industries and customer friends of the world.
Our Advantages
Regional Advantages
Zhongke Tile Press Machine Factory is located in China's machinery and casting township-- Botou City. It is well located with Beijing and Tianjin in the north and Bohai Sea in the east. Botou City has developed convenient and multifunctional traffic lines. The main transport lines in Botou are: Beijing - Shanghai Railway, expressways and 104 national road. Zhongke is a manufacturer of tile press machines, we have many years of R & D, design and production of rich industry experience. Nowadays, our company has formed a complete modern management model with great product development and innovation ability. Our products are favored by global customers because of the lightweight structure, novel design and high degree of innovation.
Technological Superiority
After years of practical experience accumulation and industry experts design layout, our company in production, sales, installation, commissioning and provide technical consultation of tile press has great advantages. Our factory is a modern enterprise with strong technical strength and production capacity. Our Company products rely on high quality and low price and good technical performance, in the customer base to harvest good feedback. And we can also according to user requirements for special design and manufacturing, at the same time in the production, installation, commissioning and maintenance of color steel equipment for users to provide one-stop service and technical guidance.
Marketing Service
Our products are sold all over the world, and we have many years of export experience and flexible export advantages. Have a good understanding of different customer needs in developed and developing countries. In addition, we have a special foreign trade team will timely reply to your doubts, senior designers will be in accordance with your wishes or to provide the program design, our skilled technical workers will produce according to your order. Our sales and design staff will carefully listen to your needs and requirements, and completely according to your needs for design and manufacturing, to help you get the ideal equipment and products.
Tag: roof tile roll forming machine, roof panel roll forming machine, cold roll forming machine
Packaging & Shipping

Customer Visit
Company Panorama
FAQ
1.Do you have after sales support? Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.2.How to visit your company?a. Fly to Beijing airport, we can pick you up.b. Fly to Tianjin Airport, we can pick you up.3.How to get a quotation?a. Give me the profile drawing and thickness, this is the important. If not, I will suggest you some.b. Other specific requirements are welcome, such as the speed, power and voltage you want.4.You are trade company or factory?We are factory. Welcome to our workshop for visiting.5.Can you be responsible for transport?Yes, please tell me the destination port or address. We have rich experience in transport.6.How long the machine could be made?Normally speaking, common roll forming machine could be made within 45 working days.If you need machines in a hurry, we can make it for you less than a month.

---
