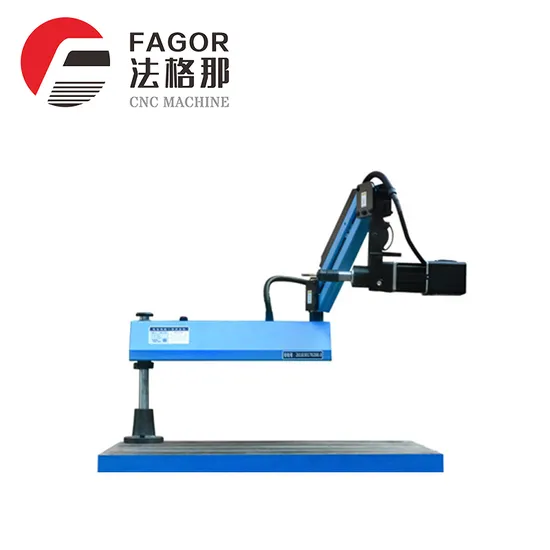

Upgraded Ejection and Air-Blowing Servo Electric Tapping Machine

Product Description

TYPE	Electric M3-M16	Electric M6-M24	Electric M6-M30	Electric M6-M36	Electric M12-M48
APPLICABLE THREAD	M3-M16	M6-M24	M6-M30	M6-M36	M12-M48
CONTROL PANEL	Touch screen	Touch screen	Touch screen	Touch screen	Touch screen
WORKING ANGLE	Vertical	Vertical	Vertical	Vertical	Vertical
	Universal	Universal	Universal	Universal	Universal
WORKING MODE	Vertical/Horizontal	Vertical/Horizontal	Vertical/Horizontal	Vertical/Horizontal	Vertical/Horizontal
	Universal	Universal	Universal	Universal	Universal
WORKING DIAMETER	1M	1.2M	1.2M	1.3M	1.3M
MOTOR POWER	220V/600W	220V/1200W	220V/1200W	220V/1200W	220V/1200W
SPEED	0-312rpm	0-200rpm	0-200rpm	0-150rpm	0-250rpm
CHUCK	8PCS	8PCS	9PCS	11PCS	11PCS
NET WEIGHT	30KG	48KG	48KG	55KG	100KG
OPTIONAL ACCESSORIES: 600x900 Movable worktable, 600x900 Movable worktable with drawer,600kgs permanent magnetic chuck, 1000kgs permanent magnetic chuck,6 inch angle grip vise.

1. This machine adopts servo drive control with intelligent torque protection;
2. The machine uses a variety of processes to use mold castings, which have strong overall rigidity, durability and no deformation, and beautiful appearance;
3. The high-definition touch screen is simple and flexible to operate. It can realize vertical and horizontal work for complex and heavy workpieces, quickly locate and process accurately;
4. There are three working modes of infinitely variable speed, manual, automatic and linkage for you to choose

---
