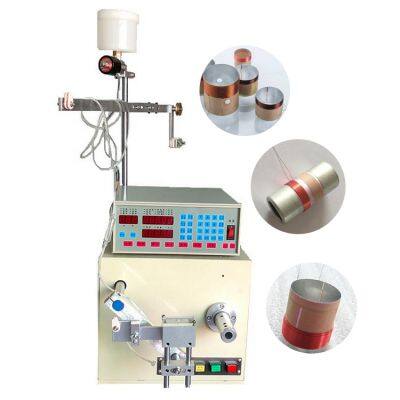

HY-R02 Speaker Voice Coil CNC Automatic Winding Machine

Product Details

Product Description

Product Description
Speaker speaker voice coil winding machine
HY-R02 Speaker Voice Coil CNC Automatic Winding MachineUsing microcomputer design, teaching input, easy data setting;
2. The installation settings can be changed for different occasions, and the scope of use is wider;
3. The winding data is set by the button, which is convenient and accurate, and can reach multi-segment and multi-speed purposes;
4. Adjusting the starting point and width can be input by teaching mode, and the data setting is easy and accurate;
5. The power supply circuit adopts an improved anti-interference circuit, which has stronger anti-interference ability;
6. The winding shaft adopts CPLD decoding speed measurement circuit, which makes the positioning more accurate;
7. The arranging shaft stepper motor is driven by a constant current chopper, with fast arranging speed and high precision;
8. The position of the arranging axis can be input with the teach key, and the current position of the arranging axis can be displayed
9. Automatic forward and reverse winding, synchronous wiring, multi-segment lap count.
10.The installation parameters can be changed for different specifications of machines and use occasions, and the scope of use is wide.
11.Each set of winding procedures independently provides multiple operation and operation mode options, and the operation and application are more flexible.
12. According to customer needs: connect/not connect DC24V 12W bobbin brake.
13.The minimum displacement unit of the cable axis can be set by the button, which can be applied to a variety of screw specifications.
14. Error alarm function, which can display error information and prompt sound
15. Power supply: AC220V±10% mains
16. Part of the machine encapsulating table adopts: fine-tuning function, easy to use in adjustment
17. The wire rack and the wire head are fixed on the wire rod, which can realize the function of synchronous movement
18. Purpose: various switching power supply transformers, supplies, Japanese fonts, inductance coils, relay coils

Applicable diameter	0.02-1.2 mm
Maximum revolutions	6000 rpm
Number of spools	1
Spindle motor	DC brushless
Winding width	0-110
Cable motor	Stepper motor
Maximum winding diameter	150 mm
voltage	AC220V/50HZ
Machine Size (mm)	L750mm*W400mm*H450mm
Machine weight	36kg

---
