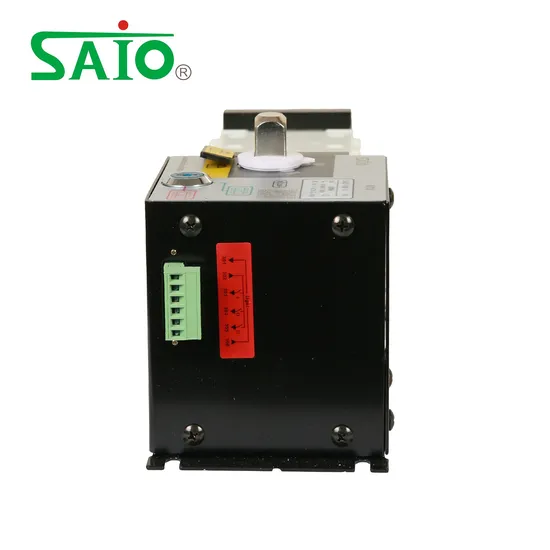

ATS Saq3-100 Mico-off Type CB-Class Dual Power Automatic Transfer Switch ATS

Product Description

Product Description General
Dual Power Automatic Transfer Switching Equipment (hereinafterreferred to as switch) in applicable to AC 50Hz or 60Hz, rated operatingvoltage 400V, rated operating current 63A or below double-looppowersupply system, the conversion to the selectivity between the two-waypower supply according to the requirements, the product with shortcircuit, overload, under voltage, voltage loss protection function, alsowith prepared the fire, double points and output switching signal function.Especially suitable for the need to have fire protection requirements ofoffice buildings, shopping malls, Banks, railway stations, hospitals andhigh-rise building to install fire lighting circuit.

Rated current (Ith)		20 A	40 A	60 A	80 A	100 A	125 A	160 A	250 A	400 A	630 A	800 A	1000 A	1250 A	1600 A
Rated insulation voltage (Ui)		750V								1000V
Rated concussion withstand voltage (Uimp)		8kV								12kV
Rated working voltage (Ue)		AC440V
Rated working current(Ie)	AC-31A	20	40	63	80	100	125	160	250	400	630	800	1000	1250	1600
	AC-35A	20	40	63	80	100	125	160	250	400	630	800	1000	1000	1600
	AC-33A	20	40	63	80	100	125	160	250	400	400	630	800	800	1000
Rated connection capacity		10Ie
Rated breaking capacity		8Ie
Rated limited short circuit current (Is)		50kA								70kA				100kA	120kA
Rated short-time withstand current (Is)		7kA						9kA		13kA		26kA		50kA
Transfer I-II or II-I		0.45s								0.6s		1.2s
Control power voltage		DC24V, 48V, 110V AC220V
Electrical consumption
Rated Start		300W						325W		355W		400W	440W
frequency Normal		55W						62W		74W		90W	98W
Weight(kg) 4 pole		7.0	7.2	7.2	7.2	7.5	7.5	8.8	9.0	16.5	17	32	36	40	43

20A~1600A Installation Dimensions

Specification	Total size							Switch installation											Connection terminal
	A	A1	B	B1	C	E	G	H	J	K	L	N	O	P	R	S	T	U	V	ΦX	Y	Y1	Z
20A	279	243	106	103	169	145	115	19	229	85	7	76	153	30	14	18	2.5	103	20	6	41	94	3
40A	279	243	106	103	169	145	115	19	229	85	7	76	153	30	14	18	2.5	103	20	6	41	94	3
63A	279	243	106	103	169	145	115	19	229	85	7	76	153	30	14	18	2.5	103	12	6	41	94	3
80A	279	243	106	103	169	145	115	19	229	85	7	76	153	30	14	18	2.5	103	12	6	41	94	3
100A	279	243	106	103	169	145	115	19	229	85	7	76	153	30	14	18	2.5	103	12	6	41	94	3
125A	322	300	135	128	230	189	115	10	284	102	7	91	190	36	20	25	3.5	127	18	9	55	125	4
160A	322	300	135	128	230	189	115	10	284	102	7	91	190	36	20	25	3.5	127	18	9	55	125	4
250A	406	362	163	142	230	189	143	4	343	80/102	7	91	252	36	25	30	3.5	142	15	11	57	125	11
400A	552	433	234	222	230	273	189	14	416	180	9	93	323	50	40	38	5	222	18	13	83	193	19
630A	552	433	250	222	284	273	189	14	416	99/180	9	93	323	65	40	45	6	222	18	13	83	193	19
800A	760	633	328	250	284	350	443	28	613	220	11	87	526	65	60	64	8	250	31	13	109	254	54
1000A	760	633	328	250	363	350	443	28	613	220	11	87	526	120	60	64	8	250	31	13	109	254	54
1250A	760	633	336	250	363	350	443	28	613	220	11	87	526	120	80	68	8	250	21	13	110	254	54
1600A	760	633	336	250	363	350	443	28	613	220	11	87	526	120	80	68	10	250	21	13	110	255	54

Packaging & Shipping

Package Size	30.00cm * 20.00cm * 20.00cm
Package Gross Weight	5.000kg
