Midea Vrf Aire Acondicionado Hibrido 40HP 112kw Residential HVAC System Vrv Air Conditioner for Home

Negotiable 1 Piece (MOQ)

Basic Info.

Model NO.
Mv6-1120wv2gn1
Usage
Room
Indoor Machine Noise
>50dB
Certification
CE, CCC, RoHS
China Energy Efficiency Standard
Level 4
Cooling/Heating
Cooling/Heating
Power Source
Electrical
Power Type
DC
Condition
New
Name
Midea Vrf Aire Acondicionado Hibrido 40HP 112kw Re
Model No.
Mv6-1120wv2gn1
HP
40
Eer
3.41
Cooling Capacity
25.2kw-270kw
Heating Capacity
25.2kw-270kw
Brand
Midea
Fan Motors Type
DC
Refrigerant Type
R410A
Power Input
5.3kw-93.1kw
Connectable Indoor Unit
64
Compressors Type
DC Inverter
Power Supply
380-415V
Ambient Temp Cooling
-5-54
Ambient Temp Heating
-25-24
Transport Package
Seaworthy Fumigated Wooden Crate
Specification
1100*2000*1000
Trademark
Midea
Origin
China
HS Code
8415
Production Capacity
50000piece/Year

Product Description

Midea VRF aire acondicionado hibrido 40HP 112kw residential hvac system airconditioner sandlot vrv air conditioner for home
Midea MBT Introduction
Midea Product Portfolio
Products Show
Product Details

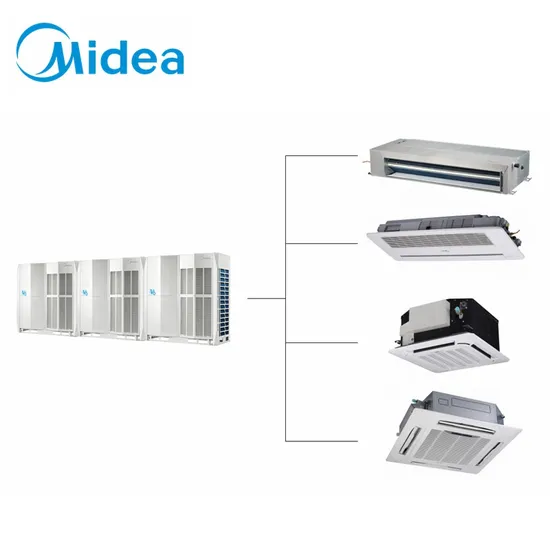

As the leading VRF product, V6 boasts substantial benefits such as the combination capacity
can be up to 96HP which is leading in HVAC industry; EVI compressor significantly increases
heating and cooling capacity under extreme conditions, EMS realizes that evaporating
temperature (in cooling) and condensing temperature (in heating) are automatically adjusted
according to both indoor and outdoor temperature to maximize the comfort and energy
efficiency. Besides, the intelligent control system adds more value to V6 product.
Capacity 8HP-96HP
Power supply 380-415/3/50(60)V/Ph/Hz
Cooling Capacity 25.2KW-270KW
86-921kBtu/h
Power input 5.3-93KW
EER 4.75-2.85kW/kW
Heating Capacity 25.2KW-270KW
86-921kBtu/h
Power input 4.6-77KW
COP 5.5-3.5kW/Kw
Compressors Type DC inverter
Fan motors Type DC inverter
Max. ESP 20 default(Pa)
Refrigerant Type R410A
Aiflrow rate 11000-75000 m3/h
58-68dB(A)
Ambient temp Cooling -5 to 54ºC
Heating -25 to 24ºC

Product Advantages
1.Wide Capacity Range
Starring at 8HP, capacity increase in 2HP increments up to 96HP, which is the world's largest
single-system VRF capacity.
2. Wide Operation Range
The V6 VRF can Operation stably in a wide ambient temperature range: from -5ºC to 54ºC in
cooling mode and from -25ºC to 24ºC in heating mode.
3. Long Piping Capability
4. Oil Balance pipe not required
With the new oil management system, there is no need of oil balance pipe.
