Factory Price Wheel-Rolled Planetary Mixer for Sludge Work

US$10,000.00
1-2 Sets
US$9,800.00
3-9 Sets
US$9,200.00
10+ Sets

Basic Info.

Type
Concrete Mixer
Shotcrete Type
Dry
Machining Process
Welded Molding Machine
Structure
Rotor Type
Productivity
180m²/h
Feeding Height
1390mm
Vibrating Amplitude
2.4mm
Certification
ISO9001: 2000, CE
Condition
New
Color
Accordingly
Name
Planetary Concrete Mixer
Item/Type
MP 500
out Capacity(L)
500
Input Capacity(L)
750
out Weight(Kg)
1200
Mixing Power(Kw)
18.5
Lifting Power(Kw)
4
Planet/Blade(Nr) One Mixing Shaft with T
2
Side Scraper(Nr)
1
Discharging Scraper(Nr)
1
Weight(Kg)
2400
Dimension (L*W*H, mm)
2230*2080*1880
Transport Package
Laminated Packaging
Specification
accordingly
Trademark
SDCAD
Origin
China
HS Code
8474900000
Production Capacity
5000 Sets/Month

Product Description

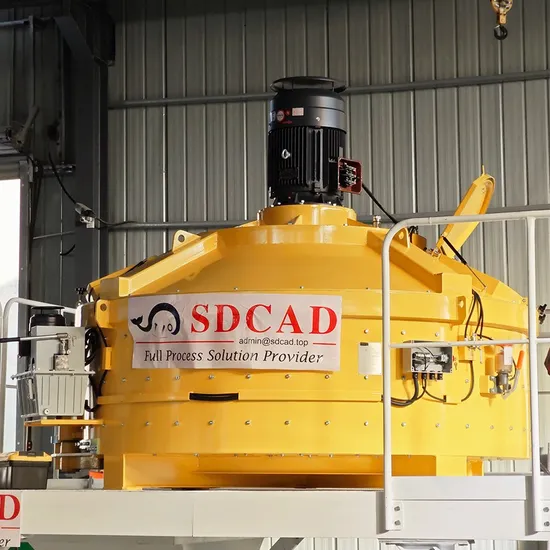

Brief Description Of Planetary Concrete Mixer
MP series planetary concrete mixer used for mixing concrete .Planetary Concrete Mixers widely apply to produce precast concrete, common commercial concrete and high performance concrete.
It is suitable for mixing dry hard concrete. It's widely used in the production of building blocks and prefabricated parts, and also can be used to produce of steel fiber reinforced concrete, colorconcrete and dry mortar, etc.

Mixing Locus Diagrams
This diagrams show the perfect mixing action of the DEX planetary mixer from 5 to 60 seconds after material is added. Note that the floor is completely swept by the mixing stars action every 4 revolutions (6 seconds) and that each zone is covered at regular intervals in time.
Product Parameters
Model MP330 MP750 MP1 000 MP1 500 MP2000 MP2500 MP3000
Output Capacity (L) 330 750 1000 1500 2000 2500 3000
Input Capacity (L) 500 1125 1500 2250 3000 3750 4500
Input Mass (kg) 800 1800 2400 3600 4800 6000 7200
Mixing Power (kw) 15 30 37 55 75 90 110
Lifting Power (kw) 4 7.5 11 15 22 -- --
Skipper Capacity (L) 580 1300 1740 2610 3480 -- --
Skipper Mass (kg) 870 1950 2610 3615 5220 -- --
Weight (kg) 170 3500 6000 7000 8500 10500 11000
Dimension (mm) 1910 *
1590*
1747		 2581*
2336 *
2195		 2891*
2602*
2217		 3223*
2902*
2425		 3625*
3230*
2630		 2893*
3550*
2695		 3893*
3550*
2975
