HC-S009 Advanced Computer Cardiopulmonary Resuscitation Training Simulation Human /CPR Training Manikin

Product Description

Product Description
HC-S009 Advanced Computer Cardiopulmonary Resuscitation Training Simulation Human /CPR Training Manikin
Product Description
Features for the HC-S009 Advanced Computer Cardiopulmonary Resuscitation Training Simulation Human /CPR Training Manikin:
This product combines the 2015 international cardiopulmonary resuscitation standard, product features are fully upgraded, the importance of strengthening chest compressions, the use of a new generation of materials, more in line with the actual clinical CPR operation requirements. With a new generation of materials, it is durable and durable, and it is more than a new standard in the 15th edition. The anatomical features are obvious, the feel is real, the skin color is uniform, the shape is realistic, and the appearance is beautiful.
Executive Standards: American Heart Association (AHA) 2015 International Cardiopulmonary Resuscitation (CPR) & Cardiovascular Emergency (ECC) Guidelines
Features:

* Wireless connection: The analog person and the monitor are wirelessly connected via wifi. You can perform chest compressions, airway opening, and artificial respiration. Simulate vital signs: In the initial state, the simulated pupil dilated and the carotid artery did not beat. During the compression process, the human carotid artery is passively beat, and the beat frequency is consistent with the compression frequency. After the successful rescue, the simulated pupil recovered to normal and the carotid artery autonomously beat. Three modes of operation: CPR training, simulation assessment and practical assessment. Method 1: CPR training, can be pressed and blown. Method 2: Mode assessment, according to the 2015 International Cardiopulmonary Resuscitation Standard, the ratio of pressing and blowing 30:2 is completed within 5 hours. Method 3: Actual assessment, within the set time frame, according to the 2015 International Cardiopulmonary Resuscitation Standard, complete the pre-set assessment calculation standard. The teacher can set the operating time range, the number of cycles, the proportion of pressing and blowing. Strengthen the awareness of the student's first-aid operation process, and add five simulated event operations in the first-aid procedure, including consciousness judgment, emergency call, pulse check, check breathing and remove foreign bodies in the mouth. Simulate the entire emergency operation process.

*Tactile sensing:
The simulated person's own tactile sensing system: the "consciousness discrimination" and "pulse discrimination" events can be realized in the simulated person and automatically recorded in the entire emergency operation process. "Discrimination of consciousness" is to pat the shoulder, and "pulse discrimination" is to detect the pulse by pressing the carotid artery. These two operations are displayed in real time on the display. Counted in the final grade print.
Display function:
The display shows the simulated human operation data in real time, including the airway open state, the correct and error operation of pressing and blowing, the correctness and error of the pressing part, and whether the blowing amount and the pressing depth are in the correct range.
Voice prompt: The whole Chinese voice prompt in training and assessment can turn the voice on and off and investigate the volume of the festival.
The system plays 100 beats/minute of the beat sound to help train the trainees to master the time and press frequency.
Barcode shows the depth of compression, the correct compression depth is more than 5cm, no more than 6cm.
When the compression depth is too small, the barcode is yellow.
When the compression depth is appropriate, the barcode is green.
Barcode shows the amount of air blowing: 500ml/600ml-1000ml
When the amount of blown air is too small, the barcode is yellow.
When the blowing volume is appropriate, the barcode is green.
When the blowing volume is too large, the barcode is red.
When the prompt tone is: “Blowing into the stomach”, it means that the amount of blowing is too large or the blowing is too fast.
You can set the operation time in seconds. The maximum time can be set to 9:59.
* CPR parameter setting: set directly on the controller. Contains the following parameters:
CPR cycle number, total number of blows to be completed, total number of presses to be completed, minimum allowable operation time, maximum allowable operation time, first-aid operation to be completed, and opening and closing of the beat sound
Operating frequency: 100-120 times / min or more.
* Power status: Power status: 220V power input, through the built-in lithium battery voltage regulator output, to achieve the effect of side charging, suitable for large outdoor outdoor power supply training.
Printer function:
You can select the operation data when printing.
Select the print operation after the operation ends.
The transcript covers the operation mode, consciousness judgment, emergency breathing, pulse check, check breathing, remove foreign matter, the number of presses and blows in each cycle operation, the number of correct/errors, the cause and number of press errors, and the blow Reasons and times of correct/wrong, cause of blow error, set time, operation time and assessment.
RF remote control function: Includes the following three panel functions
First-aid events: including the five functions of consciousness recognition, emergency call, pulse detection, sensing of breathing, and removal of foreign objects, which represent the input of corresponding events during the first-aid process. During the student's operation, the student can perform this operation.
Operation buttons: For function control buttons, for example: start button, return, print, the same function as the corresponding button on the analog controller panel. Control the simulator's first aid operations.
Simulated person control: The state of the simulated person can be controlled at any time. The Eye controls the simulated pupil display state, switching between normal and amplified. Hand controls the simulated pulse state and switches between pulses

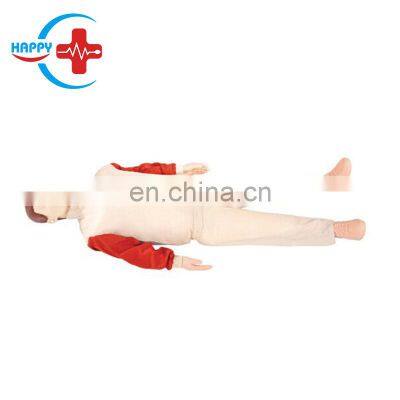

Pictures for HC-S009 Advanced Computer Cardiopulmonary Resuscitation Training Simulation Human /CPR Training Manikin:

Packaging & Shipping
Company Information
Our Services
Contact
FAQ
1. How to place order of HC-S009 Advanced Computer Cardiopulmonary Resuscitation Training Simulation Human /CPR Training Manikin?
A: Firstly we confirm product details and then send the Proforma Invoice,
You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram,
after we confirm your payment then ship the product to you once finished production.
2. For HC-S009 Advanced Computer Cardiopulmonary Resuscitation Training Simulation Human /CPR Training Manikin product, What’s the minimum order quantity (MOQ)?
A: For disposable material,We have our own MOQ,For our HC-S009 Advanced Computer Cardiopulmonary Resuscitation Training Simulation Human /CPR Training Manikin our MOQ:1pc,
3. What is your warranty?
A: For most products the warranty is for 12 months, some products we provide 18 months warranty.
For HC-S009 Advanced Computer Cardiopulmonary Resuscitation Training Simulation Human /CPR Training Manikin we provide 12 months warranty.
4. What’s your delivery time?
A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production,
And also the delivery time depands on quantity. For HC-S009 Advanced Computer Cardiopulmonary Resuscitation Training Simulation Human /CPR Training Manikin the delivery time is 10 working days .
5. How to ship the product?
A: The shipping way normally depand on your quantity,total CBM and weight.
We have our own shipping company to provide best shipping cost and efficient way.

---
