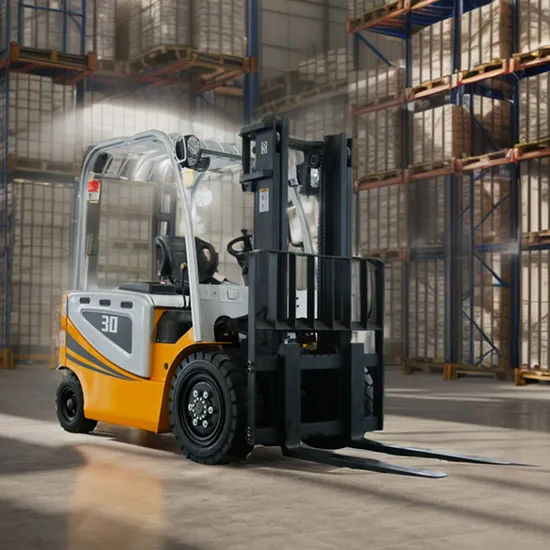

Basic Info.
Product Type
Electric Battery Forklifts
Transport Package
Container
Specification
2390*1160*2030mm
Production Capacity
2000pieces/Year
Product Description
Product Description
| Model | 10E | 15E | 20E |
| Rated capacity(kg) | 1000 | 1500 | 2000 |
| Rated lifting height(mm) | 3000 | 3000 | 3000 |
| Battery | 60V/120Ah | 60V/140Ah | 60V/210Ah |
| Battery weight(kg) | 150 | 165 | 300 |
| Total weight(with battery)(kg) | 1530 | 2150 | 2500 |
| Load center distance(mm) | 500 | 500 | 500 |
| Performance |
| Lifting speed,laden/unladen(mm/s) | 220/230 | 200/220 | 180/200 |
| Lowering speed,laden/unladen(mm/s) | 550 | 550 | 550 |
| Drive motor(kw) | 5 | 5 | 5 |
| Lift motor(kw) | 4.5 | 4.5 | 4.5 |
| Tilt of the mast,F/R(°) | 5/10 | 5/10 | 5/10 |
| Service brake/parking brake | Hydraulic/Mechanial | Hydraulic/Mechanial | Hydraulic/Mechanial |
| Size |
| Wheelbase(mm) | 1330 | 1550 | 1550 |
| Body size(L*W*H mm) | 1980*1020*2017 | 2230*1096*2030 | 2230*1096*2030 |
| Fork size(T*W*L mm) | 32*100*1070 | 35*100*1070 | 40*100*1070 |
| Turning radius(mm) | 2050 | 2200 | 2280 |
| Groubd clearance under mast(mm) | 77 | 88 | 88 |
| Model | 25E | 30E | 50E |
| Rated capacity(kg) | 2500 | 3000 | 5000 |
| Rated lifting height(mm) | 3000 | 3000 | 3000 |
| Battery | 72V/210Ah | 72V/260Ah | 80V/500Ah |
| Battery weight(kg) | 360 | 430 | 1100 |
| Total weight(with battery)(kg) | 3150 | 4150 | 7100 |
| Load center distance(mm) | 500 | 500 | 500 |
| Performance |
| Lifting speed,laden/unladen(mm/s) | 210/250 | 200/300 | 250/280 |
| Lowering speed,laden/unladen(mm/s) | 450 | 450 | 450 |
| Drive motor(kw) | 9 | 9 | 18 |
| Lift motor(kw) | 7.5 | 9 | 25 |
| Tilt of the mast,F/R(°) | 5/10 | 5/10 | 6/12 |
| Service brake/parking brake | Hydraulic/Mechanial | Hydraulic/Mechanial | Hydraulic/Mechanial |
| Size |
| Wheelbase(mm) | 1600 | 1850 | 2040 |
| Body size(L*W*H mm) | 2390*1160*2030 | 2700*1225*2057 | 2990*1585*2340 |
| Fork size(T*W*L mm) | 40*100*1070 | 45*122*1070 | 55*150*1070 |
| Turning radius(mm) | 2370 | 2680 | 2700 |
| Groubd clearance under mast(mm) | 88 | 82 | 160 |
Features 1.Mechanical joystick, easy to operate.
2.Thickened mast, strong bearing capacity.
3.Hydraulic power steering wheel, easy to drive.
4.LED light, high brightness, energy saving.
5.Engineering rubber tires, suitable for various road surfaces.
6.Electrophoretic spray paint, smooth and not easy to rust
Company Profile
FAQ Q: How long is the machine warranty time?
A: One year.
Q: Are you original manufacturer?
A: Yes. We are manufacturer of construction machines.
Q: What is the terms of payment?
A: :Normally, we accept 30% advance, 70% should be paid after finished the machine, L/C at sight.
Q: What is the delivery time ?
A: Generally we need 3-5 days to produce the machine after prepayment ,if you are urgent , 2 days will be ok ,then send to port.
Q: How should we do if the machine broken ?
A: You can take a video to us and our technicians will analyze the cause of the problem based on the video.
Q: How should we do if parts are broken ?
A: We advise customers to purchase some conventional accessories based on their country and environment. If other parts broke ,we will send to you by sea or by air.
Q: Can the machine use the trademark of our own company?
A: Yes ,sir ,of course.
>>
