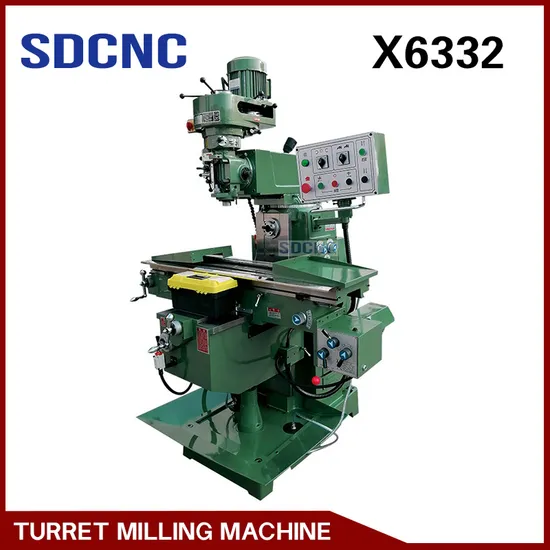

X6332 Horizontal Turret Milling Machine for Metal

Product Description

The main performance characteristics:
1. Has the advantages of compact structure, small volume, high flexibility, milling head can rotate left and right 90 degrees, 45 degrees before and after rotation, rocker can not only before and after the expansion, and can make a 360 degree rotation in the horizontal plane, greatly improving the effective working range of machine tools. 2 the body is made of high precision cast iron, which has high precision and long service life. 3 Main shaft is made of chromium molybdenum alloy, and is equipped with precise angular contact bearing, After quenching and tempering treatment and precision grinding, high precision and high precision. Large Spindle speed range, high speed ,Spindle sleeve can be motor fixed range, and equipped with overload protection device. 4. It can be widely used for processing plane, inclined planes with arbitrary angle, keyway milling, grooves, can also turn, reaming, boring, and so on, optional mechanical feed device and a digital display system. Application: 1, Universal radial milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling. extensive use of performance 2, Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. 3, Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment. Product Parameters
Product main technical parameters:

Specifications	Units	X6332C
Table size	mm	1500x320
Table stroke	mm	950/320/300
T-type slot numbers / width /space	mm	5-14-70
Distance between spindle nose to table surface (vertical)	mm	155-455
Distance between spindle axis and column surface (vertical)	mm	200-500
Distance between spindle nose to table surface (horizontal)	Mm	0-300mm
Distance between spindle axis and column surface (horizontal)	mm	190mm
Spindle speed range	rpm	Vertical 66-4540(16steps), Horizontal 60-1350(12steps)
Table feed speed (vertical/horizontal)	Mm/min	22-555(8steps) 810(fast)
Worktable speed (vertical)	Mm/min	560
Spindle travel (vertical)	mm	120
Spindle taper(V/H)		ISO40
Spindle motor power vertical	KW	3.7
Spindle motor power horizontal	KW	2.2
Worktable feed motor power	KW	0.75
Worktable lifting motor power	KW	0.75
Coolant pump flow	L/min	12
Overall dimensions	mm	1700x1520x2260
Machine weight	Kg	1500/1650

---
