US$43,000.00-65,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Ceramics, Glass, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
Type for Grinding Machine
Disc Grinding Machine
Grinding Machine Type
Vibration Polishing Machine
Grinding Method
Wet Grind
Certification
API, ISO, CE
Polishing Slab Thickness
15-50mm
Air Cylinder
Germany Airtec
PLC
Mitsubishi / Panasonic
Transport Package
Fully Wrapped with Waterproof Membrane, 1 40FT Gp
Specification
9200X2200X2200mm
Origin
Quanzhou City, China
Production Capacity
100sets Per Month
Product Description

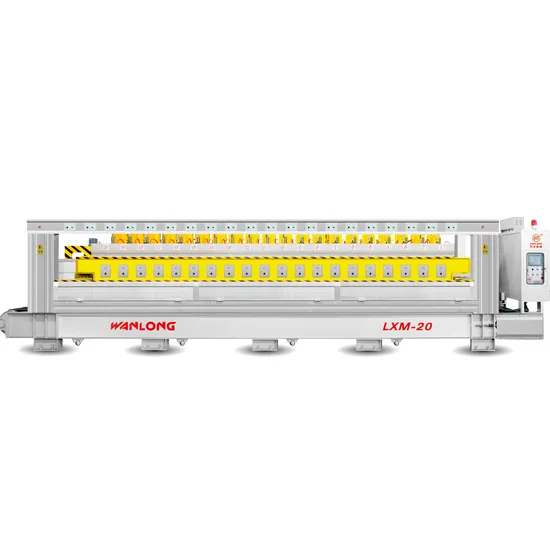

Fully Automatic Stone Line Polishing machine
Parameters:
Main motor power: 16x7.5KW+ 4x9KW
Max.working width: 1300mm
Voltage: 380V, 50HZ
A) Electric Part
From Indian well-known brand: PLC from Mitsubishi, Inverter from Yaskawa, Contactor from Fuji
B) Pheumatic Fittings
From Taiwan well known Brand Yade Ke, including Cylinder, solenoid valve regulator, pressure gauges, throttle valves
C) Main Motor From Siemense
D) Bearing for Spindle Box
From Japaness well known brand NSK
E) Linear Guide from Taiwan Hiwin, among the best manufacturer in the line
F) The complete machine include the main part polishing system, the loader and unloader, the air tank, air compressor, the dryer and also the transforming shelf.
Technical Parameters
|
Model
| LXM-10
| LXM-12
| LXM-16
| LXM-20
|
Working wideth (Optional)(mm)
| 500-1300
| 500-1300
| 500-1300
| 500-1300
|
Thickness (mm)
| 15-50
| 15-50
| 15-50
| 15-50
|
Conveyor Speed (m/min)
| 0-2.6
| 0-2.6
| 0-2.6
| 0-3.0
|
Polishing Heads Number (pcs)
| 10
| 12
| 16
| 20
|
Water consumption (m3//h)
| 11
| 13
| 18
| 22
|
Air Consumption (m3/h)
| 12
| 14
| 19
| 24
|
Main Motor Power (KW)
| 8x7.5kw+2x9kw
| 9x7.5kw+3x9kw
| 12x7.5kw+4x9kw
| 16x7.5kw+4x9kw
|
Total Power (KW)
| 88.5
| 105
| 135
| 162
|
Dimension (LxWxH) (m)
| 5960x2200x2200
| 6600x2200x2200
| 7900x2200x2200
| 9200x2200x2200
|
>>
