YBGA688AT intelligent sectional warping machine incorporates cutting-edge technology to revolutionize the textile industry.
Designed with precision and efficiency in mind, the YBGA688AT boasts a range of advanced features that set it apart from traditional warping machines.
Equipped with dual-disk, pillar-less yarn creel, infrared auto-stop mechanism, three-roll parallel pressure device, and automatic displacement measurement system, this machine ensures constant tension and fully automated operation. Gone are the days of manual displacement calculations, as the YBGA688AT streamlines the process for unparalleled convenience.
One of the standout features of this new model is its dual-motor reverse winding system, tailored to accommodate high-tension yarns such as single filament and long filament threads. With a maximum beaming tension of up to 60000N, the YBGA688AT guarantees smooth and stable beaming, even for the most demanding applications.
Furthermore, the hydraulic lifting system facilitates the effortless descent of weaving shafts with diameters of 1000mm and 1250mm, providing optimal support for subsequent processes such as rapier looms and air jet looms. This ensures seamless integration and enhanced productivity across the textile production line.

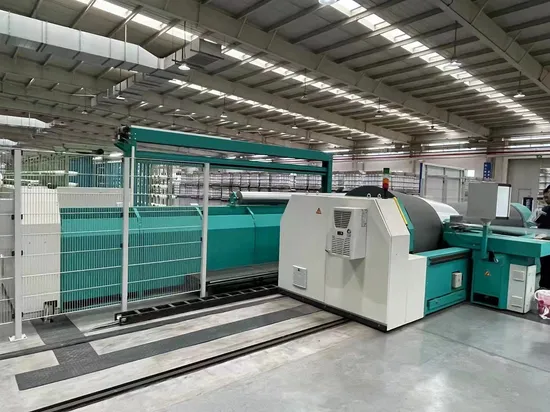

The most important point, considering the personal safety of workers during operation, WETEX replaces the traditional infrared safety bar with an infrared safety fence, and workers can control the start and stop of the machine by operating the buttons on the safety fence. WETEX has been committed to the concept of machines to better serve people to innovate and design products.
| Specifications of Model YBGA688-4000 intelligent sectional warping machine |
| Warping machine |
| 1 | Frame | welded steel bar |
| | Machine movement | 1.5KW servo motor (SIMENS) drives the roller directly |
| 2 | Drum | steel |
| | Drum Diameter | 1026mm |
| | Drum length | 4100mm (working width 4000mm) |
| | Cone angle | 7.125° |
| | Cone length | 1610mm(full warpingφ1000mm beam) |
| | Drum balance | ≤0.10mm |
| 3 | Drum drive | |
| | Motor | 15kw (SIMENS) three-phase asynchronous motor |
| | Inverter | 30kw (SIMENS) Shared with beaming machine |
| | Speed | 0~800m/min |
| | Speed error | Less than 0.5% |
| | Speed fluctuation | ±0.2% |
| | Main bearing | S KF |
| 4 | Warping operation table traversing | |
| | Drive | Fixed by the ball screw and servo motor drives nut(SBC) |
| | Guide rails | Ball linear guide rails(double rails SBC) |
| | Servo motor | 0.75kw AC servo motor (SIMENS) |
| | Servo drive | 0.75kw AC servo motor (SIMENS) |
| | Strip traversing speed | 0.001~9.999mm/r |
| | Strip traversing response | Responded upon 1/1024 rotation of the drum |
| | Strip traversing precision | 0.02% |
| | Strip location | automatic |
| 5 | Backwards & forwards of warping operation table | Servo motor, ball screw driven(SBC) |
| | Driven Motor | 1.5kw AC servo motor (SIMENS) |
| | Driver | 1.5kw AC servo motor (SIMENS) |
| | Guide rails | Ball linear guide rails(double rails SBC) |
| | Work way | Equal distance winding |
| | Space reed movement | Forwards and backwards movement by rodless air cylinder with linear guide rail(Germany FEST O) |
| 6 | Brake of drum | clamping brake 4pcs |
| | Brake medium | special braking liquid |
| | Brake control way | Automatic control according to the speed |
| | Braking distance | ≤3 m (with a speed of 500m/min) |
| | Beaming tension close-loop control | Precision proportional valve |
| | Value setting way | Set the inner and outer circle air pressure values of the beam |
| | Setting range | Air pressure range 0~6.00 bar |
| | Control way | Linear change from the inner circle(beginning of the winding) to the outer circle(end of the winding) or constant tension optional |
| 7 | Machine safety protection | Infrared protection |
| 8 | Main controller | SIMENS S7-200 1PC |
| 9 | Operational display | 10.4inch Eview colorful touch screen |
| | Display technical data | Warp length, piece length, strips, speed, low speed, displacement, strip width, count of displacement etc |
| | Function setting | Shift, whether piece length stop, yarn broken memory, clear motor switch, blowing switch etc |
| | Information function | Manual instruction, maintenance instruction, alarm information, production information etc |
| | Adjusting and maintenance function | Switch inspection, brake air pressure inspection, brake function inspection, left and right movement inspection etc |
| 10 | Pneumatic element | air valve ( FEST Ofor beaming tension, Others use JELPE) |
| 11 | Button | Schneder |
| 12 | Encoder | axle hole and drum mounted(Schneder) |
| 13 | AC contacter | Schneder |
| 14 | Operating Voltage | 380V, 50HZ or adjust accordingly |
| Beaming machine |
| 1 | Type | whole machine fixed |
| 2 | Frame | welded steel bar |
| 3 | Beam drive | belt wheel decelerating drive |
| | Winding direction | C.W or CCW, can be set when it install |
| | Motor | 30kw (SIMENS) three-phase asynchronous motor |
| | Inverter | 30kw (SIMENS) shared with warping machine |
| | Beaming speed | 0~150m/min |
| | Beaming tension | 0~8000N |
| | Speed deviation | ≤0.5% |
| 4 | Beam brake | steel tape brake |
| 5 | Load/drop beam | hydraulic load/drop beam device |
| 6 | Safety device | safety bar and infrared guard device |
| 7 | Operational display | 10.4inch Eview colorful touch screen |
| 8 | Guide roller | φ250mm |
| 9 | Pneumatic element | Relief valve and pressure gauge ( FEST O Germany) |
| 10 | Operating Voltage | 380V, 50HZ |
| Pneumatic reed |
| 1 | Frame | welded steel bar |
| 2 | Reed | special stainless steel reed |
| 3 | Up & down lease reed control | sleeve cylinder |
| 4 | Clamp yarn controller | revolving cylinder |
| 5 | Warp yarn layer | Shield layer(steel) |
| 6 | Location | automatic, moving up & down during warping |
| Creel |
| 1 | Type | H Type |
| 2 | Pitch | 280*280 |
| 3 | Layer | 8 |
| 4 | automatic stop device | Infrared automatic stop |
| 5 | spindles | 640 |
| 6 | Tension device | Double-disc without column tensioner (similar with benninger) |
