CNC Double Column Vertical Lathe Machine/Vertical Turning Center

Product Description

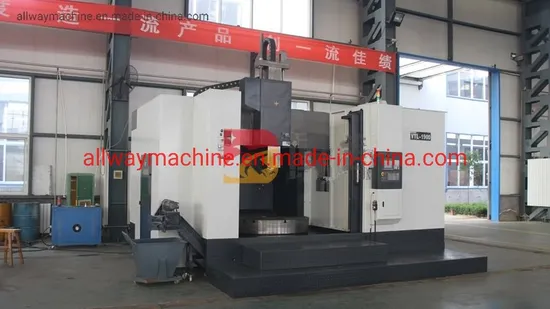

CNC Double Column Vertical Lathe
Suitable for processing disc type workpieces, widely used in ships, metallurgy, electric power, petroleum, engineering machinery (bulldozers, excavators, etc.). It has excellent performance for grooving, threading, chamfering, boring, reaming and other processes.

Specifications			VTL1600	VTL1900
Max. Turning diameter			1600mm	1900mm
Max. Swing diameter			1900mm	2000mm
Worktable diameter			1400mm	1600mm
Max. Weight of work piece			5T	8T
Speed range of worktable			7-200r/min	7-220r/min
Travel of toolpost	Horizontal		1600mm	1600mm
	Vertical		1000mm	1000mm
Magazine capacity			16pcs	16pcs
Tool holder			BT50	BT50
Max. Tool weight			15kg	15kg
Max. Tool length			100mm	100mm
Range of toolpost feed			1-200mm/min(stepless)	1-200mm/min(stepless)
Rapid feed of toolpost		Horizontal	6000mm/min	6000mm/min
		Vertical	4000mm/min	4000mm/min
Power of main motor			30-37kw	30-37kw
Weight			16T	20T
Overall dimensions			4900×2800×3400mm	6000×4600×4300mm

Powerful Milling and Turning System Adopts the latest tool selection systems, the fastest servo turret, 3-disc clutch gear positioning and fast hydraulic locking. Tool-to-tool change 0.2 second. Powerful drilling, milling, turning, tapping as well as end milling capabilities for high efficiency integrated machining.
High Speed and High Precision Hydraulic C am Turret Holds 10 tools, 0.3 second tool change, repeatable accuracy up to 0.002mm.
High Accurate CS Indexing Spindle System High accuracy CS indexing spindle driven by CS high accuracy servo motor, high resolution feedback device. OUR SERVICE Pre-sale service
1. Our professional and experienced engineer team helps every client to find his most suitable equipment or chose of plant.
2. Any kind of legal logo printing or design are available.
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
After you choose:
1. We will make drawing and show you how the pant looks.
2. Every equipment will be checked carefully before packing. Video on machine testing is available.
3. Email you the tracking no., and help to chase the container until it arrives you.
After-sale service
1. We are very glad that customers give us some suggestion for price and products.
2. If you have any question, please contact us freely by E-mail or Telephone. FAQ Q. What is your payment term?
A: T/T 30% down payment, balance to be paid before shipment.
Q: What is your main market?
A: South America, Eastern Europe, Southeast Asia, Africa, Oceania, Eastern Asia
Q: What is your producing time?
A: Producing time depends on that machines you ordered. Usually takes 45 days.
Q: What documents you can offer?
A: We can offer invoice, packing list, contract, instructions, customs declaration, certificate of origin, CE. If client need other documents, specifications, please confirm with service staff.
Q: If equipments have some quality problem, how would you deal with?
A: We will responsible for all the quality problems. We will check the machine to get the problem. If need parts, will send them to you.
Q: How to install the equipments?
A: We send 1-2 engineer (100USD/person/day) to the local plant for helping install and commissioning equipments. To save time, our service stuff will tell you what to prepare in advance. We can also teach the workers to how to use the machines and how to make the products better.

---
