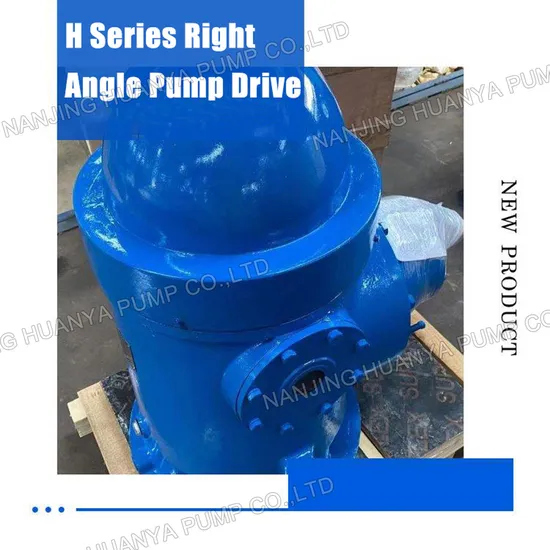

Right Angle Drive Gearbox for Diesel Engine Vertical Turbine Pump

Product Description

Product Description
Characteristics and Applications
Series H Right Angle Gear Box can transfer the power from horizontal shaft of the prime motor to vertical shaft, which has the advantages of economy, high efficiency, space saving, and suitability for various kinds of environmental conditions. A variety of models and transmission ratios can meet the requirement of any high or low speed engine.
By equipped with diesel engine, horizontal motor, or turbine, Series H Right Angle Gear Box is applied to the transmission and speed changing of a variety of vertical pumps, such as long shaft pump, deep-well pump, diagonal flow pump, axial flow pump, submerged pump, and etc, as well as other vertical shaft machinery. Due to the direct bearing capacity of the possible axial force from the working machinery, Series H Right Angle Gear Box can simplify the structure of the machine. In practice, Series H Right Angle Gear Box is widely used in farmland irrigation, water conservancy project, municipal projects, metallurgy and mine, petrochemical industry, fire protection, oceaneering, and etc.
1. Main Structure
Anti-reversal Device (Standard parts of hollow shaft)
High strength cast iron box
Window for checking the lubrication of the gear
Hollow shaft
Oil Cooler with upper and lower flushing screw holes
Outdoor light-duty shield
Pressure lubrication thrust bearing
Spiral bevel gear with low noise and big torque
Bearing
Lip-type oil seal
Bearing pressure lubrication with positive displacement oil pump

2. Performance
2.1 Series H Right Angle Gear Box adopts bevel gear with the standard of Gleason tooth, which make the gear have a high level of bearing capacity and work smoothly. Besides, it is also not sensitive to the installation error to deformation and the axial thrust is large.
2.2 Gear is made of 20CrMnTi steel and the surface is processed with carburizing and quenching, which make the surface with high hardness and make the core with good toughness.
2.3 Rotation direction: Horizontal shaft rotates clockwise by looking from the head, vertical shaft rotates counterclockwise by looking from top down. If require different direction of rotation, please put forward before order.
3. Operation
3.1 The rotation direction of prime motor must be accordant with the rules, otherwise, the gear box will not be able to run and may also cause damage due to the stop action of anti-reverse mechanism. If the prime motor is electromotor, must check whether there is any change on the direction of rotation when next start.
3.2 The output power of prime motor should not be greater than the corresponding power value. Different models of gear box have different limitation for the highest speed of vertical shaft, please do not exceed the prescribed highest speed. The input speed of horizontal shaft is no more than 3650 r/min.
3.3 The downward pull from the working machine on the gear box shall not be lower than the given minimum axial thrust. This pull should also be lower than the given maximum axial thrust, otherwise, it will shorten the service life of upper bearing.
3.4 After the first time of adding oil or changing oil, should remove oil-way bolt to check oil level before the start of second shift; when the level is below then the thread bottom, should refueling oil. Later in the case of no leak, should check the oil level once a week.
3.5 When the gear box is working, should observe the injection of lubricating oil in time. Also pay attention to the libration, sound, temperature.
4. Maintenance
4.1 When the first time using of the gear box, the gear oil must be replaced after 300 hours running. In the later operation, gear oil generally should be replaced after 2000 hours running or six month. 4.2 Should regularly check and tighten each bolt.
4.3 After 6000 hours running of gear box, should release the gear oil, and then add engine oil to the oil level. Blank runs for 1 minutes and then release the engine oil to check the backlash of gear pair and the contact spot, and then make adjustment when necessary.
4.4 After 20000 hours running of gear box, should check the gap and wear patterns of the bearings on both ends of the horizontal axis and the bearing of vertical shaft. Change them when necessary. Notes: The new bearings should be load on the shaft after heating in the oil. Lower bearing of the vertical shaft is designed to have a long service life because of the difficulty in changing, under normal use and lubrication condition, it should generally be changed after 70000 to 100000 hours.
Table 2 Thrust value

Model	Vertical axis speed (r/min)	Power HP/kW	Standard		Heavy type		Two-way
			Single downward thrust (N)				Maximum downward or upward thrust(N)
			Minimum	Maximum	Minimum	Maximum
H80	860 960 1160 1460 1760	46/34 50/37 58/43 69/51 80/60	9120 8980 8680 8000 7560	32900 31540 30700 28500 26700	6675	43200 42100 40500 36900 35600	19600 19100 18250 16910 13350
H110	860 960 1160 1460 1760	63/46 69/51 80/60 95/70 110/81	10450 9920 9790 9120 8450	32900 31540 30700 28500 26700	8000	43200 42100 40500 37800 35600	19600 19100 18250 16910 13350
H125	720	63/46	12900	37800	12460	54300	22700
	860	72/53	12000	35600	11800	51600	21400
	960	79/58	11780	34790	11560	50400	21000
	1160	90/66	11350	33400	11100	48000	20000
	1460	108/79	10680	31150	10200	44900	18700
	1760	125/92	9790	28900	9800	42300	17400

Model	Vertical axis speed (r/min)	Power HP/kW	Standard		Heavy type		Two-way
			Single downward thrust (N)				Maximum downward or upward thrust
			Minimum	Maximum	Minimum	Maximum	(N)
H150	720	75/55	13570	43600	14000	66750	26250
	860	87/64	13130	41830	13350	63630	24900
	960	95/70	12890	40120	13000	62120	24100
	1160	108/79	12240	39160	12460	59180	23600
	1460	129/95	11570	36930	11570	55620	22250
	1760	150/110	11120	35600	11120	53400	21360
H200	720	100/73.5	16000	53400	15130	72085	30000
	860	116/85	14680	48950	14240	68080	28000
	960	126/93	14100	47680	13920	65610	27000
	1160	144/106	13570	45400	13350	63630	25360
	1460	172/126.5	12680	42270	12680	60000	23580
	1760	200/147	12000	40000	12000	57850	22690
H300	720	150/110	16700	60700	16700	83660	36500
	860	174/128	15800	57850	16000	79650	34700
	960	189/139	15500	56100	15600	77210	33200
	1160	216/159	14900	54300	14900	74310	32500
	1460	258/190	14000	51200	14000	69860	30700
	1760	300/220	13350	48950	13350	66750	29400
H350	720	175/129	18900	72530	18700	89000	43600
	860	203/149	18000	68970	17800	84500	41400
	960	221/162	17700	67300	17400	82400	40300
	1160	252/185	16700	64100	16700	79200	38300
	1460	301/221	15800	60500	15600	74300	36500
	1760	350/257	15130	57850	15100	71200	34700
H425	720	213/156.5	20700	83200	21100	111200	49840
	860	246/181	19800	79650	20200	106800	47610
	960	268/197	19100	77230	19700	103700	46510
	1160	306/225	18500	73870	18700	97900	44500
	1460	366/269	17350	69860	17800	93400	41830
	1760	425/312	16900	66750	16900	89000	40050
H500	720	250/184	23360	83200	23360	111200	49840
	860	290/213	22250	79650	22470	106800	47610
	960	315/232	21870	77160	21670	103700	46510
	1160	360/265	20700	73870	20470	97900	44500
	1460	430/316	19580	69860	19580	93400	41830
	1760	500/367.5	18690	66750	18690	89000	40050
H600	720	300/220	24500	89000	24250	115700	53400
	860	348/256	23140	84500	23360	111200	50730
	960	378/278	22670	82400	22770	107100	49720
	1160	432/317	21800	79200	21580	102300	47610
	1460	516/379	20500	74300	20470	97900	44500
	1760	600/441	19580	71200	19580	93400	42720
H750	720	375/276	27600	89000	27800	115700	53400
	860	435/320	26250	84500	26700	111200	50730
	960	473/347	25300	82800	26000	107100	49720
	1160	540/397	24500	79200	24500	102300	47610
	1460	645/474	23140	74300	23580	97900	44500
	1760	750/551	22250	71200	22250	93400	42720
H1000	490	279/205	34500	108000	37500	125000	60000
	580	329/242	32000	102000	34200	120000	57800
	720	408/300	30700	97000	30900	115700	53400
	860	488/359	29340	93400	29700	111200	50730
	960	544/400	28500	91700	29200	107100	49720
	1160	660/485	27600	87300	28500	102300	47610
	1460	830/610	26250	84500	27200	97900	44500
	1760	1000/735	24000	79100	25000	93400	42720
H1360	490	680/500	35000	108000	38600	125000	60000
	580	821/604	32600	102000	35400	120000	57800
	720	1020/750	31200	97000	31800	115700	53400
	860	1217/895	29800	93400	30600	111200	50730
	960	1360/1000	29700	91700	30200	107100	49720
	1160	1643/1208	28200	87300	29500	102300	47610
	1460	2067/1520	26900	84500	28300	97900	44500
