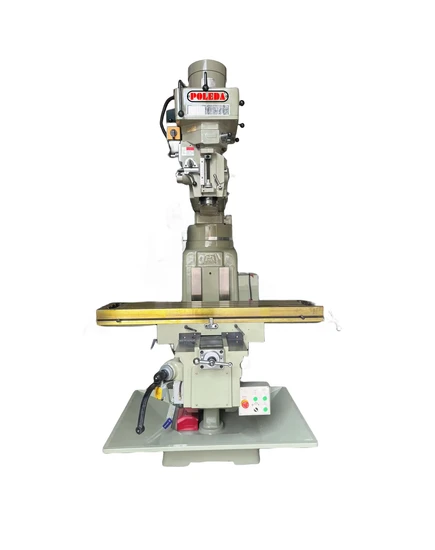

Poleda 5m/5s Universal Vertical Rocker Turret Milling Machine for Metal Cutting, China

Product Description

Introducing the POLEDA 5M Vertical Metal Turret Milling Machine - a universal milling marvel from China. As the epitome of precision and reliability, we pride ourselves on being the most proficient in the industry. Always striving for excellence, we believe there is no best, only better. Discover the unparalleled capabilities of the POLEDA 5M Vertical Metal Turret Milling Machine, designed for versatility and precision in metal cutting.
Experience the unmatched proficiency of our China Universal Milling Machine. At Dongguan Poleda Precision Machinery Co., Ltd., we are the industry's foremost experts, dedicated to superior performance.
Our commitment to perpetual improvement means that we believe in continual progress. For us, there is no best, only better.
Product Description
Product Parameters
Product Introduction
The turret milling machine, often referred to as a rocker arm milling machine, boasts a compact structure and high flexibility. Its small size allows for easy maneuverability. The milling head can rotate 90 degrees around, and 45 degrees front and back. The rocker arm offers telescopic capabilities and can rotate 360 degrees on the horizontal plane, significantly enhancing the machine's effective working range.
Composition
Constructed from high-grade cast iron, the body of our universal radial milling machine ensures high precision and longevity, thanks to artificial aging treatment. The lifting platform is designed with rectangular guide rails, providing numerous contact surfaces and enhanced rigidity. Post high-frequency treatment and fine grinding, the slide is plastinated, guaranteeing excellent motion accuracy and durability. The spindle, crafted from chrome-molybdenum alloy, features precision angular contact bearings. Post tempering and fine grinding, it delivers strong cutting force and precise operations.
Applications
The turret milling machine stands out as a lightweight, universal metal cutting solution, offering both vertical and horizontal milling functionalities. It is capable of milling flat surfaces, inclined planes, grooves, and splines of medium and small parts, making it indispensable in machining, mold making, instrumentation, and other industries.
Mechanical Characteristics of the Turret Milling Machine
The casting is made of Mihanna cast iron, ensuring excellent rigidity, stability, and no deformation.
The main spindle, constructed from chrome-molybdenum alloy, undergoes tempering, heat treatment, and grinding. Combined with precision bearings, it provides strong cutting force and exceptional accuracy.
The milling head gearbox, made of cast iron, offers superior rigidity and minimal deformation, ensuring more accurate cuts and greater durability.
The three-axis screw cap, crafted from advanced phosphorus bronze, boasts exceptional wear resistance and an extended service life.
After high wave heat treatment, the XY shaft slide demonstrates excellent wear resistance, enhancing its service life. The XY axis interface, equipped with imported wear-resistant plates, ensures ease of operation and durability.
Equipped with a state-of-the-art lubrication system, the machine ensures uniform distribution of oil points, safeguarding smooth slide operations.
The machine's weight is 100 kg higher than comparable products, enhancing its stability.
Featuring a powerful 5hp motor and a high-precision NT40 spindle, this machine is adept at handling large parts and heavy cutting tasks with ease.

Product Name	Milling machine
Product model	5M/5S/5HG
Product technical parameters
dimension	Table size	1370*305MM
journey	Left and right stroke(X)	800MM
	Front and rear stroke(Y)	380MM
	Up and down stroke(Z)	380MM
	Arm reach	600MM
	Distance from spindle end face to table surface	100-480MM
	Table bearing	350KG
Principal axis coefficient	Spindle taper	NT40
	Spindle speed	80-5440RPM(16-speed)
	Spindle travel	127MM
	Spindle horse power	5HP
Milling head	Milling head tilt Angle	45° front and back
Lead screw	X/Y/Z-axis screw diameter	Tr32/Tr32/Tr35MM
	Three-axis lead screw pitch	5MM
	Machine size (L * W * H)(MM)	1750*1700*2200MM
	Approximate machine weight	1580kgs
disposition	Accessories name	quantity
Standard parts for machine tools	1,Hand oil pump	1
	2,Work light	1
	3,Organ board + protective glue	1
	4,Lever	1
	5,Tools and toolboxes	1
	6,Operating instruction	1

Detailed Photos
Our Advantages
Certifications

FAQ
FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to providecustomers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,DrillingMachine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers 10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac

---
