120*120mm Square Mould Copper Tubes

Product Description

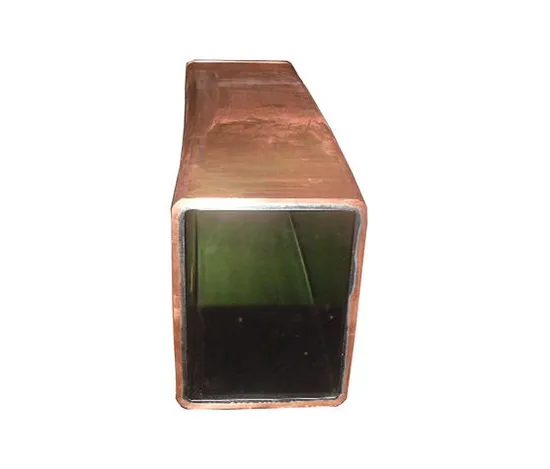

Square copper capillary mould tube
Product Description
Material: Phosphorized copper, Cu-AG, Cu-Cr-Zr
Moudld types: Square. Rectangular, Round, H types and so on.
Coatings: Chromium; Nickel and Cobalt; Ni-Co+Cr composite coating(Ni-Te, Ni-Co, Co-Ni)
Taper: Single taper, Multi-taper; Parabolic taper; Taper such as compound
Specification: Billet 60x60 or 450x450mm
Rectangular Billet: 120x340 or 365x480mm
Round Billet: Φ 90-500mm
Length: 700~1000mm
Arc radius: R3500~R16000mm
Place of Origin: China(Mainland)
Packaging Detail: Wooden Cases Detailed Photos
We assure our products is of high quality and competitive price. We sell not only items, but also our sevice attitude to cater to more and more clients. We look forward to your reply.

Speccification
Types	Size	Camber Radius	Thickness	Length
Square tubes	50x50 - 500x500	4000-17000	6-50	700-1000
Rectangular Tubes	100x340-500x650	4000-17000	6-50	700-1000
Round Tubes	110-1200	5000-17000	10-50	700-1000
H-Beam Tubes	70x50-120x520	6000-17000	12-50	780-1016
Non-standard tubes	70x50-120x520	6000-17000	12-50	780-1016

We assure our products is of high quality and competitive price. We sell not only items, but also our sevice attitude to cater to more and more clients. We look forward to your reply.

Grade
Tp2	Cu-Ag	Cu-Cr-Zr

---
