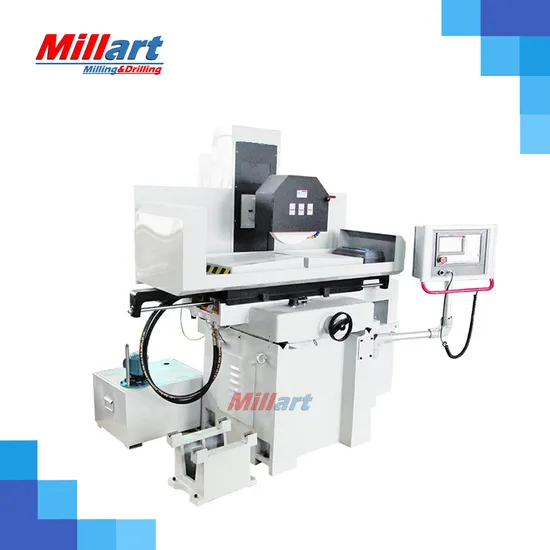

Hydraulic CNC Grinding Machine Myk1224 Surface Grinding Machine

Product Description

Product description:
1. The machine has reasonable structure , adopting cross saddle structure, good rigidity, beautiful appearance, convenient operation;
2. Transverse movement(front and rear) of work table is driven by servo motor and transmitted by precision ball screw which can ensure precision,accurate position,automatic feed according the program and fast forward and rewind functions.
3. Longitudinal movement (left and right) adopts a flat -type rail guide,hydraulic transmission and artificial precision scraping which can achieve stable running.
4. Vertical movement of the grinding head is transmitted by precision shaped ball screw and driven by servo motor which can ensure precision,accurate position,automatic feed and rapid up and down function.
5. Adopting GSK system,two-axis CNC which can program freely according to the actual situation and install Pulse hand wheel according to customer's requirement;

Technical parameter :
Specification:

Model	Unit	MYK1224
Table Size	mm	600×300
Travel of worktable	mm	600×300
T-Slot	mm	1×14
Distance from table to spindle	mm	450
Wheel size	mm	300×30×76.2
Spindle Speed	r/min	2850
Longitudinal speed of table	m/min	3-20
Cross feed amount of table	m/min	0.5-15
Vertical manual feed of head	mm	0.01-0.05
Rapid up and down speed	m/min	0-5
Spindle motor	kw	2.2
Coolant pump motor	W	40
Lift servo motor	kw	2.8
Front and rear servo motor	kw	2.8
Hydraulic motor	Kw	1.5
Working pressure	MPa	3
Tank capacity	L	80
Maximum flow rate	L/min	18
The parallelism of working surface	mm	300:0.005
Surface roughness	μm	Ra0.32
Net/Gross weight	kg	1500/1650
Magnetic chuck size	mm	600×300
Overall dimension(L×W×H)	mm	2350x1650x1800
Package dimension(L×W×H)	mm	2300x1700x2050

Standard accessories :

GSK928T CNC system

MPG

Tool box

Flange wrench

hex wrench

Balance stand

Balance frame mandrels

Balance arbor

Wheel dresser

Diamond pen

Grinding wheels and grinding wheel clamps

foundation bolt

Water tank

permanent magnetic chuck 200*400

Company information:
FAQ
Q: Are you a trading company or a physical factory?
A: We are a specialized physical factory for more than 10 years. Our machines also gained CE certificate, ISO9001 and EAC certificate.
Q: What's your main products of your company?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.

Q: Can you provide customized machine?
A: Yes, we provide customized service for customers to meet different requirements.


Q: Can we visit your factory?
A: Sure, we warmly welcome you to visit our factory at any time. The more you know about us, the more you will trust us! So you can rest assured on our quality machines and our best service.
Q: What's the Payment Terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
Q: What is your trade terms?
A: FOB, CIF ,DDP and CFR all acceptable.

---
