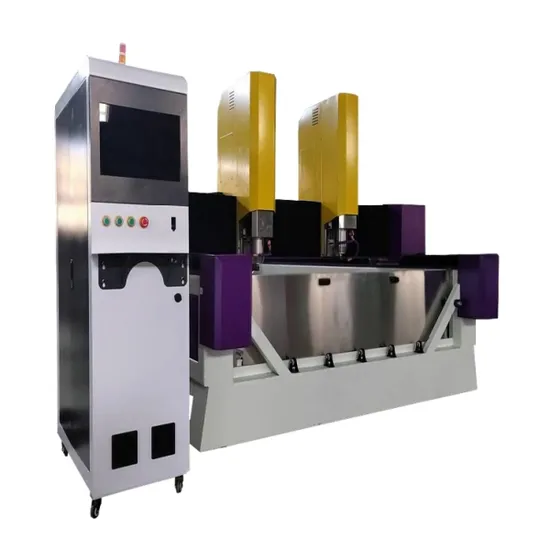

5 Axis EPS Foam Wood Stone Statue Carving 4D CNC Router Stone Working CNC Router with High Quality

Product Description

Product Description

Machine Features:1. Solid machine bed, high steel stability,high precision. long using life. 2. Y axis is with double motor driving, best configurations, stable process. 3. Adopting high precision rack transmission, high precision &speed. 4. CNC computer controlling, high efficiency auto process.saving too much time&cost,improving production efficiency.

Product Parameters

Mode		2050 four head independent heavy-duty stone carving machine	1325 heavy-duty stone carving machine	1325 economical stone carving machine
Working size		2000*2500*300mm	1300*2500*300mm	1300*2500*300mm
Frame		Welded structure
Table surface		T-slot Table
X Y Structure		Rack and Pinion Drive,Hiwin Rail Linear Bearings
Z Structure		Ball Screw
Spindle power		3.5/4.5/5.5kw
Drive motor		Stepper/Servo
Inverter		Fuling or Sunfar
Control system		Mach3 System (Optional:DSP)
Working Voltage		380V/3PH/50HZ
Command Code		G code
Software Compatibly		Artcam/Artengraver/Type3/V9/JD paint
Packing Size		Wooden case

Detailed Photos
Water-cooled spindle special for stone
Used a high-power 5.5 kw main shaft for stone, with a maximum speed of 24,000 rpm.The four bearing rotors work at the same time,with large torque, strong power, dust proof and waterproof, and long service life.Hard and soft stone and other materials can be handled in one machine.

Aluminum profile + PVC table
Large aluminum table, strong load-bearing, stable and durable, PVC table anti-skid protection aluminum table
Auto lubrication system
Full auto lubrication system can oil guide rail,ball screw and rack, prolong using life of machine
Best Inverter
Famous brand and high quality inverter in the electronic box. We also have Hpmont,Fuling,Delta brand for yours optional
Saw blade for optional
It can cut stone high precision and fast speed
2 Z axis
One is spindle, the other one is saw blade
Taiwan LNC System
Famous brand and High intelligent
Application
Packaging & Shipping
Company Profile
Samet Intelligent Manufacturing Co., Ltd.
SAMET has been deeply engaged in the manufacturing of laser intelligent equipment for 11 years. It is headquartered inJINAN, China .It is a national high-tech enterprise focusing on laser application solutions such as laser cutting, tube cutting, precision cutting, laser welding, laser marking, CNC bending, and automation equipment.
SAMET has established branches and service outlets in 30% of the countries and regions around the world to promote the process of global intelligence and has more than 200 patents and certificates. SAMET adheres to the quality route and forms 139 production and inspection procedures higher than the industry standard. With the mission of "Laser technology makes a better world", its high-quality products and after-sales service have won high praise from customers.


After Sales Service
Pre-Sales Service
1.We have many exhibitions very year, hundreds of clients was coming to our booth for further communication. 2.24-hours online Inquiry and consulting support.
3.Support sample testing .
4.We welcome you to visit our factory.
After-Sales Service 1.Training how to install the machine, training how to use the machine online. 2.Engineers available to clients' factory for training if necessary.
3.Guarantee for one year
4.24-hour technical support by email or calling
5.User-friendly English manual for machine using and maintaining 6.Free technician training for customers FAQ
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.
Q: Payment terms?
A:****** trade assurance/TT/West Union/Payple/LC/Cash and so on.
Q: I don't know how to use after i receive or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your
problems finished.We can also provide Door service if you need.
Q: I don't know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.
Q: If we need SAMET technician to train us after order,how to charge?
A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician's
business travelling ticket / room and board/ 100 USD per day.

Q:Why the machine price not include fiber source and tube parts ?
A:Different power different tube diameter price different , that's why we list the price not include fiber source and tube parts .

---
