Drip Irrigation System Agriculture Automatic WiFi Hydraulic Water Control Valves 12V Latching Solenoid Valve

Product Description

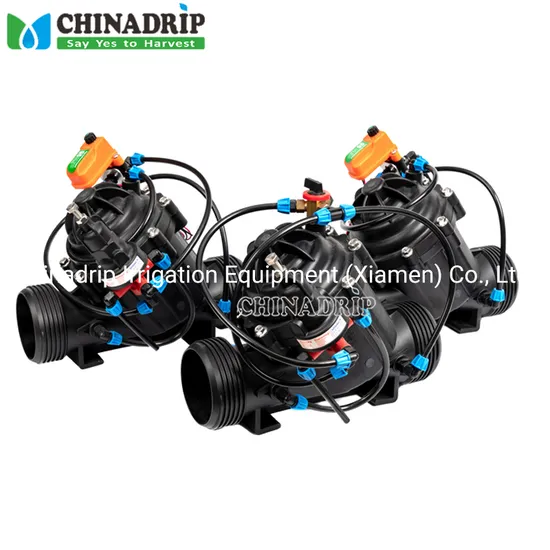

Product Description Plastic Irrigation Solenoid Valve with Hydraulic Control > Installed with main hydraulic valve and our Plus Solenoid Valve to be open/close controlling valve, distance operation by electrical signal from controller.
> Y Type Designed, Big Channel and large discharge, small head lose, Response sensitivity.
> Flexible inductive diaphragm and guide of valve core fixed well, corrosion resistance and no deformation.
> Easy to operate as hidraulic controling, save effort to close or open and convenient maintenance.
> Produced by Reinforced plastic material with excellent hydraulic and mechanical function, use for long time. Advantage of our Plus Solenoid Valve
> Inside actuator motor designed for converting electric to hydraulic command which is essential part for Hydraulic controlling valve.
> Designed with diaphragmin inside which makes controlling main part separate from water passageways for long service life.
> Width water passageways designed for short reaction of controlling valve and anti-clogging.
> Manual controlling knob for CLOSE-AUTO-OPEN operation.
Material: ·
· Body, Cover and Plug: Glass-Filled Nylon
· Diaphragm: EPDM · Seals: EPDM
· Spring: Stainless Steel
· Bolts: Stainless Steel
· Connectors: Glass-Filled Nylon Technical Data Technical: · Size: 2" (Dn50), 3" (Dn80), 4" (Dn 100).
· Electric Voltage: 24VAC(DC) / 12VDC Latching
· Connection: Threaded / Flange.
· Working Pressure : 0.35-10bar (5-145psi).
· Max pressure: 10Bar / 145Psi.
· Highest working temperature: 60 °C. Lose Chart: Details Images Packing & Delivery To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Company Profile Chinadrip Irrigation Equipment Co., Ltd We, Chinadrip Irrigation Equipment(Xiamen) co.ltd, is one of the leading professional irrigation system manufacturer and exporter in China for 16 years and we have our own factory, We provide a wide range of irrigation products to over 70 countries worldwide with good quality and pretty competitive price.

---
