CNC Gantry Double-Spindle High-Speed Drilling Machine Flange Tube Plate Sheeet Worktable Drilling Processing Equipment Heat Exchanger Heavy Size Workshop

Product Description

Product parameters

Name of parameter	Item	Value
Max.size of worktable	Length x width	4000X4000mm
Max. thickness of workpiece		250mm
worktable	Width of T-slot	28mm
Vertical ram type drilling head	Quantity	2
	Morse Taper	BT50
	Max .drilling diameter. (Normal carbon steel)	φ50mm(High-speed steel twist drilling head
		φ40mm(Carbide drill head)
	Drill depth/drill diameter	≤5(Carbide drill head ) Max depth 200mm
	Rotation speed of spindle(frequency conversion)	30-2400r/min
	Motor power of spindle	2×22kW
	Max. output torque of spindle(n≤600r/min)	360Nm
	Distance between bottom surface of spindle and worktable	260-760mm
Longitudinal movement of gantry (X axis)	Max. stroke	4000mm
	Movement speed of X axis	0-8m/min
	Servo motor power of X axis /torque	2X3kW/28.4Nm
	Positioning precision	0.08mm/full length
	Repositioning precision	0.04mm
Transverse movement of drilling head (Y axis)	Max. distance between two spindles	4000mm
	Movement speed of Y axis	0-8m/min
	Servo motor power of Y axis /torque	2x3kW/28.4Nm
	Positioning precision	0.08mm/full length
	Repositioning precision	0.04mm
Feeding movement of vertical ram (Z axis)	Stroke of Z axis	500mm
	Feeding speed of Z axis	0-5m/min
	Servo motor power of Z axis /torque	2x3kW/28.4Nm
Hydraulic system	Pressure of hydraulic pump/flux	6.5MPa /25L/min
	Motor power pf hydraulic pump	3kW
Pneumatic system	Compressed air pressure	0.5MPa
Swarf conveying and cooling	Type of swarf conveyor	Plate-chain
	Quantity of swarf conveyor	2
	Speed of swarf conveying	1m/min
	Motor power of swarf conveyor	2X0.75kW
	Cooling way	Internal + external
Automatic lubrication system	Lubrication pressure	2MPa
	Oil filling capacity	0.1mL
	Lubrication period	6-10min
Electric system	CNC System	FAGOR8055
	quantity of CNC axis	6
Total motor power		Approx.75kW
Overall dimension	Length X width X height	Approx.11.3×8.2×3.8m

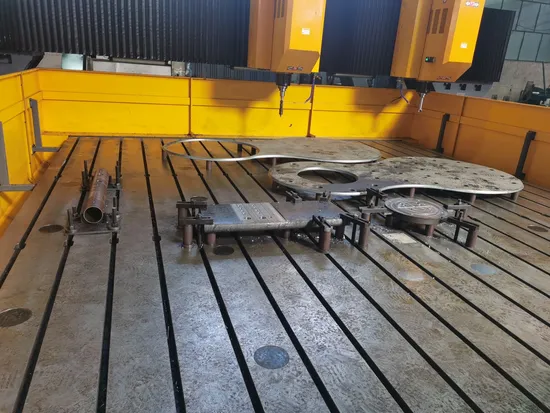

Product details
Other products
Certifications
Company information
Shandong neutron tech intelligent equipment co. LTDLocated in jinan lixia district, is a new trading company.Mainly engaged in intelligent equipment and related accessories development, sales, installation, maintenance and import and export business.Its products are widely used in iron tower, steel structure, automobile and other fields, customer groups throughout the world more than 40 countries.The company has experienced sales staff, technical support and after-sales team, to provide customers with quality, accurate products and professional, efficient service.
Packaging & Shipping
FAQ
Q1.What machines can be available in your factory?
A:We have co many kinds machines like :Lathe Machines. CNC Lathe Machines. Milling Machines.CNC Milling Machines.CNC Machining Center , Drilling Machines ,Slotting Machines and sawing machines and so on .
Q2.What is your minimum order quantity and warranty?
A:MOQ is one set, and warranty is one year.
Q3.How soon can I receive the goods?
A:Most of our products are in stock, and we will arrange shipment around a week after payment is completed.
Q4.How' s your after-sale service?
A:Out after sales support and service is second to none and we urgently respond to your queries, if parts are required they would be sent to you by international courier within 48 hrs upon registering your need.

---
