Tdp Die Custom Mold Pill Press Mould Tablet Press Die Tdp5 Punch and Die Factory Price

Product Description

This set of mould is suitable for ZP /TDP series tablet press. Range of TDP type including the new TDP 0, TDP 1.5, TDP 5, TDP 6s.Please select your size below.
We have a large number of mould in stock. We can deliver the mould immediately after payment,
You can also purchase this design in any other shape or size and for many other machines. or you can send your design to us,Get in touch to discuss your ideas!

1 full set	1 top punch + 1 bottom punch + 1 centre ring die
Model	ZP TDP
Prepare time	20 working days
Die size	custom
backside design	breakline	logo	number
Design	Round	Square	Irregular

Model	Middle die diameter	Thickness	Punch length
TDP-0	28mm	17mm	42mm
TDP-1
TDP-1.5
TDP-2
TDP-5	37mm	22mm
TDP-6	40mm

Model	Punch length	Punch diameter	Middle die diameter	Thickness
ZP	115mm	22mm	26mm	22mm

Warm tips: because it is a custom mold, and the manufacturing process of a mold is relatively complex, the cycle time is generally about 20 working days (if you want to change the mold, it is recommended to reserve in advance)

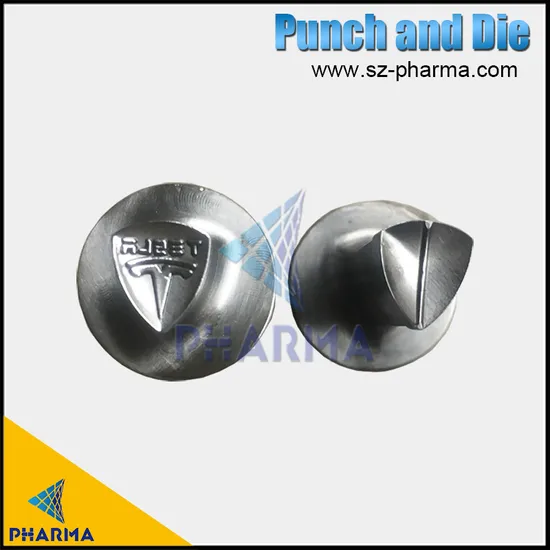

Punches and dies for small tablet press machine,TDP-0,TDP-1.5,TDP-5,TDP-6 and ZP Series.We can customize all kinds of round and special shape punches and dies. 1.We can supply all kinds of correlative spare parts,such as the mould (die set/punch tooling) for tablet press, also can stamp logo on the face.Mould (mold/die set/punch tooling) is using the newest CAD/CAM technologies and advanced heat treatment technology and scientific measuring means to made various kinds of punches and dies with high granded alloy steel dedicated for tools.

2.With dozens of years of experiences, we can make all kinds punches and dies such as round, irregular(tablets of abnormal shape),shallow concave,bevel edged detachable, single tipped, multi tipped, chrome plated or carbide ones.

3.The punches and dies produced by our company can apply to various kinds of equipment, including imported ones
What else we can do?
We can customize dies to your requests, if you need, pls leave us a message.
We owns a die manufacturing factory, we also produce the tdp DP talbet press machine by ourself.
We welcome distributors from worldwide.
GUARANTEE
-100% safe shipping .Otherwise, 100% refunds back. No problem at all with Any Countries Customs. We have our way to
make it through !
-1 year free warranty and life time free maintenance service.

---
