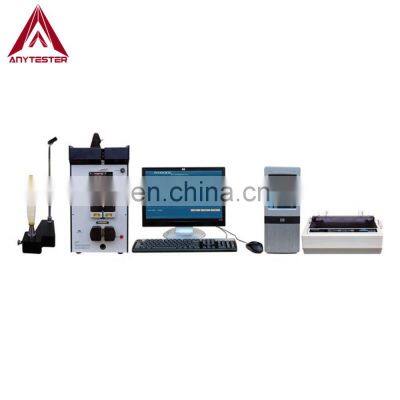

Cotton Wool Yarn Evenness and Hairiness Tester

Product Description

Product Description
Product DescriptionHY0137 Series Yarn Evenness and Hairiness Tester is used to test evenness and hairiness of yarns, roving, slivers which are spun with cotton, wool, flax, short synthetic fiber and blend fiber.SpecificationModelHY0137THY0137HY0137MMeasuring range160tex-16ktex4tex-12ktex4tex-12ktexSuitable for sample typeroving, sliversyarns, roving, sliversFunction typeEvennessEvenness & hairinessTesting speed8, 25, 50, 100m/min25, 50, 100, 200, 400m/min25, 50, 100, 200, 400, 800m/minTesting time10s ~ 99.9min settable, interval 10s10s ~ 20min settable, interval 10s10s ~ 20min settableSpectrogram range54 frequency channels1cm ~ 1472cm, 80 frequency channels1cm ~ 2000m, 170 frequency channelsCV% (U%) range0.2 ~ 100%Thin-30%, -40%, -50%, -60%Thick+35%, +50%, +70%, +100%Neps+140%, +200%, +280%, +400%CV length curveCutting length 0.01 ~ 2000mDR%Output: DR (1m, +5%), DR (1m, -5%), DR (20cm, +35%)Power supplyAC220V±10% 50HzPower consumption400WWeight65kgDetails & Features★Imported electronic speed regulating system feature with accurate rotation speed and high test precision;★Zooming the currently unevenness curve in several proportion to facilitate the analysis of cycle uneven quality;★Storing the test resulting in database to make it easy for user to carry out classified statistics and analysis with test result and enhance the quality control ability;★Statistic analyzing system can put out annals, seasonal report, monthly report, daily report of testing data for some material, and distribution diagram of index tendency;★Expert system (optional) can help user to analyze failures in the textile technology. It also can compare the yarn with USTER statistics.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1160x510x1050mmWeightApprox. 80kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us

---
