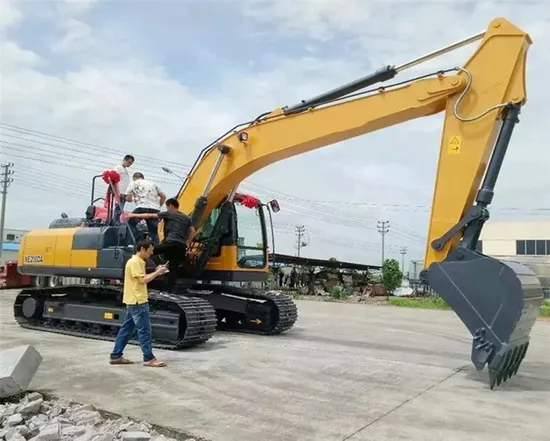

Chinese Brand New 20 Ton Hydraulic Crawler Digger Excavator Xe200da Heavy Equipment Track Excavator Construction Excavation for Sale

Product Description

XE200DA hydraulic excavator is a new generation of product that has been cultivated for many years by drawing on the professional accumulation of international advanced technology and relying advanced design and test system.

XE200DA hydraulic excavator is strong and powerful, and has features of high efficiency and low fuel consumption. It can be widely applied to farmland water conservancy, river dredging and municipal construction. It can also realize different operations such as excavating, crushing and dismantling, and has strong adaptability to working conditions.
Product Parameters

Model		Unit	XE200DA
Operating weight		Kg	21200
Bucket capacity		m³	0.93~1.1
Engine	Model	/	QSB7
	Direct injection	/	√
	Four strokes	/	√
	Water cooling	/	√
	Turbo-charging	/	√
	Air to air intercooler	/	√
	No. of cylinders	/	6
	Rated power/speed	kw/rpm	135/2050
	Maximum torque/speed	N.m	740/1250
	Displacement	L	6.7
Main performance	Travel speed(H/L)	km/h	5.3/2.9
	Swing speed	r/min	11.6
	Gradeability	°	≤35
	Ground pressure	kPa	46.9
	Bucket digging force	kN	149
	Arm digging force	kN	121
	Maximum tractive force	kN	184
Hydraulic system	Main pump	/	Two piston pumps
	Rated flow of main pump	L/min	2×209
	Main safety valve pressure	MPa	34.3/37
	Travel system pressure	MPa	34.3
	Swing system pressure	MPa	28
	Pilot system pressure	MPa	3.9
Oil Capacity	Fuel tank capacity	L	400
	Hydraulic tank capacity	L	220
	Engine oil capacity	L	24
Appearance size	Overall length	mm	9625
	Overall width	mm	2910
	Overall height	mm	3100
	Width of platform	mm	2830
	Track length	mm	4155
	Overall width of chassis	mm	2890
	Track shoe width	mm	600
	Length to center of rollers	mm	3366
	Track gauge	mm	2290
	Counterweight clearance	mm	1050
	Min. ground clearance	mm	486
	Min. tail swing radius	mm	2890
	Track height	mm	940
Working scope	Max. digging height	mm	9680
	Max. dumping height	mm	6815
	Max. digging depth	mm	6460
	Maximum depth cut for 2240mm(8 ft) level bottom	mm	6275
	Max. vertical wall digging depth	mm	5590
	Max. digging radius	mm	9790
	Min. swing radius	mm	3530

Send Inquiry The whole machine adopts 135kW low-speed and high-torque engine made by Guangxi Cummins. With customized power and fuel consumption characteristic curves, sufficient power and fuel consumption is low. The new type radiator with integral brazing technology and robot welding is equipped with a positive pressure degassing expansion tank to improve the service life of the pump, it can quickly remove the gas in the engine and the waterway, reduce rust, and meet the requirements of 50 °C environment.


The hydraulic system is continuously optimized and improved, and the coordination of the whole machine is better. It can be handy regardless of loading, squatting and leveling. The main pump corresponds to the engine setting pressure-flow curve to achieve perfect power matching and fully absorbs the output power of the engine. The operation is faster and 10% more efficient.
