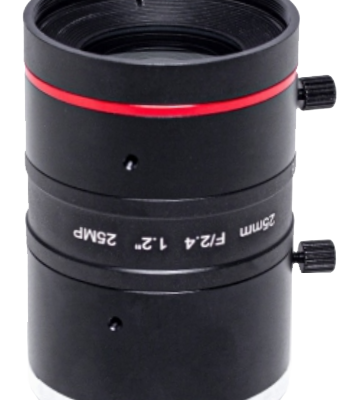

35mm 1.2" 25MP Machine Vision FA<0.015% TV Low Distortion Industrial Recognition 8K Camera Megapixel Optical Lenses Automatic CCTV Lens C Mount
High resolution : 25 megapixel cover all 8K & 4K
Large format : 1.2" size covering 1.1", 3/4, 2/3", 1/1.8", 1/2" camera
Low distortion: <0.015% TV / 0.06% Optical low distortion for machine vision
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI
Model
| 12MV3524-25M
|
Resolution
| 25 Megapixel
|
Format
| 1.2" (2.74μm)
|
Focal Length
| 35mm
|
Max image circle
| Φ19.3mm
|
Aperture (Close)
| F2.4 Manual iris
|
Angle of View (°)
| 1.2"
| 30*23*20
|
M.O.D
| 0.15m
|
Relative Illumination
| 82.1% ( WD=400mm F2.4 )
|
Distortion
| 0.015% ( TV ) ; 0.06% (Optical )
|
B.F.L
| 19.5mm , WD=800mm
|
CRA
| 6.5°
|
Size
| Φ42*59.32mm
|
Filter Size
| M40.5*P0.5-7H
|
Mount
| C
|
Weight
| 260g
|
Marks
| AT430~680nm T≥85%; 11G Element
|
Projector
| Center ≥200lp/mm;Edge Φ16 ≥160lp/mm
|
>>
