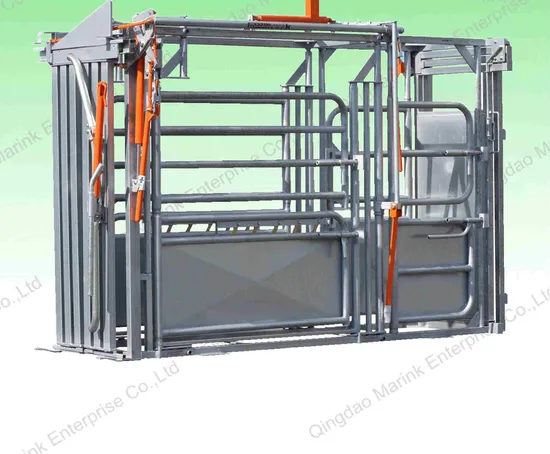

Powder Coated or HDG Cattle Squeeze Crate

Product Description

Product Description

Head bail	With auto-wrench Pre galvanized, zinc coating 100g/m2 Fully 360degree welded, 1970mm high, 850mm wide Internal width is 750mm(does not including vertical tube) All the tubes are 50x50x1.6mm square tubes Galvanized sheet, With welded caps	1 piece
Sliding gate	Sliding gate x 1 Pre hot dipped galvanized, zinc coating 100g/m2 1970mm high, 850mm wide Frame tube: 50x50x2mm Internal width is 750mm(does not including vertical tube) 6 Rail of 40x80x1.6mm with the rail evenly spaced Big Pulley: 3 sets per door A small rubber wheel in the bottom Handle:32mm round pipes Auto lock rear sliding gate Innovative silent operation With welded caps 1 flat feet Easy operation with roller sliding With 8 U lugs: 100x60x4mm	1piece
Crush panel	Cattle crush side panel Cattle panel on one side Ideal for use with two cattle panels and a sliding gate to create a budget crush Pre galvanized, zinc coating 100g/m2 Fully 360degree welded 1970mm high, 2200mm long. All the tubes are 50x50x2mm With 7 rails, 4 rails with galvanized sheet, 3 rails are not. Galvanized sheet is 1.0mm thick. With caps, lugs and pins Cattle panel gates on the other side Total 2000mm high, 3050mm long. All the tubes are 50x50x2mm Total 4 doors, with spring latched lock Long ratchet rump bar mechanism Longer door, inertnal wide is 1995mm Smaller door, internal wide is 725mm Triple top gates allowing full access along animal With caps, lugs and pins	1 set

Packaging & Shipping
Why Choose Us
We are professional on manufacturing livestock equipment, and our products are well accepted in Australia, Europe and Americ for their good quality and competitive pricing.
The Ambassador Cattle Crush is a general purpose crush with fully adjustale neck yoke, drop down rump bar, and full access gates. Ideal for horned cattle.
Suitable for all breeds from approximately 350kg up to 1000kg.
Gal MaterialMost Popular Commercial ModelProducers Large and SmallRose Joint Bearing LinkageHydra Lock Bale SqueezeFront & Rear OperationSound ProofingPower Lock LinkageOffside and Nearside Available
Details:

MARINK is well known for its punctual delivery, excellet production qualiity and above alll competitive prices. We are one of the leading producers for livestock equipments including sheep hurdles, hay baskets and related fitting parts. The details are as following:
1. Cattle Panels(Hurdles), Cattle Crush
2. 7 Rail Galvanized Interlocking hurdles
3. Farrowing Crates
4. Gates- Ashcombe Gates, Century Gate, Cattle Yard Gates, Gate Posts and etc.
5. Calf Creep Feeders, Troughs and Feeders and etc.
6. Steel Fence
7. Hay Baskets
8. Mini transporter/dumper
9. Misc-Drop Over Frames, Coupling Rod, Sliding Bolts,Hing Hook, Eye Bolts, Clamps and etc.
We are happy to produce the projects according to your drawings and the samples are available upon your request.

Certifications

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 20-25 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.We will refund the shipping fee if you make an order.
Q: What is your terms of payment ?
A:30% T/T deposit,70% T/T balance against B/L copy.

Q:Do you have all colors in stock?A:Some of the colors and designs are in stock,pls contact us to get more details.
Q:Can I have my own colors?A: Yes,we can make it as your colors.
Q:Can I have my own logo?A: Yes,we can make it as your drawing.For more designs and details,please don't hesitate to contact me by email,we will reply you soon.

---
