US$23,000.00-33,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Processing Accessory
Metal
Guide Rail
Horizontal Guide Rail
Tool Holder
Manual 4 Station
Controlling Mode
Artificial
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Max Dia. Swing Over Bed
630mm
Max Dia. Swing Over Cross Slide
340mm
Max.Length of Work-Piece
1500mm
Maximum Machining Length
1250mm
Pipe Threading Range
50-220mm
Spindle Center Height
315mm
Power of Spindle Motor
11kw
Z Axis Feed Grade /Range
32/0.095-1.4mm/R
X Axis Feed Grade /Range
32/0.042-0.7mm/R
Carriage Rapid Traverse Speed
3740mm/Min
Cross Slide RAID Traverse Speed
1870mm/Min
Tailstock Quill Travel
250mm
Tailstock Quill Diameter
100mm
Transport Package
Plywood Case with Steel Base
Production Capacity
1000/Year
Packaging & Delivery
Package Size
380.00cm * 181.00cm * 160.00cm
Package Gross Weight
5500.000kg
Product Description
Product Description

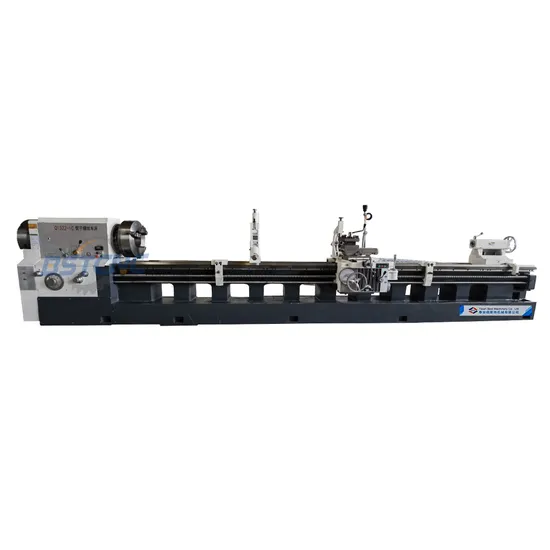

This series of pipe thread lathes is mainly used to process internal and external threads of pipes, and they can also be used as an ordinary lathe to process the outer circle, inner hole, and end face of shaft, pipe, and disk parts. This machine tool is widely used in the petroleum industry, which can process and repair parts such as drill pipes, joints, and casings. It is also used for the thread processing of various pipes and drill pipes in industries such as coal, chemical engineering, water conservancy, and geological exploration.
Product Parameters
| ITEM | UNIT | Q1322 |
| Max Dia. swing over bed | mm | 630 |
| Max Dia. swing over cross slide | mm | 340 |
| Max.length of work-piece | mm | 1500 |
| Maximum machining length | mm | 1250 |
| Pipe threading range | mm | Φ50-220 |
| Width of bed | mm | 550 |
| Spindle bore | mm | 225 |
| Spindle center height | mm | 315 |
| Power of spindle motor | KW | 11 |
| Range of spindle speed | mm | VE2 steps
30-125/125-500 |
| Z axis feed grade /range | mm/r | 32/0.095-1.4 |
| X axis feed grade /range | mm/r | 32/0.042-0.7 |
| Carriage rapid traverse speed | mm/min | 3740 |
| Cross slid raid traverse speed | mm/min | 1870 |
| Metric thread grade/range | mm | 22/1-15 |
| Inch thread grade/range | T.PI | 26/14-1 |
| Traverse of cross slide | mm | 330 |
| Max. Traverse of turret | mm | 200 |
| Tailstock quill travel | mm | 250 |
| Tailstock quill Diameter | mm | 100 |
| Tailstock quill taper | | Morse N0.5 |
| Chuck | | Φ520
4-jaw chuck |
| Overall dimensions(L*W*H) | mm | 3700×1710×1400 |
| Machine weight | T | 5 |
| Gross weight | T | 5.5 |
Standard configuration: Optional configuration:
1:With 3 jaws double manual chuck (500mm) ; 1:Steady rest ,follow rest , back steady rest;
2:With 4 station manual tool post and manual tailstock ; 2:Digital readout ;
3:With Whole casting bed ; 3:Processing length:2000mm,3000mm,4000mm;
4:Voltage 380V/220V/415V ,3 Phase;
