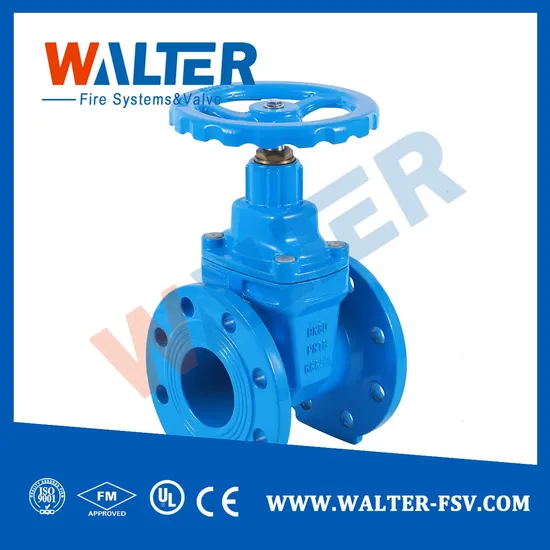

DIN F4 or BS5163 Non-Rising Stem Gate Valve

US$30.00 5 Pieces (MOQ)

Basic Info.

Model NO.

Z45X

Connection Form

Flange

Pressure

Low Pressure

Actuator

Manual

Seal Surface

Wedge Gate Valve

Thread Position of Valve Rod

Inside Gate Valve

Usage

Flow Control

Standard

Awwa

Application

Industrial Usage, Water Industrial Usage, Household Usage

Item

Awwa Gate Valve

Connection

Flange ANSI

Body

Ductile Iron

Stem

S.S 420

Seat

EPDM

Bolts

C.S or S.S

Size

2 - 12 Inch

Operator

Hand Wheel or Stem Cap

Pressure Rate

125psi/150psi/250psi

Surface

Epoxy Resin Coated

Transport Package

Plywood Case

Specification

DN50 - 600

Trademark

WALTER, OEM

Origin

Jiangsu

HS Code

8481804090

Production Capacity

2000PCS/Month

Product Description

SUZHOU WALTER -FSV COMPANY SUPPLY KINDS OF RESILIENT SEATED GATE VALVES FOR WATER TREATMENT SYSTEM, FIRE-FIGHTING SYSTEM. WITH FULL BORE DESIGN, LOW HEAD LOSS, CLOCKWISE CLOSING DIRECTION OR NON-CLOCKWISE CLOSING DIRECTION IS OPTIONAL.
AWWA C509/515 Non-rising Stem Gate Valve
1) Design Standard: BS5163, DIN3352, AWWA C509/515 or Custom made
2) Face to Face: ANSI B16.10 ; Flanges to ASME B16.42
3) Pressure Testing: Body: 500PSI & Seat to 250PSI
4) Size Range: DN 50 - DN600
5) Body & Bonnet: GGG 50 ( EN-GJS 500 -7)
6) Wedge: GGG 50 + EPDM
7) Stem: SS420
8) Bolts: Stainless Steel or Carbon Steel
9) Surface: Epoxy Resin Coated inside & outside, Min. 250μ M
10) Stem cap, Position Indicator, Extension Spindle or T Key can be Optional
Beside Gate Valves, We also could supply OEM service for butterfly valve, check valve, strainer, hydraulic control valves.
